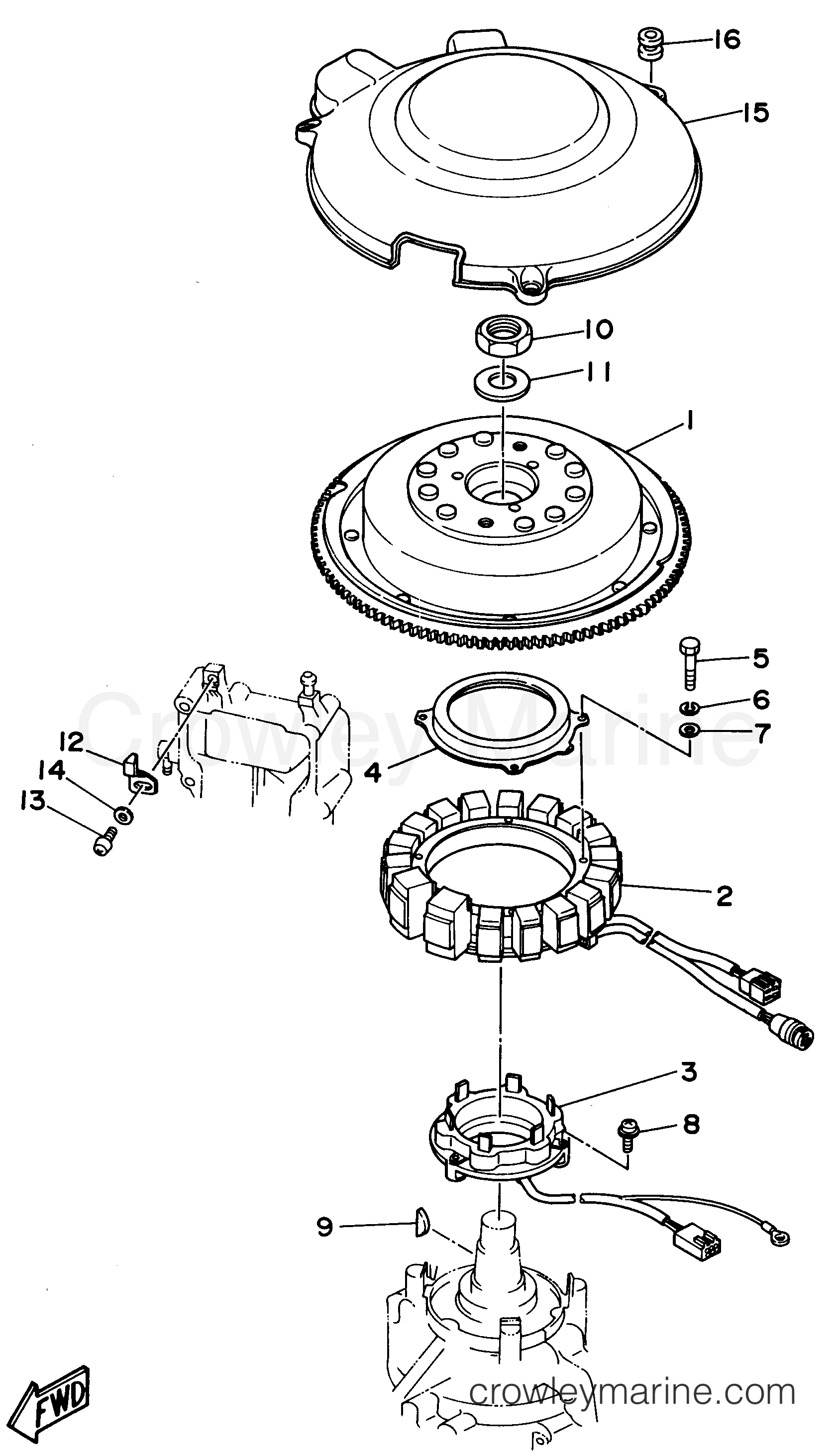

1994 Outboard 250hp - L250TXRS MAGNETO diagram
1
Yamaha Motors
Rotor Assembly61A-85550-01-00
Required: 1
ROTOR ASSEMBLY
Supersedes: 61A-85550-00-00
$1146.99
You save $202.41
2
Yamaha Motors
Stator Assembly65L-85510-10-00
Required: 1
STATOR ASSY
Supersedes: 61A-85510-02-00
$712.51
You save $125.74
3
Yamaha Motors
Pulser Coil61A-85580-01-00
Required: 1
COIL, PULSER
Supersedes: 61A-85580-00-00
$417.05
You save $73.60
$23.29
You save $4.11
In stock
5+ in stock
$2.25
You save $0.40
6
Yamaha Motors
Spring Washer92995-06100-00
Required: 4
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
7
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
8
Yamaha Motors
Screw With Washer97985-05330-00
Required: 3
SCREW, WITH WASHER
In stock
Only 4 remaining
$2.72
You save $0.48
9
Yamaha Motors
Woodruff Key90280-05049-00
Required: 1
KEY, WOODRUFF
In stock
Only 2 remaining
$7.61
You save $1.34
$12.74
You save $2.25
11
Yamaha Motors
Plate Washer90201-25M02-00
Required: 1
WASHER, PLATE
$6.54
You save $1.16
$20.02
You save $3.53
13
Yamaha Motors
Screw With Washer97985-06210-00
Required: 1
SCREW, WITH WASHER
In stock
Only 2 remaining
$2.72
You save $0.48
14
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
15
Yamaha Motors
Flywheel Cover61A-81337-01-00
Required: 1
COVER, FLYWHEEL
$36.42
You save $6.43
16
Yamaha Motors
DAMPER, IGNITION COIL663-82317-02-00
Required: 3
DAMPER, IGNITION COIL
Supersedes: 663-82317-01-00
In stock
5+ in stock
$6.08
You save $1.07
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
