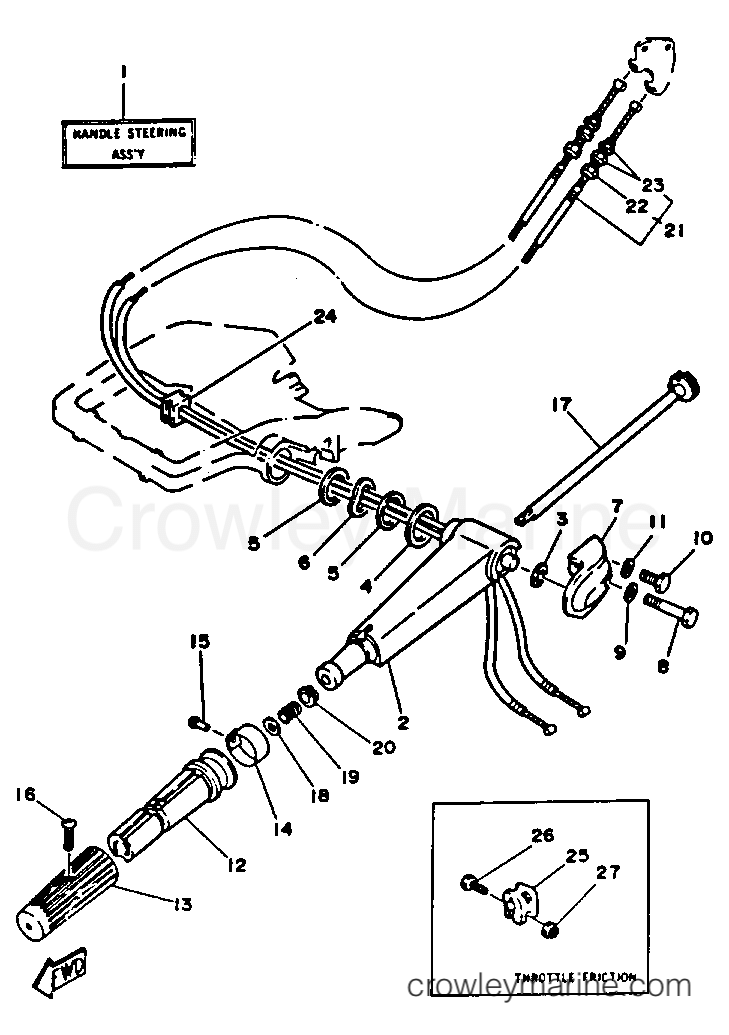

1993 Outboard 25hp - C25ELHR STEERING 1 diagram
1
Yamaha Motors
TILLER HANDLE KIT (REF. #2~24)695-W0084-10-EJ
Required: 1
TILLER HANDLE KIT (REF. #2~24)
$191.46
You save $33.79
2
Yamaha Motors
Steering Handle694-42111-00-EK
Required: 1
HANDLE, STEERING
$53.59
You save $9.46
$11.65
You save $2.05
4
Yamaha Motors
Plate Washer90202-34043-00
Required: 1
WASHER, PLATE
$11.86
You save $2.09
5
Yamaha Motors
Plate Washer90201-28M00-00
Required: 2
WASHER, PLATE
$4.33
You save $0.77
$10.37
You save $1.83
7
Yamaha Motors
Obsolete Yamaha Part689-WS421-01-EK
Required: 1
STEERING HANDLE 2
Supersedes: 689-42112-00-EK
$35.02
You save $6.18
8
Yamaha Motors
BOLT97095-06050-00
Required: 1
BOLT
Supersedes: 97395-06050-00
$1.32
You save $0.23
9
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
10
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT, HEXAGON
Supersedes: 97395-06020-00
In stock
5+ in stock
$3.82
You save $0.68
11
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
12
Yamaha Motors
Steering Handle Grip664-42119-00-00
Required: 1
GRIP, STEERING HANDLE
In stock
5+ in stock
$24.86
You save $4.39
13
Yamaha Motors
Rubber Handle6G1-42177-01-00
Required: 1
RUBBER, HANDLE
Supersedes: 6G1-42177-00-00
In stock
5+ in stock
$14.58
You save $2.57
14
Yamaha Motors
Throttle Indicator695-42137-20-00
Required: 1
INDICATOR, THROTTLE
$6.25
You save $1.10
In stock
5+ in stock
$4.72
You save $0.83
In stock
Only 5 remaining
$2.85
You save $0.50
17
Yamaha Motors
Throttle Lever689-42138-00-00
Required: 1
LEVER, THROTTLE
In stock
5+ in stock
$16.62
You save $2.93
18
Yamaha Motors
Plate Washer92990-10600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.55
You save $0.45
19
Yamaha Motors
Compression Spring90501-23215-00
Required: 1
SPRING, COMPRESSION
In stock
Only 4 remaining
$7.01
You save $1.24
In stock
5+ in stock
$4.72
You save $0.83
21
Yamaha Motors
THROTTLE 1 CABLE6J0-26311-02-00
Required: 2
CABLE, THROTTLE 1
Supersedes: 689-26311-03-00
$28.56
You save $5.04
In stock
Only 1 remaining
$8.59
You save $1.52
In stock
Only 2 remaining
$3.74
You save $0.66
$9.65
You save $1.70
25
Yamaha Motors
Steering Handle Grip Friction656-42126-01-00
Required: 1
FRICTION, STEERING HANDLE GRIP
In stock
Only 1 remaining
$12.03
You save $2.12
26
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT, HEXAGON
Supersedes: 97395-06020-00
In stock
5+ in stock
$3.82
You save $0.68
27
Yamaha Motors
Self-Locking Nut90185-06062-00
Required: 1
NUT, SELF-LOCKING
In stock
Only 1 remaining
$8.92
You save $1.57
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
