1993 Outboard 30hp - 30ESRR ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

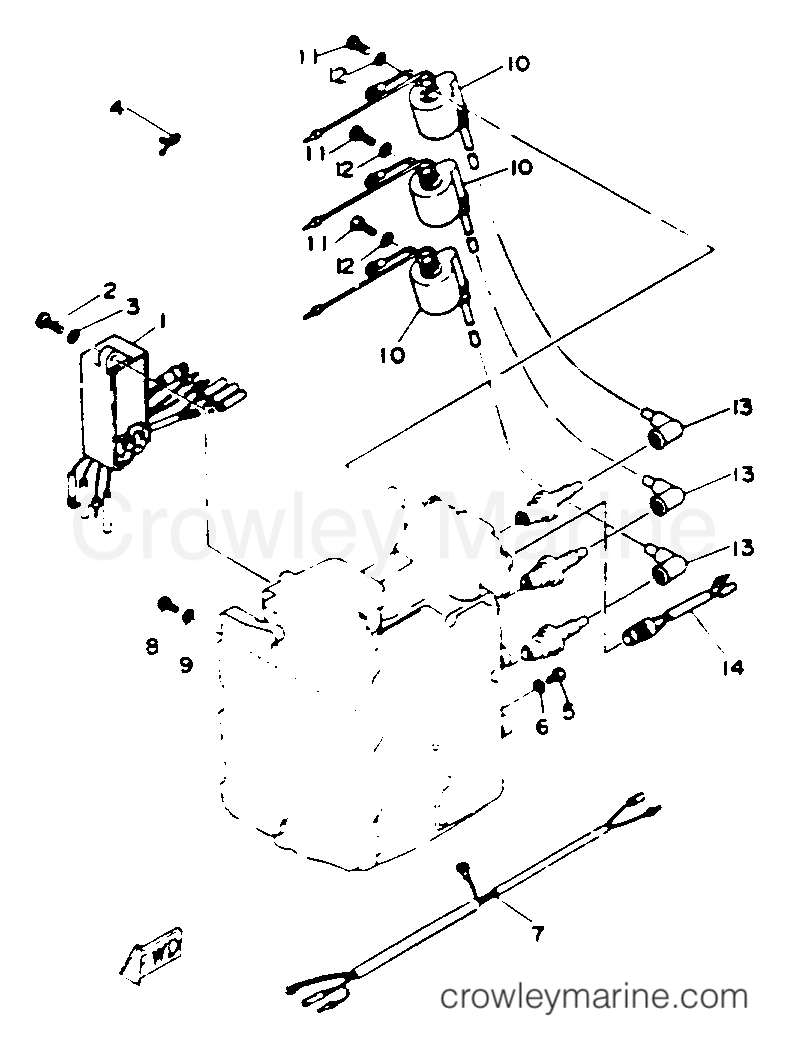

Yamaha Motors 30ESRR - ELECTRICAL 1
Change View:
C.D.I. UNIT ASSEMBLY
1
Yamaha Motors
C.D.I. UNIT ASSEMBLY6J8-85540-H1-00
Required: 1
C.D.I. UNIT ASSEMBLY
Supersedes: 6J8-85540-H0-00
Cross Ship
Leaves in 2-5 days
$494.75
$420.54
You save $74.21
More details
Bolt
2
Yamaha Motors
Bolt90101-06M27-00
Required: 2
BOLT
Supersedes: 97313-06025-00
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
BOLT
5
Yamaha Motors
BOLT97095-06012-00
Required: 1
BOLT
Supersedes: 97395-06012-00
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
Lead Wire
7
Yamaha Motors
Lead Wire6J8-82531-00-00
Required: 1
WIRE, LEAD
Cross Ship
Leaves in 2-5 days
$24.45
$20.78
You save $3.67
More details
BOLT
8
Yamaha Motors
BOLT97095-06012-00
Required: 1
BOLT
Supersedes: 97395-06012-00
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
Thermo Switch Assembly
14
Yamaha Motors
Thermo Switch Assembly689-82560-00-00
Required: 1
THERMO SWITCH ASSEMBLY
Cross Ship
Leaves in 2-5 days
$100.50
$85.42
You save $15.08
More details
