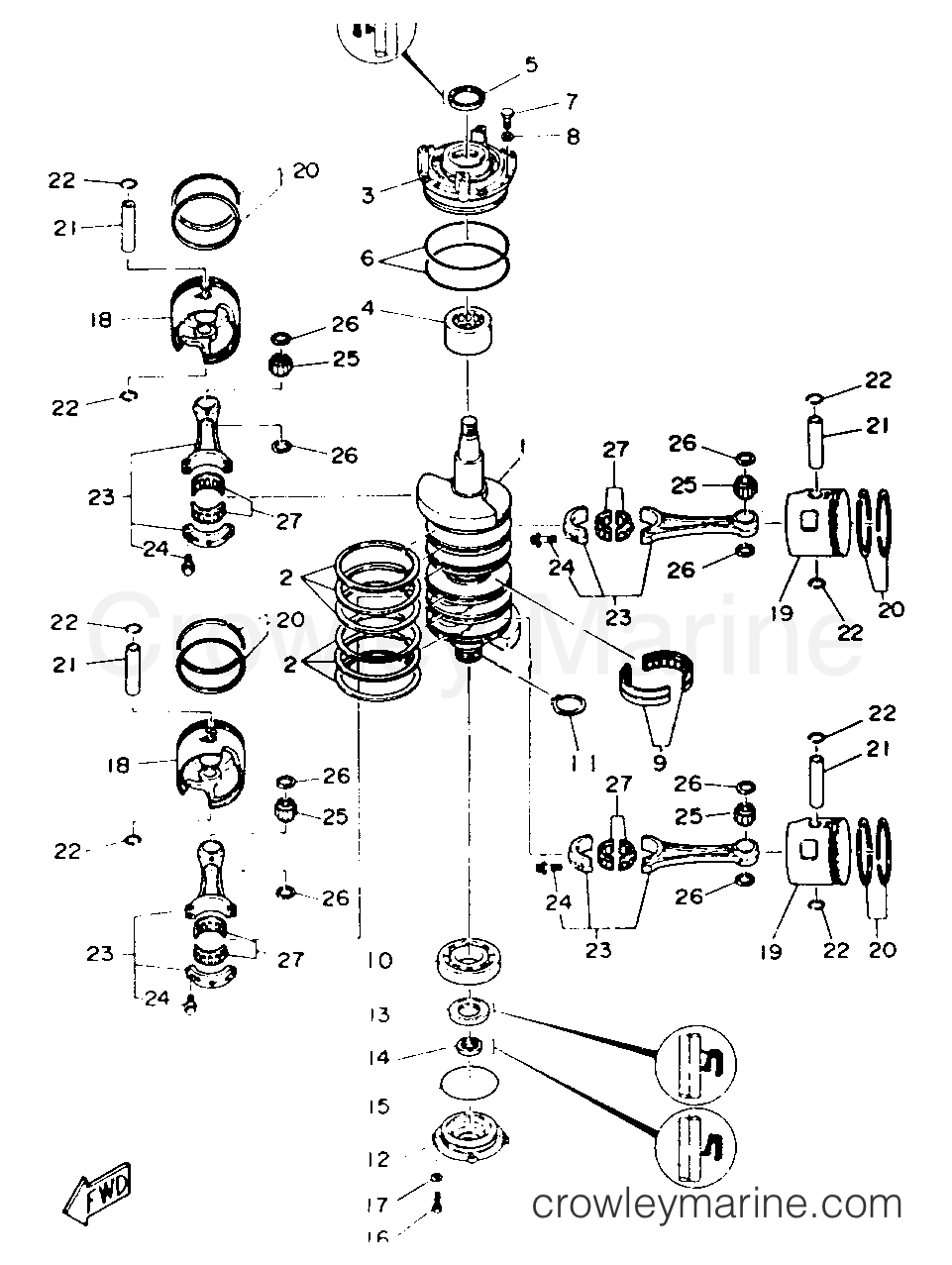

1993 Outboard 115hp - 115TXRR CRANKSHAFT PISTON diagram
1
Yamaha Motors
Crankshaft6N7-11411-01-00
Required: 1
CRANKSHAFT
Supersedes: 6N7-11411-00-00
$1102.02
You save $194.48
$17.81
You save $3.14
3
Yamaha Motors
Bearing Housing6R3-15163-00-1S
Required: 1
HOUSING, BEARING 1
Supersedes: 6R3-15163-00-94
$130.35
You save $23.00
$152.14
You save $26.85
In stock
Only 1 remaining
$16.41
You save $2.89
In stock
5+ in stock
$5.74
You save $1.01
7
Yamaha Motors
Hexagon Bolt97313-06020-00
Required: 3
BOLT, HEXAGON
$3.82
You save $0.68
8
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
9
Yamaha Motors
Bearing93310-954U1-00
Required: 1
BEARING, CYLINDRICAL
Supersedes: 93310-954V3-00
$197.19
You save $34.80
In stock
Only 1 remaining
$50.14
You save $8.85
11
Yamaha Motors
Circle Clip99009-40400-00
Required: 1
CIRCLIP
Supersedes: 93410-40M03-00
$3.57
You save $0.63
12
Yamaha Motors
Oil Seal Housing6G5-15359-00-94
Required: 1
HOUSING, OIL SEAL
$142.12
You save $25.08
In stock
Only 1 remaining
$11.43
You save $2.02
In stock
Only 1 remaining
$6.88
You save $1.21
In stock
Only 2 remaining
$9.82
You save $1.73
16
Yamaha Motors
Bolt97080-06020-00
Required: 4
BOLT, HEXAGON
Supersedes: 97395-06020-00
In stock
5+ in stock
$3.82
You save $0.68
17
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 2 remaining
$102.51
You save $18.09
18
Yamaha Motors
Piston (0.50MM O/S)6R5-11636-11-00
Required: 2
PISTON (0.50MM O/S)
$108.25
You save $19.10
19
Yamaha Motors
Piston6R5-11646-11-00
Required: 2
PISTON 2 (0.50MM O/S)
$108.25
You save $19.10
$102.51
You save $18.09
20
Yamaha Motors
Piston Ring Set (Standard)64D-11603-02-00
Required: 4
PISTON RING SET (STD)
Supersedes: 6R5-11603-00-00
In stock
Only 1 remaining
$61.54
You save $10.86
20
Yamaha Motors
Piston Ring Set (0.50Mm O/S)64D-11605-02-00
Required: 4
PISTON RING SET (0.50MM O/S)
Supersedes: 6R5-11605-00-00
In stock
Only 1 remaining
$52.57
You save $9.28
In stock
Only 2 remaining
$11.69
You save $2.06
22
Yamaha Motors
Piston Pin Clip6R5-11634-10-00
Required: 8
CLIP, PISTON PIN
In stock
5+ in stock
$5.23
You save $0.92
23
Yamaha Motors
Connecting Rod Assembly6R5-11650-10-00
Required: 4
CONNECTING ROD ASSY
$230.60
You save $40.70
24
Yamaha Motors
Bolt90109-08022-00
Required: 2
.BOLT
Supersedes: 90109-08M61-00
$6.63
You save $1.17
25
Yamaha Motors
Bearing93310-32337-00
Required: 4
BEARING
Supersedes: 93310-323V6-00
$40.79
You save $7.20
26
Yamaha Motors
Plate Washer90201-23M01-00
Required: 8
WASHER, PLATE
In stock
Only 3 remaining
$4.80
You save $0.85
$97.74
You save $17.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
