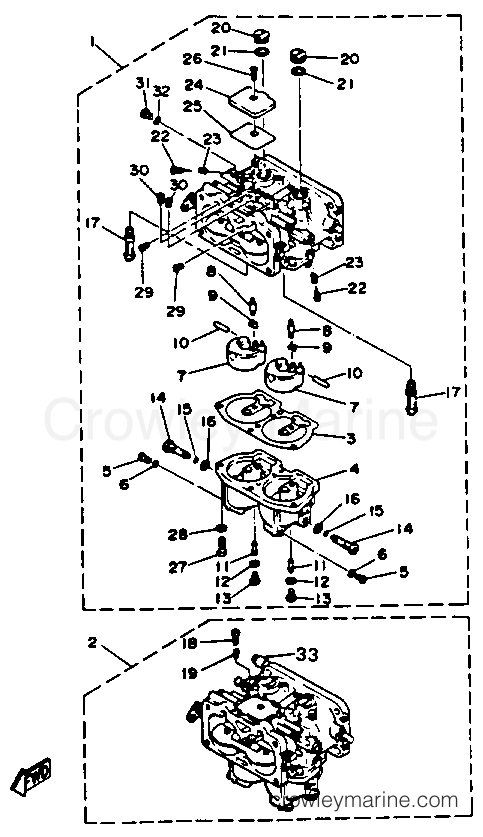

1992 Outboard 130hp - L130TXRQ CARBURETOR diagram
1
Yamaha Motors
Carburetor Assembly6L1-14301-01-00
Required: 1
CARBURETOR ASSEMBLY 1
$399.41
You save $70.49
2
Yamaha Motors
Carburetor Assembly 26L1-14302-01-00
Required: 1
CARBURETOR ASSEMBLY 2
$399.41
You save $70.49
3
Yamaha Motors
Float Chamber Gasket6E5-14384-03-00
Required: 2
.GASKET, FLOAT CHAMBER
In stock
5+ in stock
$19.60
You save $4.90
4
Yamaha Motors
Float Chamber Body6E5-14381-03-00
Required: 2
.BODY, FLOAT CHAMBER
$112.71
You save $19.89
5
Yamaha Motors
Drain Screw6E5-14383-01-00
Required: 4
.SCREW, DRAIN
$4.76
You save $1.19
In stock
5+ in stock
$2.84
You save $0.71
In stock
5+ in stock
$28.68
You save $7.17
8
Yamaha Motors
Needle Valve6E5-14546-00-00
Required: 4
.VALVE, NEEDLE
In stock
5+ in stock
$16.16
You save $4.04
$10.84
You save $1.91
In stock
Only 5 remaining
$7.69
You save $1.36
11
Yamaha Motors
Air Slow Jet (#80)6E5-1492F-40-00
Required: 4
.JET, AIR SLOW (#80)
$26.48
You save $4.67
In stock
Only 2 remaining
$4.00
You save $1.00
13
Yamaha Motors
Slow Jet Plug6E5-14394-00-00
Required: 4
.PLUG, SLOW JET
$7.06
You save $1.25
14
Yamaha Motors
Main (#180) Jet6E5-1492E-90-00
Required: 4
.JET, MAIN (#180)
$36.13
You save $6.38
In stock
Only 1 remaining
$13.20
You save $3.30
In stock
Only 2 remaining
$5.12
You save $1.28
17
Yamaha Motors
Main Nozzle6E5-1492A-00-00
Required: 4
.NOZZLE, MAIN
$35.06
You save $6.19
18
Yamaha Motors
Throttle Screw6E5-14321-00-00
Required: 1
.SCREW, THROTTLE
In stock
Only 1 remaining
$35.79
You save $6.31
19
Yamaha Motors
Throttle Spring6J8-14334-00-00
Required: 1
.SPRING, THROTTLE
In stock
Only 1 remaining
$6.54
You save $1.15
In stock
Only 4 remaining
$12.15
You save $2.14
In stock
Only 1 remaining
$4.64
You save $1.16
22
Yamaha Motors
Air Adjusting Screw6E5-14323-03-00
Required: 4
.SCREW, AIR ADJUSTING
In stock
Only 2 remaining
$19.60
You save $4.90
23
Yamaha Motors
Air Adjusting Spring6E5-14223-00-00
Required: 4
.SPRING, AIR ADJUSTING
In stock
Only 2 remaining
$7.69
You save $1.36
$14.96
You save $2.64
$5.84
You save $1.46
-50%
26
Yamaha Motors
Flat Head Screw98707-05008-00
Required: 2
.SCREW, FLAT HEAD
Supersedes: 98701-05008-00
In stock
Only 1 remaining
$3.50
You save $3.50
27
Yamaha Motors
Pan Head Screw97885-05016-00
Required: 8
.SCREW, PAN HEAD
Supersedes: 98580-05016-00
In stock
5+ in stock
$3.68
You save $0.92
28
Yamaha Motors
Spring Washer92990-05100-00
Required: 8
.WASHER, SPRING
In stock
Only 5 remaining
$0.28
You save $0.07
29
Yamaha Motors
Slow Air Bleed Jet (#60)61A-1492H-12-00
Required: 4
.JET, SLOW AIR BLEED (#60)
$25.68
You save $6.42
30
Yamaha Motors
Main Air Bleed Jet61A-1492G-44-00
Required: 4
.JET, MAIN AIR BLEED
$34.98
You save $6.17
31
Yamaha Motors
Flat Head Screw6E5-14324-00-00
Required: 2
.SCREW, FLAT HEAD
$9.69
You save $1.71
In stock
5+ in stock
$2.84
You save $0.71
$8.84
You save $2.21
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
