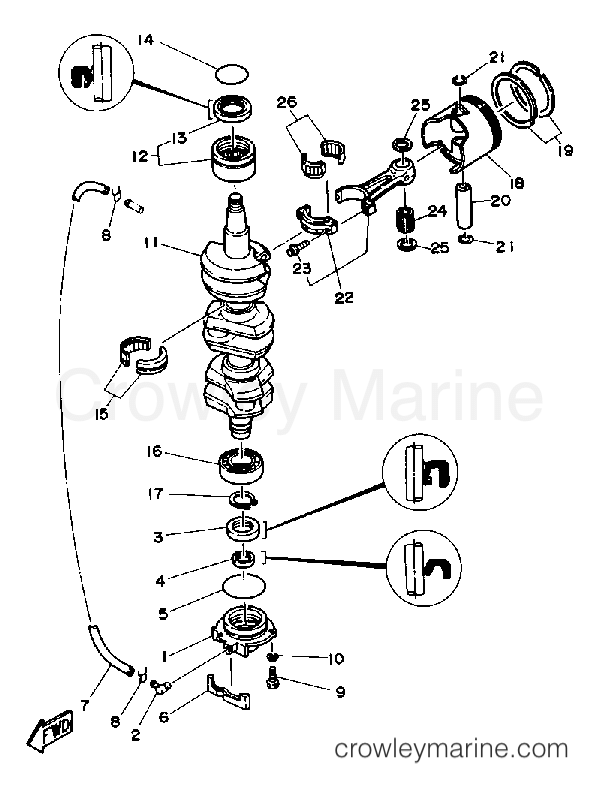

1992 Outboard 85hp - C85TLRQ CRANKSHAFT PISTON diagram
1
Yamaha Motors
Oil Seal Housing6H1-15359-01-94
Required: 1
HOUSING, OIL SEAL
$53.42
You save $9.43
2
Yamaha Motors
Check Valve Assembly688-11370-01-00
Required: 1
CHECK VALVE ASSY
Supersedes: 688-11370-00-00
In stock
Only 1 remaining
$12.76
You save $3.19
$8.88
You save $2.22
In stock
Only 2 remaining
$5.56
You save $1.39
In stock
Only 1 remaining
$8.32
You save $2.08
6
Yamaha Motors
Crankcase Seal688-15379-00-00
Required: 1
SEAL, CRANKCASE
$13.00
You save $3.25
$19.54
You save $3.45
In stock
Only 3 remaining
$2.56
You save $0.64
9
Yamaha Motors
Bolt97080-06020-00
Required: 3
BOLT, HEXAGON
Supersedes: 97395-06020-00
In stock
5+ in stock
$3.60
You save $0.90
10
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
$857.10
You save $151.25
$93.95
You save $17.04
13
Yamaha Motors
SD-TYPE OIL SEAL93102-36351-00
Required: 1
.OIL SEAL
Supersedes: 93102-36M24-00
In stock
Only 1 remaining
$8.56
You save $2.14
In stock
Only 1 remaining
$7.72
You save $1.93
$113.95
You save $29.04
$73.09
You save $12.90
17
Yamaha Motors
S -type Circlip93410-32075-00
Required: 1
CIRCLIP
Supersedes: 93410-32M00-00
In stock
5+ in stock
$8.92
You save $1.57
18
Yamaha Motors
Piston Std688-11631-02-95
Required: 3
PISTON STD (STD)
Supersedes: 688-11631-02-96
$132.13
You save $23.32
18
Yamaha Motors
Piston688-11636-02-00
Required: 3
PISTON 2 O/S 0.50 (0.50MM O/S)
$132.13
You save $23.32
19
Yamaha Motors
Piston Ring Set688-11610-02-00
Required: 3
PISTON RINGSET STD (STD)
$46.07
You save $8.13
19
Yamaha Motors
Piston Ring Set688-11610-22-00
Required: 3
PISTON RINGSET 2ND (2ND O/S)
$46.07
You save $8.13
$17.55
You save $3.10
21
Yamaha Motors
Piston Pin Clip688-11634-00-00
Required: 6
CLIP, PISTON PIN
$4.00
You save $1.00
22
Yamaha Motors
Connecting Rod Assembly688-11650-03-00
Required: 3
CONNECTING ROD ASSY
$214.95
You save $38.25
23
Yamaha Motors
Bolt90109-08022-00
Required: 2
.BOLT
Supersedes: 90109-08M61-00
$6.24
You save $1.56
In stock
Only 1 remaining
$3.04
You save $0.76
25
Yamaha Motors
Plate Washer90201-20417-00
Required: 6
WASHER, PLATE
In stock
Only 2 remaining
$5.72
You save $1.43
$93.95
You save $23.04
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
