All diagrams for this model

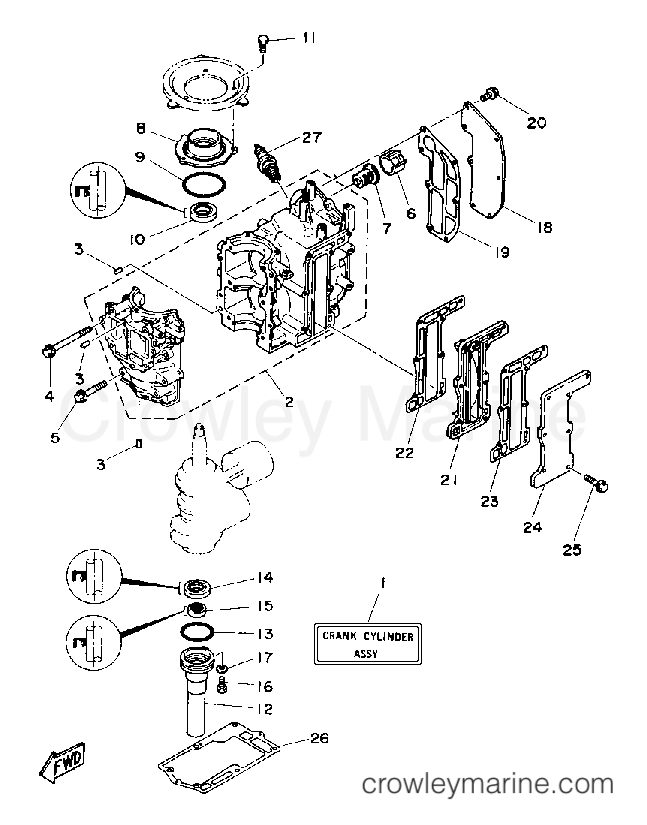

1991 Outboard 8hp - 8MLHP CRANKCASE CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 8MLHP - CRANKCASE CYLINDER
Change View:
Crank Cylinder Assembly
1
Yamaha Motors
Crank Cylinder Assembly6GH-W0090-00-1S
Required: 1
CRANK-CYLINDER ASSEMBLY
Supersedes: 6G1-W0090-03-EK
Cross Ship
Leaves in 2-5 days
$2366.80
$2011.78
You save $355.02
More details
Crankcase Assembly
2
Yamaha Motors
Crankcase Assembly6N0-E5100-00-1S
Required: 1
CRANKCASE ASSEMBLY
Supersedes: 6G1-15100-00-94
Cross Ship
Leaves in 2-5 days
$639.10
$543.24
You save $95.87
More details
Flange Bolt
4
Yamaha Motors
Flange Bolt90105-06M26-00
Required: 6
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
Oil Seal Housing
8
Yamaha Motors
Oil Seal Housing6G1-15359-01-94
Required: 1
HOUSING, OIL SEAL
Cross Ship
Leaves in 2-5 days
$33.90
$28.82
You save $5.09
More details
O-Ring
9
Yamaha Motors
O-Ring93210-54M54-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$6.85
$5.82
You save $1.03
More details
Oil Seal
10
Yamaha Motors
Oil Seal93102-20M25-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$7.15
$6.08
You save $1.07
More details
BOLT, HEXAGON DEEP RECESS
11
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 3
BOLT, HEXAGON
Supersedes: 97313-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Oil Seal Housing
12
Yamaha Motors
Oil Seal Housing 6G1-15396-02-5B
Required: 1
HOUSING, OIL SEAL
Supersedes: 6G1-15396-01-5B
Cross Ship
Leaves in 2-5 days
$49.85
$42.37
You save $7.48
More details
BOLT, HEXAGON DEEP RECESS
16
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 1
BOLT, HEX
Supersedes: 97395-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
CYLINDER HEAD COVER
18
Yamaha Motors
CYLINDER HEAD COVER6GH-11191-00-1S
Required: 1
COVER, CYLINDER HEAD 1
Supersedes: 6G1-11191-01-9M
Cross Ship
Leaves in 2-5 days
$54.30
$46.16
You save $8.15
More details
Flange Bolt
20
Yamaha Motors
Flange Bolt90105-06M14-00
Required: 7
BOLT FLANGE
Cross Ship
Leaves in 2-5 days
$1.49
$1.27
You save $0.22
More details
Exhaust Inner Cover
21
Yamaha Motors
Exhaust Inner Cover6N0-G1111-00-1S
Required: 1
INNER COVER, EXHAUST
Supersedes: 6G1-41111-01-9M
Cross Ship
Leaves in 2-5 days
$59.15
$50.28
You save $8.87
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
