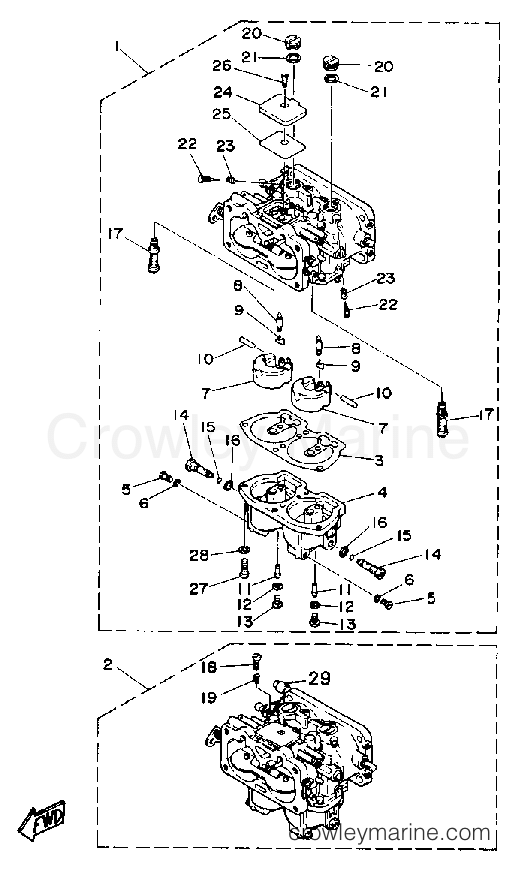

1990 Outboard 130hp - L130ETXDA CARBURETOR diagram
1
Yamaha Motors
Carburetor Assembly6L1-14301-01-00
Required: 1
CARBURETOR ASSEMBLY 1
$399.41
You save $70.49
2
Yamaha Motors
Carburetor Assembly 26L1-14302-01-00
Required: 1
CARBURETOR ASSEMBLY 2
$399.41
You save $70.49
3
Yamaha Motors
Float Chamber Gasket6E5-14384-03-00
Required: 2
.GASKET, FLOAT CHAMBER
In stock
5+ in stock
$20.82
You save $3.68
4
Yamaha Motors
Float Chamber Body6E5-14381-03-00
Required: 2
.BODY, FLOAT CHAMBER
$112.71
You save $19.89
5
Yamaha Motors
Drain Screw6E5-14383-01-00
Required: 4
.SCREW, DRAIN
$5.06
You save $0.89
In stock
5+ in stock
$3.02
You save $0.53
In stock
5+ in stock
$30.47
You save $5.38
8
Yamaha Motors
Needle Valve6E5-14546-00-00
Required: 4
.VALVE, NEEDLE
In stock
5+ in stock
$17.17
You save $3.03
$10.84
You save $1.91
In stock
Only 5 remaining
$7.69
You save $1.36
11
Yamaha Motors
Pilot Jet (#82)6E5-1492F-41-00
Required: 4
.JET, PILOT (#82)
$22.82
You save $4.03
In stock
Only 2 remaining
$4.25
You save $0.75
13
Yamaha Motors
Slow Jet Plug6E5-14394-00-00
Required: 4
.PLUG, SLOW JET
$7.06
You save $1.25
14
Yamaha Motors
Main (#180) Jet6E5-1492E-90-00
Required: 4
.JET, MAIN (#180)
$36.13
You save $6.38
In stock
Only 1 remaining
$14.03
You save $2.47
In stock
Only 2 remaining
$5.44
You save $0.96
17
Yamaha Motors
Main Nozzle6E5-1492A-00-00
Required: 4
.NOZZLE, MAIN
$35.06
You save $6.19
18
Yamaha Motors
Throttle Screw6E5-14321-00-00
Required: 1
.SCREW, THROTTLE
In stock
Only 1 remaining
$35.79
You save $6.31
19
Yamaha Motors
Throttle Spring6J8-14334-00-00
Required: 1
.SPRING, THROTTLE
In stock
Only 1 remaining
$6.54
You save $1.16
In stock
Only 4 remaining
$12.15
You save $2.14
In stock
Only 1 remaining
$4.93
You save $0.87
22
Yamaha Motors
Air Adjusting Screw6E5-14323-03-00
Required: 4
.SCREW, AIR ADJUSTING
In stock
Only 2 remaining
$20.82
You save $3.68
23
Yamaha Motors
Air Adjusting Spring6E5-14223-00-00
Required: 4
.SPRING, AIR ADJUSTING
In stock
Only 2 remaining
$7.69
You save $1.36
$21.50
You save $3.80
$6.21
You save $1.10
26
Yamaha Motors
Flat Head Screw98707-05008-00
Required: 2
.SCREW, FLAT HEAD
Supersedes: 98701-05008-00
In stock
Only 1 remaining
$5.94
You save $1.05
27
Yamaha Motors
Pan Head Screw97885-05016-00
Required: 8
.SCREW, PAN HEAD
Supersedes: 98580-05016-00
In stock
5+ in stock
$3.91
You save $0.69
28
Yamaha Motors
Spring Washer92990-05100-00
Required: 8
.WASHER, SPRING
In stock
Only 5 remaining
$0.30
You save $0.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
