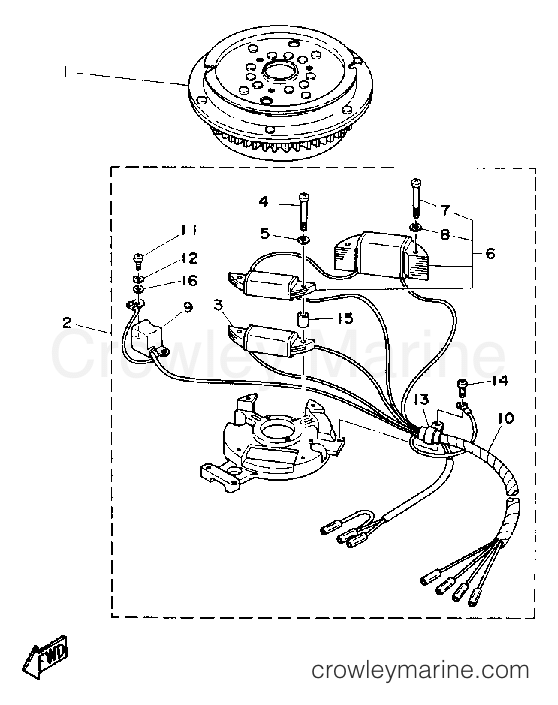

1990 Outboard 9.9hp - FT9.9ELD CDI MAGNETO (FT9.9E) diagram
1
Yamaha Motors
ROTOR ASSEMBLY.6G8-85550-K1-00
Required: 1
ROTOR ASSEMBLY.
$523.00
You save $92.29
2
Yamaha Motors
Base Assembly6G8-85560-J1-00
Required: 1
BASE ASSEMBLY
Supersedes: 6G8-85560-J0-00
$521.86
You save $92.09
3
Yamaha Motors
Charge Coil6G8-85520-00-00
Required: 1
.COIL, CHARGE
$90.91
You save $16.04
4
Yamaha Motors
Pan Head Screw98507-05040-00
Required: 2
.SCREW, PAN HEAD
Supersedes: 98501-05040-00
$8.07
You save $1.42
5
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
.WASHER, SPRING
In stock
Only 5 remaining
$0.28
You save $0.07
6
Yamaha Motors
Lighting Coil Assembly6G8-81303-J0-00
Required: 1
.LIGHTING COIL ASSEMBLY
$117.51
You save $20.74
7
Yamaha Motors
Pan Head Screw98507-05040-00
Required: 2
..SCREW, PAN HEAD
Supersedes: 98501-05040-00
$8.07
You save $1.42
8
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
..WASHER, SPRING
In stock
Only 5 remaining
$0.28
You save $0.07
$132.73
You save $23.42
10
Yamaha Motors
Lead Wire Assembly6G8-85515-00-00
Required: 1
.LEAD WIRE ASSEMBLY
$53.93
You save $9.52
11
Yamaha Motors
Screw98580-05012-00
Required: 2
.SCREW, PAN HEAD
In stock
Only 1 remaining
$6.39
You save $1.60
12
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
.WASHER, SPRING
In stock
Only 5 remaining
$0.28
You save $0.07
$5.09
You save $0.90
14
Yamaha Motors
.SCREW, PAN HEAD97802-04008-00
Required: 2
.SCREW, PAN HEAD
Supersedes: 98580-04008-00
In stock
Only 2 remaining
$1.60
You save $0.40
$17.03
You save $3.00
16
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
.WASHER, PLATE
In stock
Only 3 remaining
$0.64
You save $0.16
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
