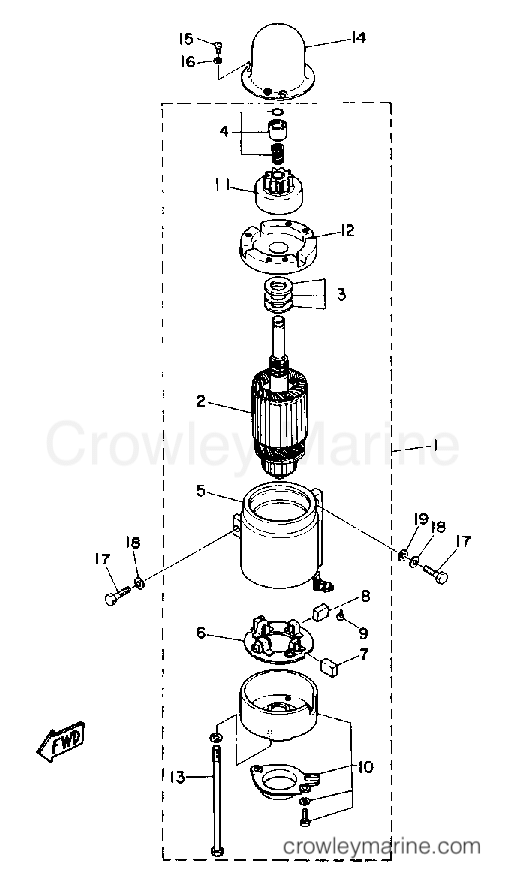

1990 Outboard 85hp - CV85ELD STARTING MOTOR diagram

1
Yamaha Motors
STARTING MOTOR ASSY688-81800-13-00
Required: 1
STARTING MOTOR ASSY
Supersedes: 688-81800-12-00
$903.42
You save $159.43

2
Yamaha Motors
ARMATURE ASSEMBLY676-81850-A9-00
Required: 1
.ARMATURE ASSEMBLY
$345.65
You save $61.00
$15.94
You save $2.81

4
Yamaha Motors
Pinion Stopper Set676-81857-10-00
Required: 1
.PINION STOPPER SET
$13.18
You save $2.33
$299.80
You save $52.91

6
Yamaha Motors
Brush Holder Assembly663-81840-11-00
Required: 1
.BRUSH HOLDER ASSY
$80.71
You save $14.24
$17.43
You save $3.07
$17.43
You save $3.07

9
Yamaha Motors
Brush Spring663-81813-10-00
Required: 4
.SPRING, BRUSH
$7.69
You save $1.36

10
Yamaha Motors
Rear Bracket Assembly663-81820-11-00
Required: 1
.REAR BRACKET ASSEMBLY
$63.11
You save $11.14
$204.47
You save $36.08

12
Yamaha Motors
Front Bracket Assembly688-81830-11-00
Required: 1
.FRONT BRACKET ASSY
$111.39
You save $19.66
In stock
Only 1 remaining
$8.49
You save $1.50
$30.86
You save $5.45

15
Yamaha Motors
Screw98580-04010-00
Required: 3
.SCREW, PAN HEAD
In stock
Only 2 remaining
$8.07
You save $1.42
In stock
Only 1 remaining
$1.70
You save $0.30

17
Yamaha Motors
Bolt97013-08030-00
Required: 3
BOLT
Supersedes: 97313-08030-00
$3.23
You save $0.57

18
Yamaha Motors
Spring Washer92990-08100-00
Required: 3
WASHER, SPRING
$4.76
You save $0.84

19
Yamaha Motors
Plate Washer92990-08600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.29
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
