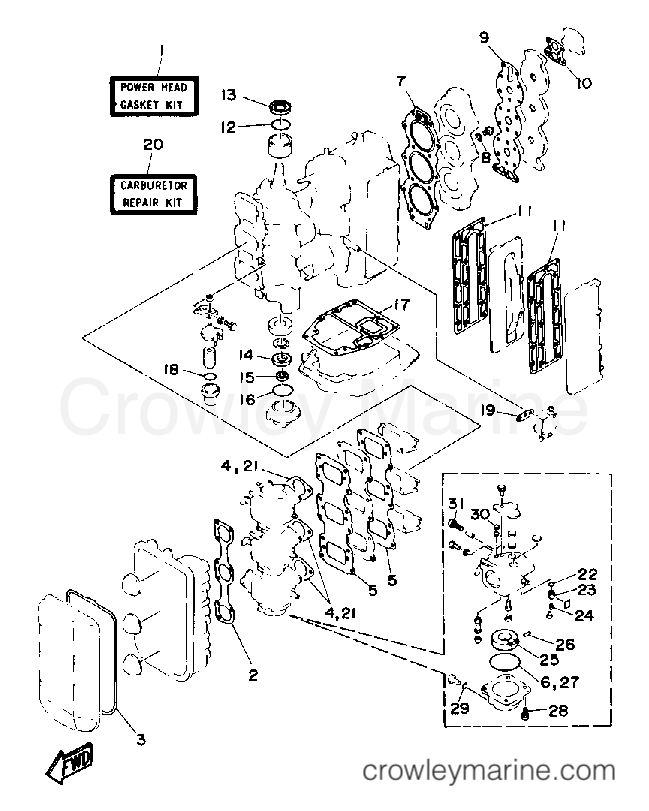

1990 Outboard 85hp - CV85ELD REPAIR KIT 1 diagram
1
Yamaha Motors
Obsolete Yamaha Part688-W0001-A0-00
Required: 1
GASKET KIT
Supersedes: 688-W0001-00-00
$221.55
You save $39.10
2
Yamaha Motors
Gasket688-14483-A0-00
Required: 1
.GASKET
Supersedes: 688-14483-00-00
$5.35
You save $0.95
3
Yamaha Motors
Air Cleaner Gasket688-14416-00-00
Required: 1
.GASKET, AIR CLEANER
In stock
Only 1 remaining
$15.17
You save $2.68
4
Yamaha Motors
Gasket688-14198-A2-00
Required: 3
.GASKET
Supersedes: 688-14198-00-00
$5.61
You save $0.99
5
Yamaha Motors
Valve Seat Gasket688-13621-A1-00
Required: 2
.GASKET, VALVE SEAT
Supersedes: 688-13621-00-00
In stock
5+ in stock
$5.61
You save $0.99
6
Yamaha Motors
Float Chamber Gasket676-14984-00-00
Required: 3
.GASKET, FLOAT CHAMBER
In stock
5+ in stock
$12.54
You save $2.21
7
Yamaha Motors
Cylinder Head Gasket688-11181-A2-00
Required: 1
GASKET, CYLINDER HEAD 1
Supersedes: 688-11181-A0-00
In stock
5+ in stock
$50.79
You save $8.96
In stock
Only 2 remaining
$2.55
You save $0.45
9
Yamaha Motors
Head Cover Gasket688-11193-A1-00
Required: 1
.GASKET, HEAD COVER 1
In stock
5+ in stock
$17.98
You save $3.17
10
Yamaha Motors
Cover Gasket688-12414-A1-00
Required: 1
.GASKET, COVER
In stock
5+ in stock
$4.97
You save $0.88
11
Yamaha Motors
Exhaust Inner Cover Gasket688-41112-A0-00
Required: 2
.GASKET, EXHAUST INNER COVER
In stock
5+ in stock
$7.73
You save $1.37
In stock
Only 1 remaining
$8.20
You save $1.45
13
Yamaha Motors
SD-TYPE OIL SEAL93102-36351-00
Required: 1
.OIL SEAL
Supersedes: 93102-36M24-00
In stock
Only 1 remaining
$9.10
You save $1.61
$9.44
You save $1.67
In stock
Only 2 remaining
$5.91
You save $1.04
In stock
Only 1 remaining
$8.84
You save $1.56
17
Yamaha Motors
Upper Casing Gasket688-45113-A0-00
Required: 1
.GASKET, UPPER CASING
In stock
5+ in stock
$10.12
You save $1.79
In stock
5+ in stock
$5.23
You save $0.92
19
Yamaha Motors
Fuel Pump Gasket650-24431-A0-00
Required: 1
.GASKET, FUEL PUMP 1
In stock
5+ in stock
$2.98
You save $0.52
20
Yamaha Motors
CARBURETOR REPAIR KIT6H1-W0093-02-00
Required: 1
CARBURETOR REPAIR KIT
Supersedes: 6H1-W0093-01-00
In stock
Only 3 remaining
$165.41
You save $29.19
21
Yamaha Motors
Gasket688-14198-A2-00
Required: 3
.GASKET
Supersedes: 688-14198-00-00
$5.61
You save $0.99
In stock
5+ in stock
$5.70
You save $1.00
23
Yamaha Motors
Needle Valve Assembly692-14590-01-00
Required: 3
.VALVE SEAT
Supersedes: 692-14590-00-00
$29.50
You save $5.21
In stock
Only 3 remaining
$6.88
You save $1.21
$22.23
You save $3.92
26
Yamaha Motors
Float Arm Pin688-14548-00-00
Required: 3
.PIN, FLOAT ARM
$5.31
You save $0.94
27
Yamaha Motors
Float Chamber Gasket676-14984-00-00
Required: 3
.GASKET, FLOAT CHAMBER
In stock
5+ in stock
$12.54
You save $2.21
28
Yamaha Motors
Screw With Washer97980-04114-00
Required: 3
.SCREW, WITH WASHER
In stock
5+ in stock
$4.55
You save $0.80
In stock
5+ in stock
$8.07
You save $1.42
$5.70
You save $1.00
31
Yamaha Motors
Pilot Screw692-14923-00-00
Required: 3
.SCREW, PILOT
$23.29
You save $4.11
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
