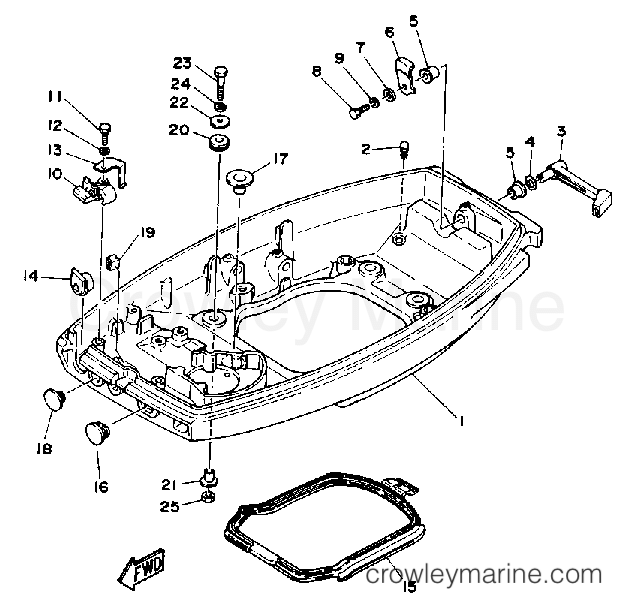

1990 Outboard 40hp - CV40ELD BOTTOM COWLING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CV40ELD - BOTTOM COWLING
Change View:
Bottom Cowling
1
Yamaha Motors
Bottom Cowling6A0-42711-02-EJ
Required: 1
BOTTOM COWLING
Cross Ship
Leaves in 2-5 days
$337.65
$287.00
You save $50.65
More details
Joint Pipe
2
Yamaha Motors
Joint Pipe676-24376-01-00
Required: 1
PIPE, JOINT 1
Cross Ship
Leaves in 2-5 days
$4.45
$3.78
You save $0.67
More details
Obsolete Yamaha Part
3
Yamaha Motors
Obsolete Yamaha Part676-42815-01-EJ
Required: 1
LEVER, CLAMP 1
Supersedes: 676-42815-00-EJ
Cross Ship
Leaves in 2-5 days
$39.20
$33.32
You save $5.88
More details
Clamp Lever
6
Yamaha Motors
Clamp Lever682-42816-00-00
Required: 1
LEVER, CLAMP
Cross Ship
Leaves in 2-5 days
$13.00
$11.05
You save $1.95
More details
Fitting Plate
10
Yamaha Motors
Fitting Plate6A0-42738-01-94
Required: 1
PLATE, FITTING
Supersedes: 6A0-42738-00-94
Cross Ship
Leaves in 2-5 days
$21.75
$18.49
You save $3.26
More details
Clamp
13
Yamaha Motors
Clamp90465-06M15-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$18.80
$15.98
You save $2.82
More details
Grommet
14
Yamaha Motors
Grommet6A0-42726-00-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$19.70
$16.74
You save $2.96
More details
Rubber (Seal 1)
15
Yamaha Motors
Rubber (Seal 1)6E9-42716-00-00
Required: 1
RUBBER, SEAL 1
Cross Ship
Leaves in 2-5 days
$49.75
$42.29
You save $7.46
More details
Grommet
16
Yamaha Motors
Grommet676-42726-00-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$8.85
$7.52
You save $1.33
More details
GROMMET, WATER TUBE (UPPER)
17
Yamaha Motors
GROMMET, WATER TUBE (UPPER)676-42727-01-00
Required: 1
GROMMET
Supersedes: 676-42727-00-00
Cross Ship
Leaves in 2-5 days
$8.25
$7.01
You save $1.24
More details
Grommet
18
Yamaha Motors
Grommet90480-17165-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$10.10
$8.59
You save $1.52
More details
Grommet
19
Yamaha Motors
Grommet676-42724-40-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$9.30
$7.91
You save $1.40
More details
Plate Washer
22
Yamaha Motors
Plate Washer90201-06416-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
