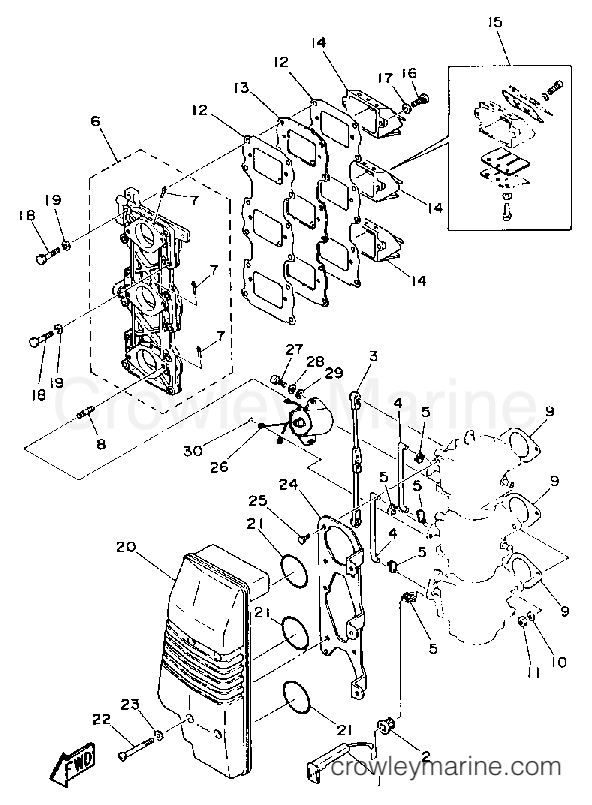

1990 Outboard 90hp - 90ETLD-JD INTAKE diagram
1
Yamaha Motors
Choke Rod 1692-41256-01-00
Required: 1
ROD, CHOKE 1
Supersedes: 692-41256-00-00
$21.80
You save $3.85
In stock
Only 4 remaining
$9.27
You save $1.63
3
Yamaha Motors
Accelerator Lever Rod688-41217-01-00
Required: 1
ROD, ACCEL. LEVER
In stock
5+ in stock
$16.06
You save $2.84
$5.74
You save $1.01
5
Yamaha Motors
Choke Lever Joint661-41262-02-00
Required: 5
JOINT, CHOKE LEVER
In stock
5+ in stock
$11.35
You save $2.00
$68.30
You save $12.05
$6.08
You save $1.07
8
Yamaha Motors
Stud Bolt90116-06M30-00
Required: 6
BOLT, STUD
Supersedes: 90116-06122-00
In stock
Only 1 remaining
$5.06
You save $0.89
9
Yamaha Motors
Gasket688-14198-A2-00
Required: 3
GASKET
Supersedes: 688-14198-00-00
$5.61
You save $0.99
10
Yamaha Motors
Spring Washer92995-06100-00
Required: 6
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
In stock
5+ in stock
$4.08
You save $0.72
12
Yamaha Motors
Valve Seat Gasket688-13621-A1-00
Required: 2
GASKET, VALVE SEAT
Supersedes: 688-13621-00-00
In stock
5+ in stock
$5.61
You save $0.99
13
Yamaha Motors
Reed Valve Plate688-13624-00-00
Required: 1
PLATE,REED VALVE
$15.04
You save $2.66
14
Yamaha Motors
Reed Valve Assembly688-13610-00-00
Required: 3
REED VALVE ASSY
$83.55
You save $14.75
In stock
Only 4 remaining
$53.68
You save $9.47
16
Yamaha Motors
Pan Head Screw98580-05020-00
Required: 6
.SCREW, PAN HEAD
$1.27
You save $0.23
17
Yamaha Motors
Spring Washer92990-05100-00
Required: 6
.WASHER, SPRING
In stock
Only 5 remaining
$0.30
You save $0.05
18
Yamaha Motors
Bolt97080-06030-00
Required: 12
BOLT
Supersedes: 97313-06030-00
In stock
5+ in stock
$3.49
You save $0.62
19
Yamaha Motors
Spring Washer92995-06100-00
Required: 12
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
20
Yamaha Motors
Intake Silencer Assembly6H1-14440-02-00
Required: 1
SILENCER ASSY, INTAKE
In stock
Only 1 remaining
$57.50
You save $10.15
In stock
5+ in stock
$7.22
You save $1.27
22
Yamaha Motors
PAN HEAD SCREW98580-06555-00
Required: 4
SCREW, PAN HEAD
Supersedes: 97895-06055-00
$4.72
You save $0.83
In stock
Only 4 remaining
$3.36
You save $0.59
$41.73
You save $7.37
25
Yamaha Motors
.BOLT97313-06012-00
Required: 6
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.78
You save $0.32
26
Yamaha Motors
Solenoid Coil Assembly688-86110-01-00
Required: 1
SOLENOID COIL ASSEMBLY
$98.26
You save $17.34
27
Yamaha Motors
Pan Head Screw98507-06014-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98503-06014-00
In stock
Only 1 remaining
$8.07
You save $1.42
28
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
29
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
.WASHER, PLAIN
$0.85
You save $0.15
In stock
5+ in stock
$5.82
You save $1.03
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
