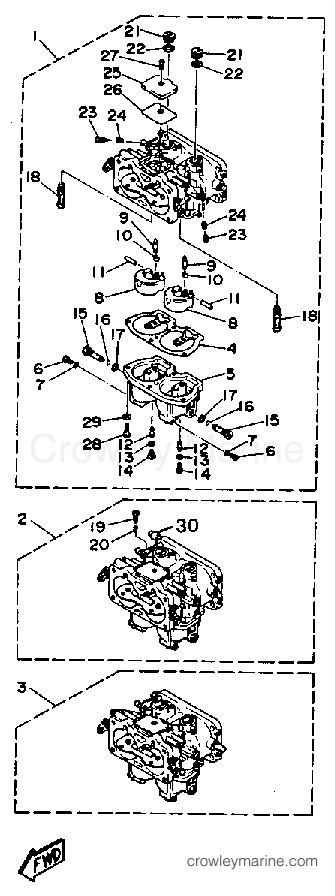

1990 Outboard 200hp - 200ETXD CARBURETOR diagram
1
Yamaha Motors
Carburetor Assembly 16R2-14301-01-00
Required: 1
CARBURETOR ASSEMBLY 1
$436.90
You save $77.10
1
Yamaha Motors
Carburetor Assembly6R4-14301-01-00
Required: 1
CARBURETOR ASSEMBLY 1
$476.94
You save $84.17
2
Yamaha Motors
Carburetor Assembly6R4-14302-01-00
Required: 1
CARBURETOR ASSEMBLY 2
$476.94
You save $84.17
2
Yamaha Motors
Carburetor Assembly 26R2-14302-01-00
Required: 1
CARBURETOR ASSEMBLY 2
$436.90
You save $77.10
3
Yamaha Motors
Carburetor Assembly 36R2-14303-01-00
Required: 1
CARBURETOR ASSEMBLY 3
$436.90
You save $77.10
3
Yamaha Motors
Carburetor Assembly 36R4-14303-01-00
Required: 1
CARBURETOR ASSEMBLY 3
$466.22
You save $82.28
4
Yamaha Motors
Float Chamber Gasket6E5-14384-03-00
Required: 3
.GASKET, FLOAT CHAMBER
In stock
5+ in stock
$20.82
You save $3.68
5
Yamaha Motors
Float Chamber Body6E5-14381-03-00
Required: 3
.BODY, FLOAT CHAMBER
$112.71
You save $19.89
6
Yamaha Motors
Drain Screw6E5-14383-01-00
Required: 6
.SCREW, DRAIN
$5.06
You save $0.89
In stock
5+ in stock
$3.02
You save $0.53
In stock
5+ in stock
$30.47
You save $5.38
9
Yamaha Motors
Needle Valve6E5-14546-00-00
Required: 6
.VALVE, NEEDLE
In stock
5+ in stock
$17.17
You save $3.03
$10.84
You save $1.91
In stock
Only 5 remaining
$7.69
You save $1.36
12
Yamaha Motors
AIR SLOW Jet (#84)6E5-1492F-42-00
Required: 6
.JET, AIR SLOW (#84)
$30.00
You save $5.30
12
Yamaha Motors
Air Slow Jet (#80)6E5-1492F-40-00
Required: 6
.JET, AIR SLOW (#80)
$26.48
You save $4.67
In stock
Only 2 remaining
$4.25
You save $0.75
14
Yamaha Motors
Slow Jet Plug6E5-14394-00-00
Required: 6
.PLUG, SLOW JET
$7.06
You save $1.25
15
Yamaha Motors
Main Jet (#154)6E5-1492E-77-00
Required: 6
.JET, MAIN (#154)
$40.76
You save $7.19
15
Yamaha Motors
Main Jet6E5-1492E-62-00
Required: 6
.JET, MAIN (#124)
$38.25
You save $6.75
In stock
Only 1 remaining
$14.03
You save $2.47
In stock
Only 2 remaining
$5.44
You save $0.96
18
Yamaha Motors
Main Nozzle6G6-1492A-00-00
Required: 6
.NOZZLE, MAIN
$40.29
You save $7.11
18
Yamaha Motors
Main Nozzle6G5-1492A-00-00
Required: 6
.NOZZLE, MAIN
$32.98
You save $5.82
19
Yamaha Motors
Throttle Screw6E5-14321-00-00
Required: 1
.SCREW, THROTTLE
In stock
Only 1 remaining
$35.79
You save $6.31
20
Yamaha Motors
Throttle Spring6J8-14334-00-00
Required: 1
.SPRING, THROTTLE
In stock
Only 1 remaining
$6.54
You save $1.16
In stock
Only 4 remaining
$12.15
You save $2.14
In stock
Only 1 remaining
$4.93
You save $0.87
23
Yamaha Motors
Air Adjusting Screw6E5-14323-03-00
Required: 6
.SCREW, AIR ADJUSTING
In stock
Only 2 remaining
$20.82
You save $3.68
24
Yamaha Motors
Air Adjusting Spring6E5-14223-00-00
Required: 6
.SPRING, AIR ADJUSTING
In stock
Only 2 remaining
$7.69
You save $1.36
$21.50
You save $3.80
$6.21
You save $1.10
27
Yamaha Motors
Flat Head Screw98707-05008-00
Required: 3
.SCREW, FLAT HEAD
Supersedes: 98701-05008-00
In stock
Only 1 remaining
$5.94
You save $1.05
28
Yamaha Motors
Pan Head Screw97885-05016-00
Required: 12
.SCREW, PAN HEAD
Supersedes: 98580-05016-00
In stock
5+ in stock
$3.91
You save $0.69
29
Yamaha Motors
Spring Washer92990-05100-00
Required: 12
.WASHER, SPRING
In stock
Only 5 remaining
$0.30
You save $0.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
