All diagrams for this model

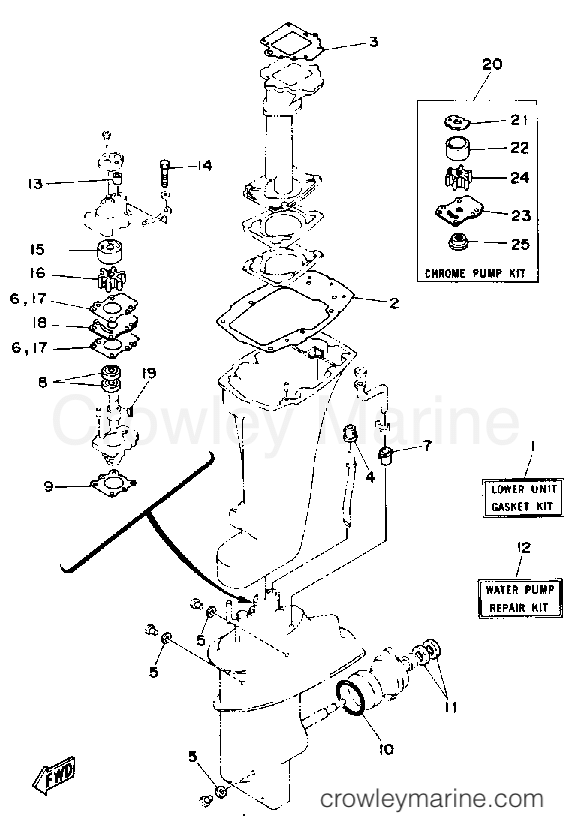

1990 Outboard 15hp - 15ELD REPAIR KIT 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 15ELD - REPAIR KIT 2
Change View:
Obsolete Yamaha Part
1
Yamaha Motors
Obsolete Yamaha Part683-W0001-C1-00
Required: 1
LWR UNIT GSKT KIT
Supersedes: 683-W0001-21-00
Cross Ship
Leaves in 2-5 days
$98.20
$83.47
You save $14.73
More details
Obsolete Yamaha Part
2
Yamaha Motors
Obsolete Yamaha Part682-45113-A2-00
Required: 1
.GASKET, UPPER CASING
Supersedes: 682-45113-A1-00
Cross Ship
Leaves in 2-5 days
$15.10
$12.83
You save $2.27
More details
Exhaust Manifold Gasket
3
Yamaha Motors
Exhaust Manifold Gasket682-41133-A0-00
Required: 1
.GASKET, EXH MAN MANIFOLD 1
Supersedes: 682-41133-01-00
Cross Ship
Leaves in 2-5 days
$13.45
$11.43
You save $2.02
More details
WATER SEAL
4
Yamaha Motors
WATER SEAL626-44365-02-00
Required: 1
.DAMPER, WATER SEAL
Supersedes: 626-44365-01-00
Cross Ship
Leaves in 2-5 days
$7.80
$6.63
You save $1.17
More details
CHROME PUMP KIT
20
Yamaha Motors
CHROME PUMP KIT682-W0078-0A-00
Required: 1
CHROME PUMP KIT
Cross Ship
Leaves in 2-5 days
$57.08
$48.52
You save $8.56
More details
Plate Cartridge Inner Plate
21
Yamaha Motors
Plate Cartridge Inner Plate682-44321-40-00
Required: 1
.INNER PLATE, CARTRIDGE
Cross Ship
Leaves in 2-5 days
$21.95
$18.66
You save $3.29
More details
Cartridge Insert
22
Yamaha Motors
Cartridge Insert682-44322-40-00
Required: 1
.INSERT, CARTRIDGE
Cross Ship
Leaves in 2-5 days
$28.50
$24.23
You save $4.28
More details
Cartridge Outer Plate
23
Yamaha Motors
Cartridge Outer Plate682-44323-40-00
Required: 1
.OUTER PLATE, CARTRIDGE
Cross Ship
Leaves in 2-5 days
$41.15
$34.98
You save $6.17
More details
Oil Seal Cover
25
Yamaha Motors
Oil Seal Cover682-45344-00-00
Required: 1
.COVER, OIL SEAL
Cross Ship
Leaves in 2-5 days
$15.65
$13.30
You save $2.35
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
