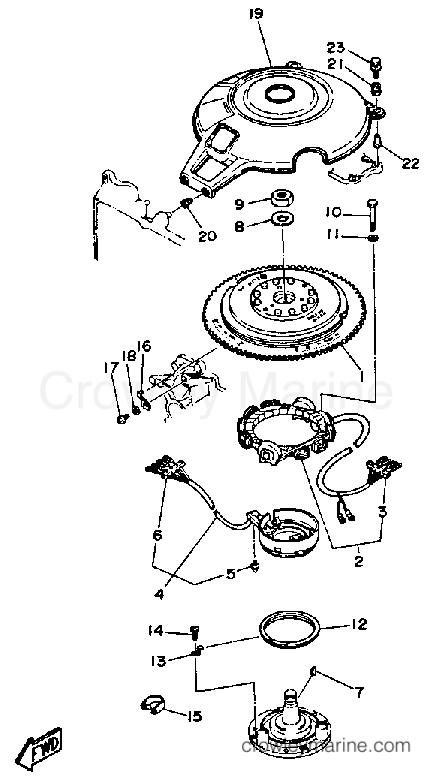

1989 Outboard 130hp - L130ETXF CDI MAGNETO diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors L130ETXF - CDI MAGNETO
Change View:
Rotor Assembly
1
Yamaha Motors
Rotor Assembly6E5-85550-12-00
Required: 1
ROTOR ASSEMBLY
Cross Ship
Leaves in 2-5 days
$1148.40
$976.14
You save $172.26
More details
Stator Assembly
2
Yamaha Motors
Stator Assembly6E5-85510-10-00
Required: 1
STATOR ASSEMBLY
Cross Ship
Leaves in 2-5 days
$708.70
$602.39
You save $106.31
More details
Grommet
3
Yamaha Motors
Grommet90480-06M16-00
Required: 1
.GROMMET
Cross Ship
Leaves in 2-5 days
$7.65
$6.50
You save $1.15
More details
Pulser Coil
4
Yamaha Motors
Pulser Coil6E5-85580-12-00
Required: 1
COIL, PULSER
Cross Ship
Leaves in 2-5 days
$505.80
$429.93
You save $75.87
More details
Grommet
6
Yamaha Motors
Grommet90480-06M16-00
Required: 1
.GROMMET
Cross Ship
Leaves in 2-5 days
$7.65
$6.50
You save $1.15
More details
Plate Washer
8
Yamaha Motors
Plate Washer90201-21M18-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$7.30
$6.21
You save $1.10
More details
Nut
9
Yamaha Motors
Nut90170-20137-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
BOLT, HEXAGON W/W DE
10
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06555-00
Required: 3
BOLT, HEXAGON
Supersedes: 97313-06055-00
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
Magneto Base Retainer
12
Yamaha Motors
Magneto Base Retainer688-41611-00-00
Required: 1
RETAINER, MAGNETO BASE
Cross Ship
Leaves in 2-5 days
$22.80
$19.38
You save $3.42
More details
Magneto Base Retainer
13
Yamaha Motors
Magneto Base Retainer688-41612-00-00
Required: 4
RETAINER, MAGNETO BASE
Cross Ship
Leaves in 2-5 days
$9.35
$7.95
You save $1.40
More details
Pan Head Screw
14
Yamaha Motors
Pan Head Screw97880-06018-00
Required: 4
SCREW, PAN HEAD
Supersedes: 98580-06018-00
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
Clamp
15
Yamaha Motors
Clamp90464-12158-00
Required: 1
CLAMP
Supersedes: 90464-12M00-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Timing Plate
16
Yamaha Motors
Timing Plate6E5-81332-00-00
Required: 1
PLATE, TIMING
Cross Ship
Leaves in 2-5 days
$23.55
$20.02
You save $3.53
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
