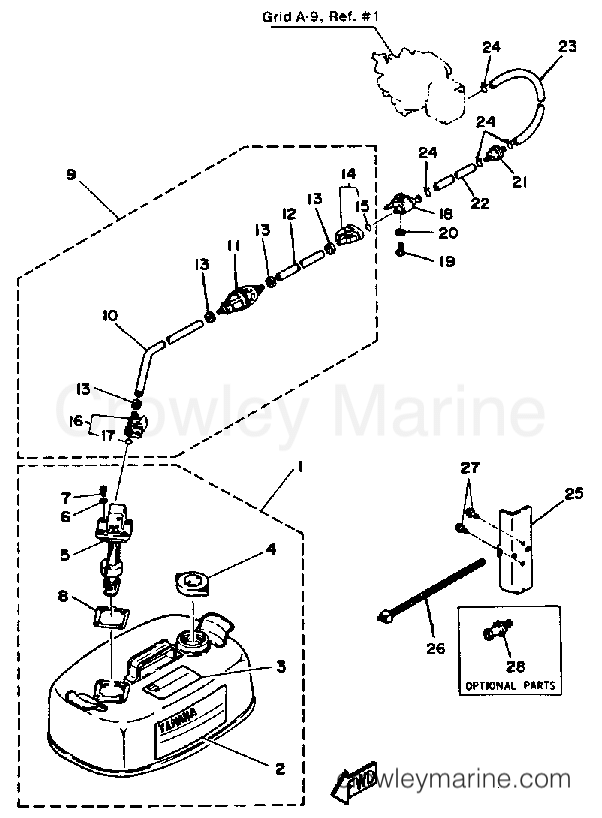

1987 Outboard 8hp - 8SH FUEL TANK diagram
1
Yamaha Motors
Fuel Tank Assembly6Y4-W2420-42-24
Required: 1
FUEL TANK ASSEMBLY
Supersedes: 6Y4-24203-41-24
$122.57
You save $21.63
2
Yamaha Motors
Fuel Tank Graphic6Y4-24244-50-00
Required: 1
GRAPHIC, FUEL TNK 1
$7.95
You save $1.40
3
Yamaha Motors
Fuel Tank Graphic6Y1-24255-40-00
Required: 1
GRAPHIC, FUEL TNK 8
$12.11
You save $2.14
$26.05
You save $4.60
5
Yamaha Motors
Obsolete Yamaha Part6Y4-24260-02-00
Required: 1
FUEL METER ASSEMBLY
Supersedes: 6Y4-24260-01-00
$73.10
You save $12.90
In stock
5+ in stock
$2.29
You save $0.41
7
Yamaha Motors
Pan Head Screw98586-05016-00
Required: 4
SCREW, PAN HEAD
$3.10
You save $0.55
8
Yamaha Motors
Fuel Meter Gasket6Y1-24268-01-00
Required: 1
.GASKET, FUEL METER
Supersedes: 6Y1-24268-00-00
In stock
Only 1 remaining
$1.74
You save $0.31
9
Yamaha Motors
FUEL PIPE COMP. 16Y1-24306-52-00
Required: 1
FUEL PIPE COMP. 1
Supersedes: 6Y1-24306-51-00
$217.52
You save $38.39
In stock
Only 2 remaining
$34.42
You save $6.08
11
Yamaha Motors
PRIMER PUMP ASSY.6Y1-24360-51-00
Required: 1
PRIMER PUMP ASSY.
$37.78
You save $6.67
No longer availableSearch Nationwide Inventory
Price unavailable
$2.29
You save $0.41
14
Yamaha Motors
Fuel Pipe Joint Comp6G1-24305-05-00
Required: 1
FUEL PIPE JOINT COMP. 2
Supersedes: 6G1-24305-01-00
In stock
5+ in stock
$23.80
You save $4.20
In stock
Only 4 remaining
$4.55
You save $0.80
16
Yamaha Motors
Fuel Pipe Joint Comp6Y1-24305-06-00
Required: 1
FUEL PIPE JOINT COMP. 2
Supersedes: 6Y1-24305-02-00
In stock
Only 2 remaining
$21.34
You save $3.77
In stock
Only 4 remaining
$4.55
You save $0.80
18
Yamaha Motors
FUEL PIPE JOINT COMP. 16G1-24304-11-00
Required: 1
FUEL PIPE JOINT COMP. 1
Supersedes: 6G1-24304-02-00
In stock
Only 5 remaining
$29.92
You save $5.28
19
Yamaha Motors
Bolt90101-06M27-00
Required: 1
BOLT
Supersedes: 97313-06025-00
$2.85
You save $0.50
20
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
In stock
5+ in stock
$16.23
You save $2.86
22
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L210)
Supersedes: 90445-09094-00
In stock
5+ in stock
$10.62
You save $1.87
23
Yamaha Motors
Pipe 55RB-24315-00-00
Required: 1
HOSE (L30)
Supersedes: 90445-09220-00
$7.22
You save $1.27
In stock
5+ in stock
$8.07
You save $1.42
25
Yamaha Motors
Tool Holder6N0-F8170-00-00
Required: 1
TOOL, HOLDER
Supersedes: 6G1-28170-00-00
$24.61
You save $4.34
26
Yamaha Motors
Clamp90464-15152-00
Required: 1
CLAMP
Supersedes: 90464-14117-00
$5.52
You save $0.97
$1.87
You save $0.33
28
Yamaha Motors
Jet Drive FlushABB-FLUSH-JD-00
Required: 1
JET DRIVE FLUSH
In stock
Only 1 remaining
$16.19
You save $2.86
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
