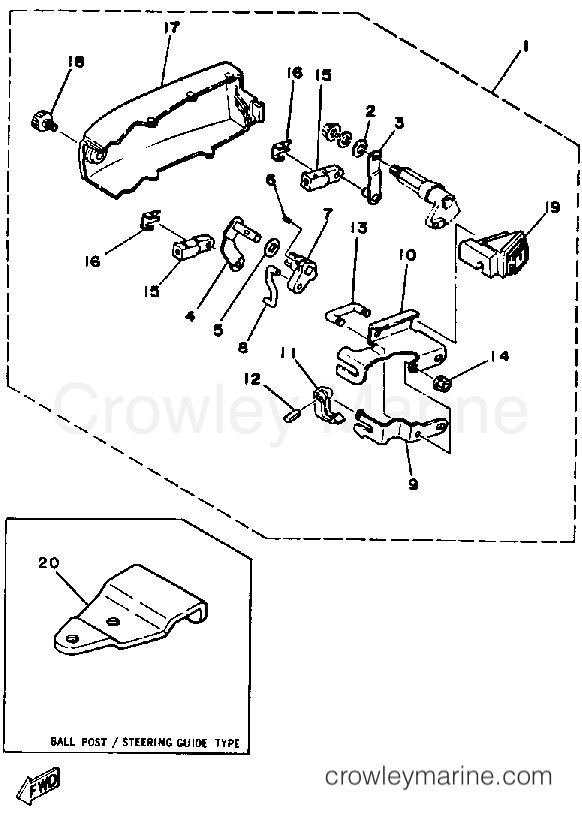

1987 Outboard 30hp - 30SH REMOTE CONTROL ATTACHMENT diagram

1
Yamaha Motors
ATTACHMENT ASSYATTACHMENT ASSEMBLY.6J8-48501-02-EK
Required: 1
ATTACHMENT ASSEMBLY
$112.58
You save $19.87

2
Yamaha Motors
Spring Washer92990-08100-00
Required: 1
.WASHER, SPRING
$4.76
You save $0.84

3
Yamaha Motors
Control Throttle Lever6J8-48534-00-00
Required: 1
.THROTTLE LEVER, CONTROL
$16.91
You save $2.98

4
Yamaha Motors
Shiftcontrol Lever6J8-48544-02-00
Required: 1
.LEVER, SHIFTCONTROL
Supersedes: 6J8-48544-01-00
$41.18
You save $7.27
$5.23
You save $0.92
In stock
Only 1 remaining
$5.70
You save $1.00

7
Yamaha Motors
Shift Control Lever99999-01865-00
Required: 1
.LEVER, SHIFT CONTR
$24.99
You save $4.41

7
Yamaha Motors
Shift Control Lever6J8-44173-02-00
Required: 1
.LEVER, SHIFT CONTROL
In stock
Only 1 remaining
$10.67
You save $1.88

8
Yamaha Motors
Shift Control Lever99999-01865-00
Required: 1
.LEVER, SHIFT CONTR
$24.99
You save $4.41
$11.47
You save $2.03

9
Yamaha Motors
Remote Control Bracket6J8-48531-00-00
Required: 1
.BRACKET, REMOTE CONTROL 1
$20.02
You save $3.53

10
Yamaha Motors
Remote Control Bracket6J8-48532-00-00
Required: 1
.BRACKET, REMOTE CONTROL 2
$24.52
You save $4.33

11
Yamaha Motors
Cable Clamp682-48538-50-00
Required: 1
.CLAMP, CABLE 1
$12.54
You save $2.21
In stock
Only 1 remaining
$4.72
You save $0.83
In stock
Only 1 remaining
$8.84
You save $1.56
In stock
Only 5 remaining
$4.08
You save $0.72
In stock
Only 4 remaining
$8.03
You save $1.42
In stock
5+ in stock
$7.73
You save $1.37

17
Yamaha Motors
Bottom Cover6J8-42723-50-00
Required: 1
.COVER, BOTTOM
$29.20
You save $5.15
In stock
5+ in stock
$13.09
You save $2.31
$12.66
You save $2.24

20
Yamaha Motors
Steering Hook6J8-48511-51-4D
Required: 1
HOOK STEERING
Supersedes: 6J8-48511-51-EK
$66.89
You save $11.81
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
