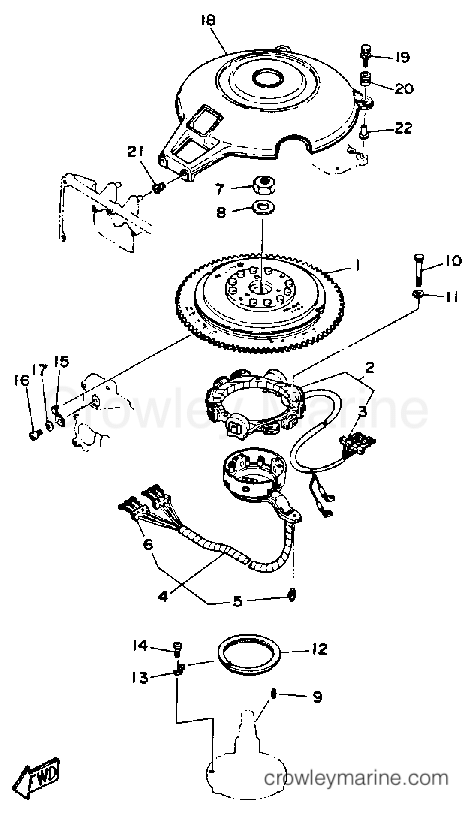

1986 Outboard 175hp - 175ETXJ CDI MAGNETO diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 175ETXJ - CDI MAGNETO
Change View:
Rotor Assembly
1
Yamaha Motors
Rotor Assembly6G5-85550-12-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$1371.85
$1166.07
You save $205.78
More details
Stator Assembly
2
Yamaha Motors
Stator Assembly6G5-85510-11-00
Required: 1
STATOR ASSY
Cross Ship
Leaves in 2-5 days
$575.65
$489.30
You save $86.35
More details
Grommet
3
Yamaha Motors
Grommet90480-06M16-00
Required: 1
.GROMMET
Cross Ship
Leaves in 2-5 days
$7.65
$6.50
You save $1.15
More details
Pulser Coil
4
Yamaha Motors
Pulser Coil 6G5-85580-13-00
Required: 1
COIL, PULSER
Cross Ship
Leaves in 2-5 days
$608.05
$516.84
You save $91.21
More details
Grommet
6
Yamaha Motors
Grommet90480-06M16-00
Required: 1
.GROMMET
Cross Ship
Leaves in 2-5 days
$7.65
$6.50
You save $1.15
More details
Nut
7
Yamaha Motors
Nut90170-20137-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Plate Washer
8
Yamaha Motors
Plate Washer90201-21M18-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$7.30
$6.21
You save $1.10
More details
BOLT, HEXAGON W/W DE
10
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06555-00
Required: 3
BOLT, HEXAGON
Supersedes: 97313-06055-00
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
Magneto Base Retainer
12
Yamaha Motors
Magneto Base Retainer688-41611-00-00
Required: 1
RETAINER, MAGNETO BASE
Cross Ship
Leaves in 2-5 days
$22.80
$19.38
You save $3.42
More details
Magneto Base Retainer
13
Yamaha Motors
Magneto Base Retainer688-41612-00-00
Required: 4
RETAINER, MAGNETO BASE
Cross Ship
Leaves in 2-5 days
$9.35
$7.95
You save $1.40
More details
Pan Head Screw
14
Yamaha Motors
Pan Head Screw97880-06018-00
Required: 4
SCREW, PAN HEAD
Supersedes: 98580-06018-00
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
Timing Plate
15
Yamaha Motors
Timing Plate6E5-81332-00-00
Required: 1
PLATE, TIMING
Cross Ship
Leaves in 2-5 days
$23.55
$20.02
You save $3.53
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
