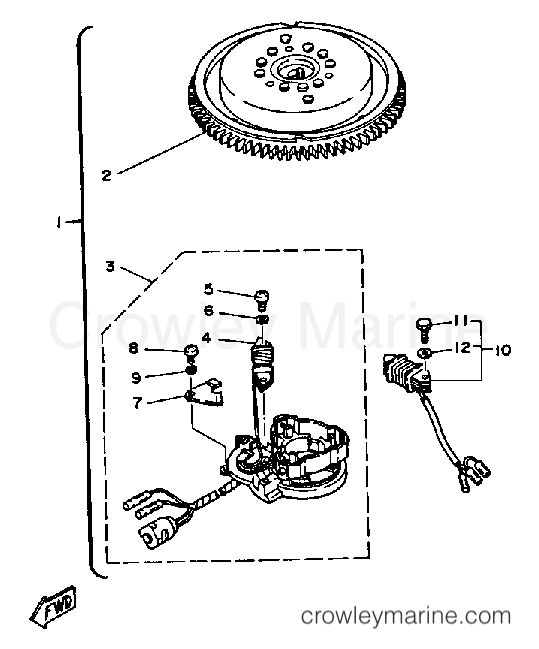

1985 Outboard 40hp - 40SK CDI MAGNETO (40E 40ET) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 40SK - CDI MAGNETO (40E 40ET)
Change View:
Rotor Assembly
2
Yamaha Motors
Rotor Assembly6H4-85550-A0-00
Required: 1
ROTOR ASSEMBLY
Cross Ship
Leaves in 2-5 days
$1063.20
$903.72
You save $159.48
More details
Obsolete Yamaha Part
3
Yamaha Motors
Obsolete Yamaha Part6H4-85510-F9-00
Required: 1
STATOR ASSEMBLY
Supersedes: 6H4-85510-F0-00
Cross Ship
Leaves in 2-5 days
$536.45
$455.98
You save $80.47
More details
Charge Coil
4
Yamaha Motors
Charge Coil6H4-85520-00-00
Required: 1
COIL, CHARGE
Cross Ship
Leaves in 2-5 days
$145.50
$123.67
You save $21.83
More details
Holder
7
Yamaha Motors
Holder6H4-85548-00-00
Required: 1
.HOLDER
Cross Ship
Leaves in 2-5 days
$19.35
$16.45
You save $2.90
More details
Lighting Coil Assembly
10
Yamaha Motors
Lighting Coil Assembly6H4-81303-A0-00
Required: 1
LIGHTING COIL ASSEMBLY
Cross Ship
Leaves in 2-5 days
$139.85
$118.87
You save $20.98
More details
Bolt
11
Yamaha Motors
Bolt90101-06M27-00
Required: 2
BOLT
Supersedes: 97313-06025-00
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
