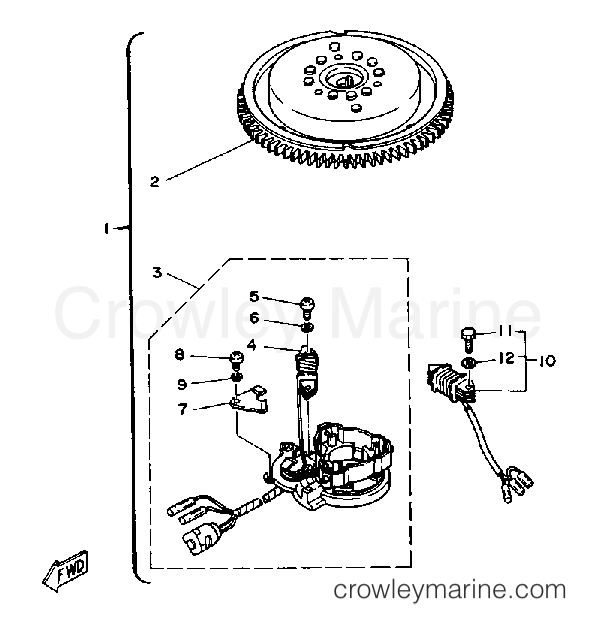

1984 Outboard 40hp - 40SN CDI MAGNETO (40E) diagram
2
Yamaha Motors
Rotor Assembly6H4-85550-A0-00
Required: 1
.ROTOR ASSEMBLY
$903.72
You save $159.48
3
Yamaha Motors
Obsolete Yamaha Part6H4-85510-F9-00
Required: 1
.STATOR ASSEMBLY
Supersedes: 6H4-85510-F0-00
$455.98
You save $80.47
4
Yamaha Motors
Charge Coil6H4-85520-00-00
Required: 1
..COIL, CHARGE
$123.67
You save $21.83
5
Yamaha Motors
Pan Head Screw98580-06020-00
Required: 2
..SCREW, PAN HEAD
In stock
Only 1 remaining
$8.07
You save $1.42
6
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
..WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
$16.45
You save $2.90
8
Yamaha Motors
Pan Head Screw98507-05008-00
Required: 1
SCREW, PAN HEAD
Supersedes: 97802-05008-00
In stock
Only 1 remaining
$3.27
You save $0.58
9
Yamaha Motors
Spring Washer92990-05100-00
Required: 1
..WASHER, SPRING
In stock
Only 5 remaining
$0.30
You save $0.05
10
Yamaha Motors
Lighting Coil Assembly6H4-81303-A0-00
Required: 1
.LIGHTING COIL ASSEMBLY
$118.87
You save $20.98
11
Yamaha Motors
Bolt90101-06M27-00
Required: 2
..BOLT
Supersedes: 97313-06025-00
$2.85
You save $0.50
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
..WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
