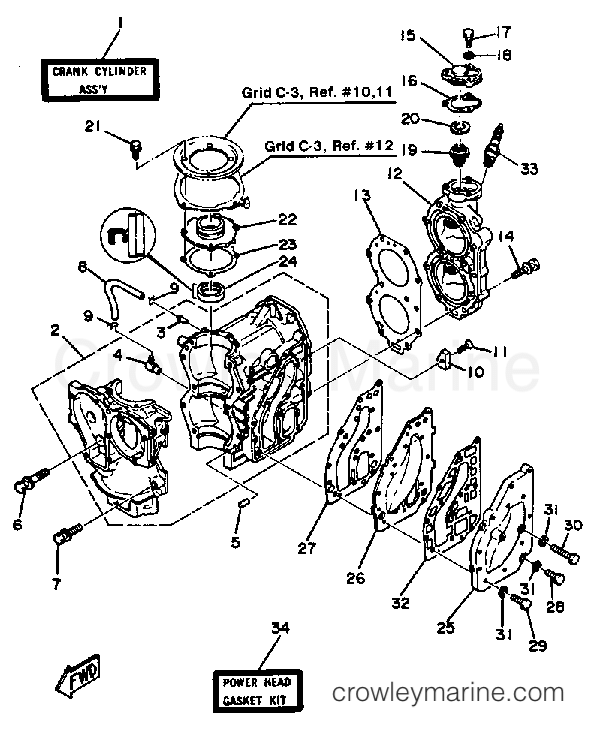

1984 Outboard 25hp - 25SN CRANKCASE CYLINDER diagram
1
Yamaha Motors
CRANK-CYLINDER.ASSEMBLY.689-W0090-11-EK
Required: 1
CRANK-CYLINDER.ASSEMBLY.
$980.43
You save $173.02
2
Yamaha Motors
Crankcase Assembly 689-15100-01-94
Required: 1
CRANKCASE ASSEMBLY
$882.94
You save $155.81
$6.88
You save $1.21
4
Yamaha Motors
Check Valve Assembly650-11370-01-00
Required: 1
.CHECK VALVE ASSY
Supersedes: 650-11370-00-00
In stock
Only 4 remaining
$14.24
You save $2.51
In stock
5+ in stock
$3.91
You save $0.69
6
Yamaha Motors
Bolt with Washer(90119-18M18-00)
Required: 2
BOLT, WITH WASHER
No longer availableSearch Nationwide Inventory
Price unavailable
7
Yamaha Motors
Bolt w/ Washer90119-08M66-00
Required: 8
BOLT, WITH WASHER
Supersedes: 90119-08M20-00
In stock
Only 3 remaining
$3.10
You save $0.55
8
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L240)
Supersedes: 90445-07M24-00
In stock
Only 2 remaining
$6.29
You save $1.11
In stock
Only 3 remaining
$2.72
You save $0.48
$5.23
You save $0.92
11
Yamaha Motors
Flat Head Screw98701-06020-00
Required: 1
SCREW, FLAT HEAD
Supersedes: 98702-06020-00
$0.81
You save $0.14
12
Yamaha Motors
Obsolete Yamaha Part689-11111-01-1S
Required: 1
HEAD, CYLINDER 1
Supersedes: 689-11111-01-94
$158.57
You save $27.98
13
Yamaha Motors
Cylinder Head Gasket689-11181-A2-00
Required: 1
GASKET, CYLINDER. HEAD 1
Supersedes: 689-11181-A0-00
In stock
Only 1 remaining
$46.41
You save $8.19
14
Yamaha Motors
Bolt with Washer90119-08009-00
Required: 11
BOLT, WITH WASHER
Supersedes: 90119-08M18-00
$2.17
You save $0.38
15
Yamaha Motors
Obsolete Yamaha Part655-12413-01-1S
Required: 1
COVER, THERMOSTAT
Supersedes: 655-12413-01-9M
$18.36
You save $3.24
16
Yamaha Motors
Cover Gasket655-12414-A1-00
Required: 1
GASKET, COVER
Supersedes: 655-12414-00-00
In stock
Only 4 remaining
$5.10
You save $0.90
17
Yamaha Motors
Hexagon Bolt97313-06020-00
Required: 1
BOLT, HEXAGON
$3.82
You save $0.68
18
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
$43.01
You save $7.59
20
Yamaha Motors
Plate Washer90201-21567-00
Required: 1
WASHER, PLATE
In stock
Only 3 remaining
$6.21
You save $1.10
$1.22
You save $0.21
22
Yamaha Motors
Oil Seal Housing689-15359-00-94
Required: 1
HOUSING, OIL SEAL
$40.46
You save $7.14
23
Yamaha Motors
Gasket689-15369-A0-00
Required: 1
GSKT., O/SEAL HSING HOUSING
$5.35
You save $0.95
$24.64
You save $4.35
25
Yamaha Motors
Exhaust Outer Cover689-41113-00-1S
Required: 1
EXHAUST OUTER CVR. EXHAUST
Supersedes: 689-41113-00-9M
$38.55
You save $6.80
26
Yamaha Motors
Exhaust Inner Cover689-41111-00-1S
Required: 1
EXHAUST INNER CVR. EXHAUST
Supersedes: 689-41111-00-9M
$52.32
You save $9.23
27
Yamaha Motors
Gasket689-41114-A0-00
Required: 1
GSKT, EXH OUTR CVR COVER 1
$10.96
You save $1.94
28
Yamaha Motors
Bolt90101-06M27-00
Required: 1
BOLT
Supersedes: 97395-06025-00
$2.85
You save $0.50
$2.57
You save $0.45
30
Yamaha Motors
BOLT97095-06050-00
Required: 2
BOLT
Supersedes: 97395-06050-00
$1.32
You save $0.23
In stock
5+ in stock
$2.42
You save $0.43
32
Yamaha Motors
Gasket689-41112-A0-00
Required: 1
GSKT, EXH INNR CVR COVER 2
$11.05
You save $1.95
33
Yamaha Motors
B7HS NGKB7H-S0000-00-00
Required: 2
NGK SPARK PLUG B7HS
Supersedes: NGK-B7HS0-00-00
In stock
5+ in stock
$3.87
You save $0.68
34
Yamaha Motors
Obsolete Yamaha Part689-W0001-A4-00
Required: 1
POWER HEAD GASKET KIT
Supersedes: 689-W0001-04-00
$113.81
You save $20.09
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
