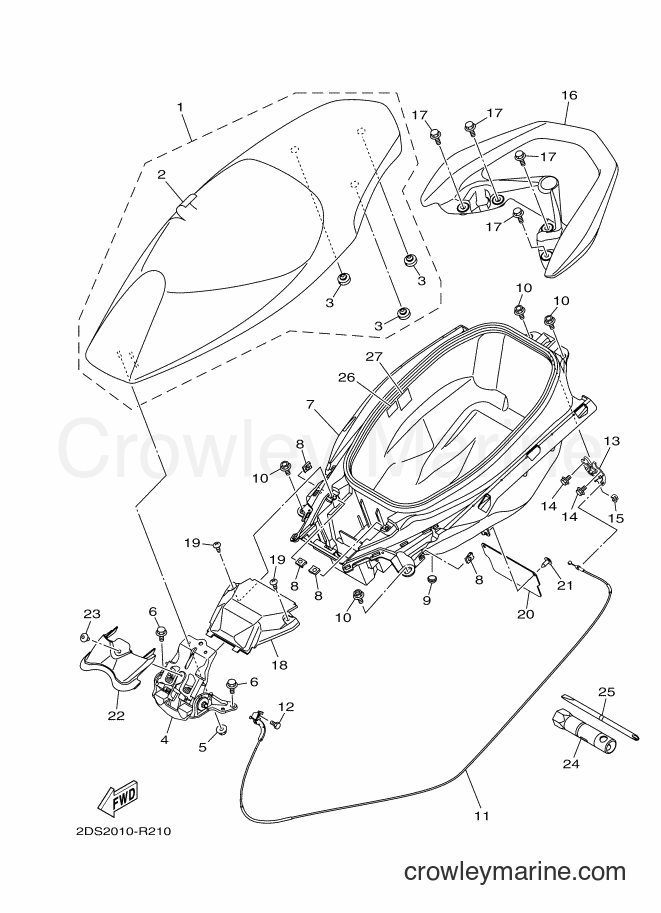

2016 Maxi-Scooter NMAX125 - NMAX125 (2DS2) [010] SEAT diagram
![Yamaha Motors NMAX125 (2DS2) [010] - SEAT](https://cdn.crowleymarine.com/yamaha/UlQq3IWC.png)
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
. SEAT COVER COMP.
Price unavailable
$2.98
You save $0.52
4
Required: 1
HINGE ASSY
Price unavailable
In stock
Only 1 remaining
$2.21
You save $0.39
$5.52
You save $0.97
7
Required: 1
BOX 1
Price unavailable
-50%
8
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
$5.52
You save $0.97
$9.77
You save $1.72
11
Required: 1
CABLE, SEAT LOCK
Price unavailable
12
Yamaha Motors
Bolt with Washer97527-05512-00
Required: 1
BOLT, WITH WASHER
$0.47
You save $0.08
13
Required: 1
SEAT LOCK ASSY
Price unavailable
$3.02
You save $0.53
$0.72
You save $0.13
16
Required: 1
HANDLE, SEAT
Price unavailable
17
Yamaha Motors
Bolt Flange (4LN)95817-08025-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-08025-00
$8.07
You save $1.42
18
Required: 1
COVER, BATTERY
Price unavailable
19
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
$2.21
You save $0.39
20
Required: 1
FLAP
Price unavailable
-50%
In stock
Only 4 remaining
$0.85
You save $0.85
22
Required: 1
COVER 2
Price unavailable
23
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
24
Required: 1
BOX, SPARK PLUG
Price unavailable
25
Required: 1
DRIVER
Price unavailable
26
Required: 1
LABEL, TIRE
Price unavailable
27
Required: 1
LABEL, CAUTION
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
