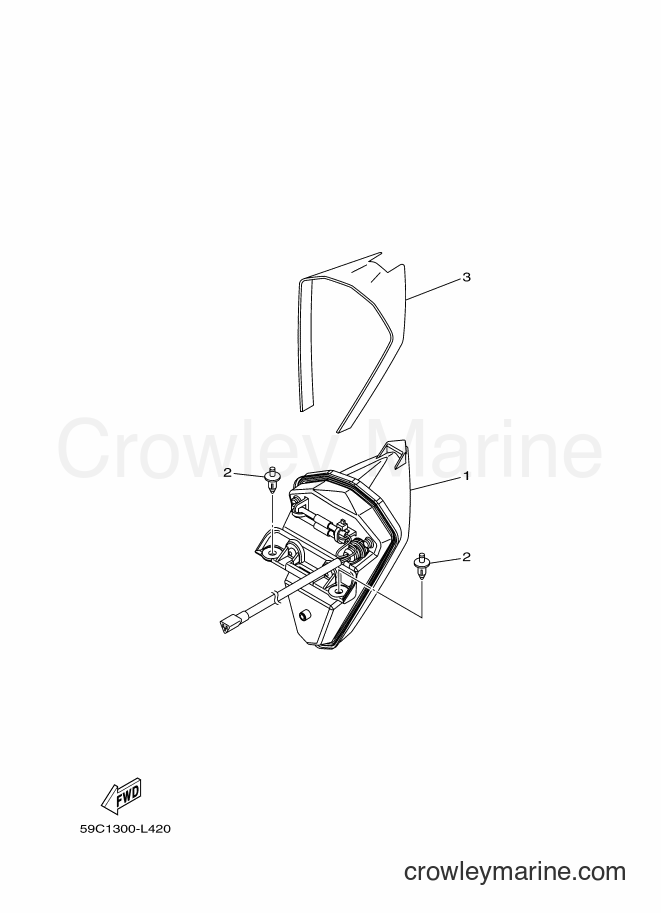

2013 Maxi-Scooter XP500 - XP500 (59CB) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XP500 (59CB) [010] - TAILLIGHT
Change View:
TAIL LIGHT UNIT ASSEMBLY
1
Yamaha Motors
TAIL LIGHT UNIT ASSEMBLY4C8-84710-10-00
Required: 1
TAILLIGHT UNIT ASSY
Cross Ship
Leaves in 2-5 days
$215.99
$183.59
You save $32.40
More details
RIVET
2
Yamaha Motors
RIVET90269-06008-00
Required: 2
RIVET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
TAIL DAMPER
3
Yamaha Motors
TAIL DAMPER59C-84736-00-00
Required: 1
DAMPER, TAIL 1
Cross Ship
Leaves in 2-5 days
$4.95
$4.21
You save $0.74
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
