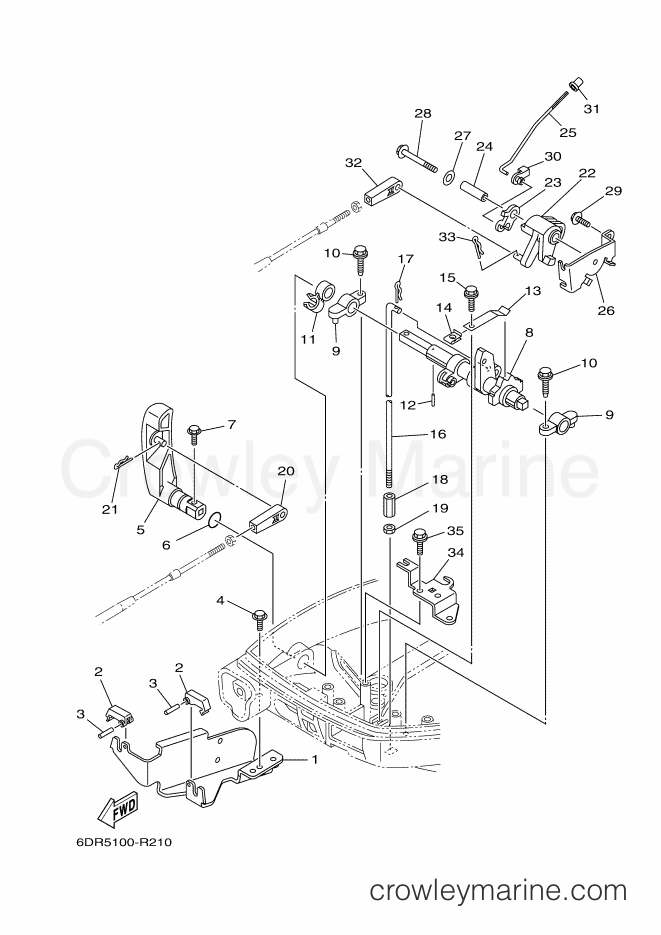

2017 International 9.9hp - F9.9LMHB-2017 (6DR5) [030] CONTROL 2 diagram
![Yamaha Motors F9.9LMHB-2017 (6DR5) [030] - CONTROL 2](https://cdn.crowleymarine.com/yamaha/ivKtu6Vi.png)
1
Yamaha Motors
REMOTE CONTROL BRACKET6DR-48531-01-00
Required: 1
BRACKET, REMOTE CONTROL 1
$63.49
You save $11.21
2
Yamaha Motors
Cable Clamp682-48538-50-00
Required: 2
CLAMP, CABLE 1
$12.54
You save $2.21
In stock
Only 1 remaining
$4.72
You save $0.83
4
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06512-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06512-00
In stock
Only 2 remaining
$1.74
You save $0.31
5
Yamaha Motors
Gear Shift Handle6AU-44111-10-00
Required: 1
HANDLE, GEAR SHIFT
In stock
Only 2 remaining
$23.20
You save $4.10
6
Yamaha Motors
O-Ring93210-12790-00
Required: 1
O-RING
Supersedes: 93210-12327-00
In stock
Only 4 remaining
$7.22
You save $1.27
7
Yamaha Motors
Bolt w/ Washer97595-05516-00
Required: 1
BOLT, WITH WASHER
$1.32
You save $0.23
8
Yamaha Motors
Shift Rod Lever68T-44121-03-00
Required: 1
LEVER, SHIFT ROD
$40.42
You save $7.13
$13.30
You save $2.35
In stock
5+ in stock
$2.29
You save $0.41
In stock
Only 1 remaining
$3.23
You save $0.57
$5.61
You save $0.99
$5.44
You save $0.96
14
Yamaha Motors
BRACKET6DR-44117-01-00
Required: 1
BRACKET
Supersedes: 6DR-44117-00-00
$2.59
You save $0.46
In stock
Only 5 remaining
$1.54
You save $0.27
16
Yamaha Motors
Shift Rod68T-44143-11-00
Required: 1
ROD, SHIFT 1
Supersedes: 68T-44143-10-00
$34.04
You save $6.01
$3.02
You save $0.53
18
Yamaha Motors
Shift Rod Connector61N-44146-00-00
Required: 1
CONNECTOR, SHIFT ROD 2
In stock
Only 5 remaining
$11.13
You save $1.96
In stock
Only 4 remaining
$8.07
You save $1.42
20
Yamaha Motors
Remote Control Cable End6FM-48344-00-00
Required: 1
CABLE END, REMOTE CONTROL
In stock
5+ in stock
$18.40
You save $3.25
In stock
5+ in stock
$1.32
You save $0.23
$6.08
You save $1.07
23
Yamaha Motors
Free Accel. Lever68T-41283-00-00
Required: 1
LEVER, FREE ACCEL.
$5.31
You save $0.94
$12.07
You save $2.13
$14.32
You save $2.53
26
Yamaha Motors
Throttle Wire Stay68T-14497-00-00
Required: 1
STAY, THROTTLE WIRE
$11.05
You save $1.95
27
Yamaha Motors
Plate Washer90201-06M62-00
Required: 1
WASHER, PLATE
$4.04
You save $0.71
28
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06545-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06545-00
$0.98
You save $0.17
29
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06512-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06512-00
In stock
Only 2 remaining
$1.74
You save $0.31
30
Yamaha Motors
Choke Lever Joint6J8-41262-00-00
Required: 1
JOINT, CHOKE LEVER
In stock
5+ in stock
$5.61
You save $0.99
31
Yamaha Motors
CAP, OVERFLOW PIPE647-14395-61-00
Required: 1
CAP, OVERFLOW PIPE
Supersedes: 647-14395-60-00
$1.15
You save $0.20
32
Yamaha Motors
Remote Control Cable End6FM-48344-00-00
Required: 1
CABLE END, REMOTE CONTROL
In stock
5+ in stock
$18.40
You save $3.25
In stock
5+ in stock
$1.32
You save $0.23
$18.40
You save $3.25
In stock
Only 5 remaining
$1.54
You save $0.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
