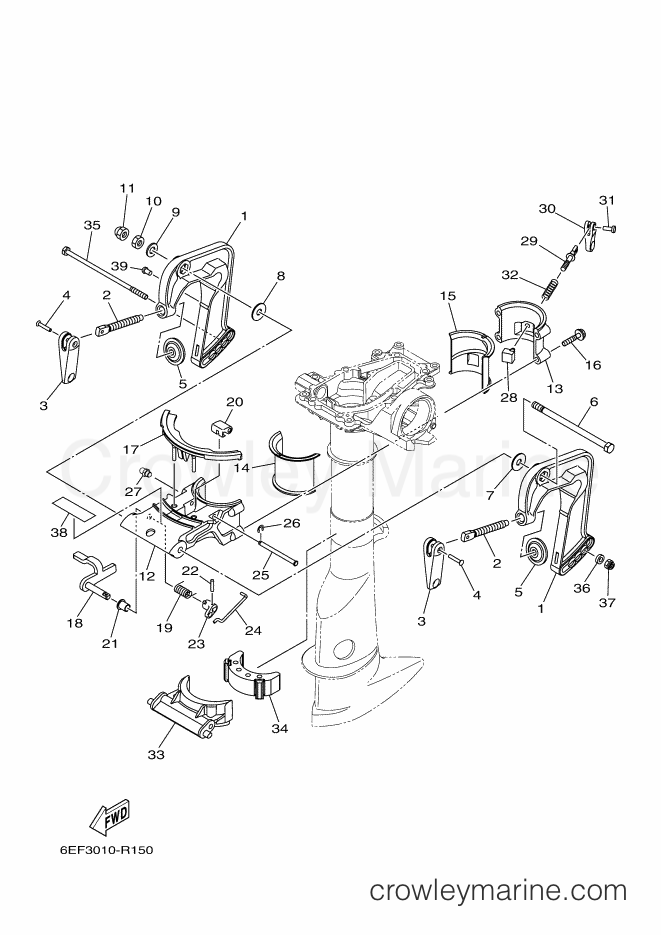

2017 International 2hp - F2BMHS (6EF3) [020] BRACKET diagram

1
Yamaha Motors
Clamp Bracket 16EG-G3111-00-8D
Required: 2
BRACKET, CLAMP 1
In stock
Only 1 remaining
$68.09
You save $12.02

2
Yamaha Motors
Transom Clamp Screw6E0-43116-01-00
Required: 2
SCREW, TRANSOM CLAMP
In stock
Only 1 remaining
$28.65
You save $5.05

3
Yamaha Motors
TRANSOM CLAMP HANDLE6EE-G3118-00-00
Required: 2
HANDLE, TRANSOM CLAMP
In stock
5+ in stock
$4.04
You save $0.71
In stock
5+ in stock
$5.06
You save $0.89

5
Yamaha Motors
Transom Clamp Pad648-43114-01-00
Required: 2
PAD, TRANSOM CLAMP
In stock
Only 2 remaining
$12.07
You save $2.13
$12.32
You save $2.17

7
Yamaha Motors
Plate Washer90202-08022-00
Required: 1
WASHER, PLATE
$3.82
You save $0.68

8
Yamaha Motors
Plain Washer90202-08004-00
Required: 1
WASHER, PLATE
$2.42
You save $0.43

9
Yamaha Motors
Plain Washer92990-08200-00
Required: 1
WASHER, PLAIN
In stock
Only 2 remaining
$2.54
You save $0.45
In stock
Only 1 remaining
$7.22
You save $1.27
$10.62
You save $1.87
12
Yamaha Motors
Swivel Bracket6EG-G3311-00-8D
Required: 1
BRACKET, SWIVEL 1
$76.75
You save $13.55

13
Yamaha Motors
Swivel Bracket 26EG-G3312-00-8D
Required: 1
BRACKET, SWIVEL 2
$34.81
You save $6.14

14
Yamaha Motors
Pivot Shaft Bushing6EG-G2537-00-00
Required: 1
BUSHING, PIVOT SHAFT
$14.58
You save $2.57

15
Yamaha Motors
Pivot Shaft Bushing6EG-G2538-00-00
Required: 1
BUSHING, PIVOT SHAFT
$14.58
You save $2.57

16
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-06530-00
Required: 4
BOLT, WITH WASHER
Supersedes: 97575-06530-00
$1.74
You save $0.31
In stock
Only 1 remaining
$12.83
You save $2.27

18
Yamaha Motors
Tilt Stop Lever Assembly6EG-G3180-00-00
Required: 1
TILT STOP LEVER ASSY
$60.95
You save $10.76
$7.73
You save $1.37
In stock
Only 1 remaining
$9.82
You save $1.73
In stock
5+ in stock
$4.72
You save $0.83
$5.44
You save $0.96

23
Yamaha Motors
Tilt Stop Lever, 26EG-G3185-00-00
Required: 1
LEVER, TILT STOP 2
$6.08
You save $1.07

24
Yamaha Motors
Tilt Lock Rod6EG-G3164-00-00
Required: 1
ROD, TILT LOCK
In stock
Only 1 remaining
$5.91
You save $1.04
In stock
Only 1 remaining
$4.17
You save $0.74
In stock
Only 3 remaining
$1.69
You save $0.30

27
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
NIPPLE, GREASE
In stock
5+ in stock
$7.01
You save $1.24

28
Yamaha Motors
PLATE, FRICTION6EG-42528-00-00
Required: 1
PLATE, FRICTION
Supersedes: 6EG-G2528-01-00
In stock
Only 1 remaining
$14.66
You save $2.59

29
Yamaha Motors
Friction Piece Screw6EG-G2529-00-00
Required: 1
SCREW, FRICTION PIECE
$12.45
You save $2.20

30
Yamaha Motors
Steering Lock Knob6EE-G2561-00-00
Required: 1
KNOB, STEERING LOCK
$5.99
You save $1.06
$3.74
You save $0.66

32
Yamaha Motors
Compression Spring90501-12803-00
Required: 1
SPRING, COMPRESSION
$6.63
You save $1.17

33
Yamaha Motors
RECEIVER, THRUST6EG-43351-00-00
Required: 1
RECEIVER, THRUST
Supersedes: 6EG-G3351-00-00
$18.11
You save $3.20

34
Yamaha Motors
Lower Front Mount Damper69M-44557-00-00
Required: 1
MOUNT DAMPER, LOWER FRONT
In stock
Only 1 remaining
$66.43
You save $11.72
In stock
Only 1 remaining
$5.44
You save $0.96

36
Yamaha Motors
Plate Washer90201-06040-00
Required: 1
WASHER, PLATE
In stock
Only 1 remaining
$2.55
You save $0.45
In stock
5+ in stock
$6.54
You save $1.16

38
Yamaha Motors
Tilt Indicator6EG-G3691-00-00
Required: 1
INDICATOR, TILT
In stock
Only 1 remaining
$1.91
You save $0.34
$2.72
You save $0.48
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
