2017 International 150hp - F150JB-2017 (63PF) [320] OPTIONAL PARTS 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

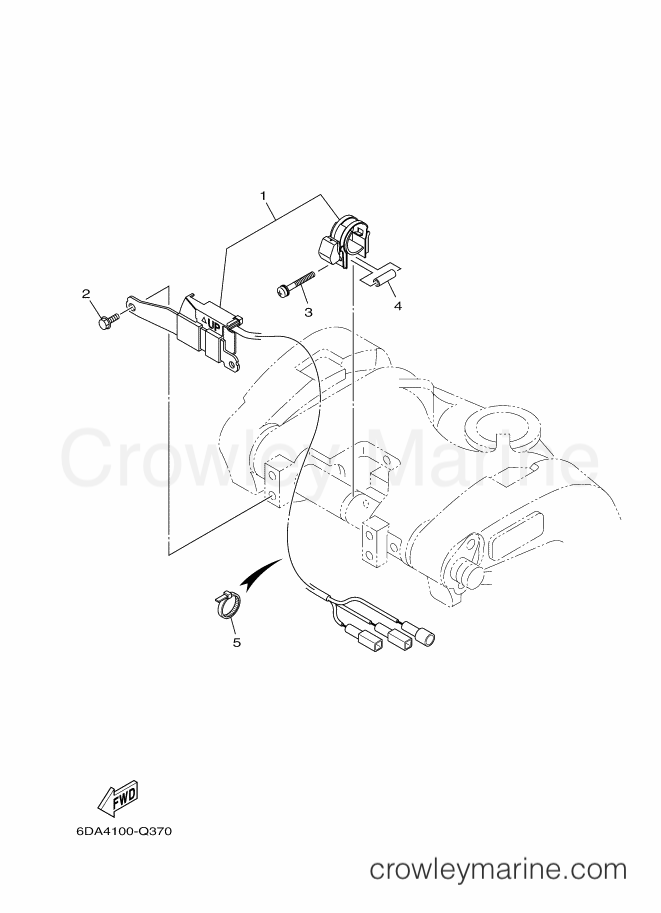

Yamaha Motors F150JB-2017 (63PF) [320] - OPTIONAL PARTS 2

Change View:

Yamaha Motors

TILT LIMIT SWITCH63P-825E0-02-00

Required: 1

TILT LIMIT SWITCH ASSY

Supersedes: 63P-825E0-01-00

~~$405.00~~

$344.25

You save $60.75

More details

Yamaha Motors

BOLT, HEXAGON W/W DE97E95-06516-00

Required: 2

BOLT, WITH WASHER

Supersedes: 97595-06516-00

~~$4.20~~

$3.57

You save $0.63

More details

Yamaha Motors

Screw With Washer90159-05059-00

Required: 1

SCREW, WITH WASHER

In stock

Only 1 remaining

~~$3.55~~

$3.02

You save $0.53

COLLAR

~~$4.15~~

$3.53

You save $0.62

CLAMP

Supersedes: 90465-11M10-00

In stock

5+ in stock

~~$2.70~~

$2.29

You save $0.41

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
