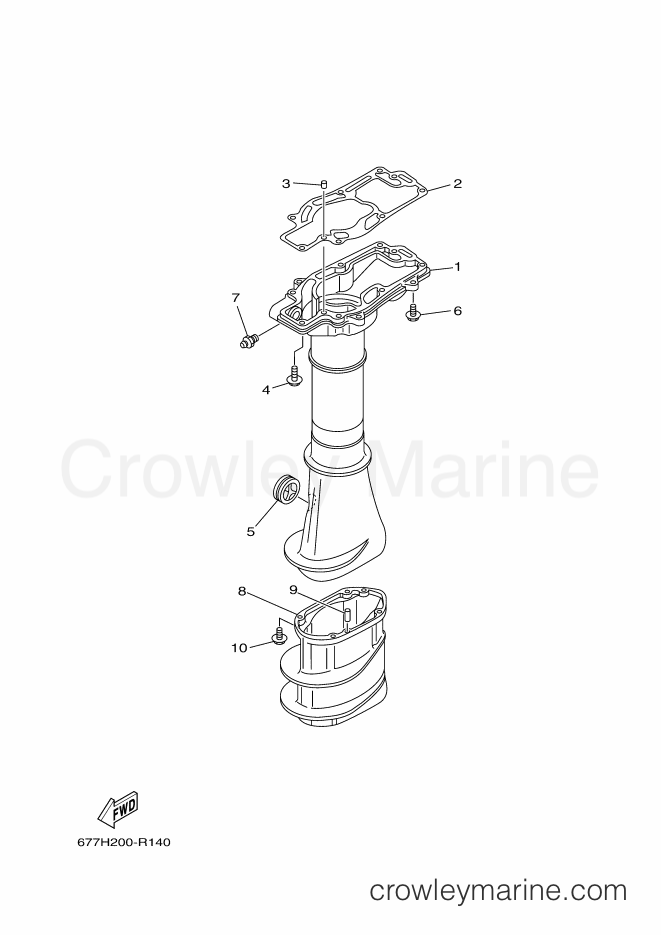

2017 International 8hp - E8DMHS (677H) [040] UPPER CASING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors E8DMHS (677H) [040] - UPPER CASING
Change View:
1
Required: 1
CASING, UPPER
Price unavailable
2
Required: 1
GASKET, UPPER CASING
Price unavailable
3
Required: 2
PIN, DOWEL
Price unavailable
BOLT, HEXAGON W/W DE
4
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06525-00
Required: 7
BOLT, WITH WASHER
Supersedes: 97595-06525-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
8
Required: 1
EXTENSION
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
