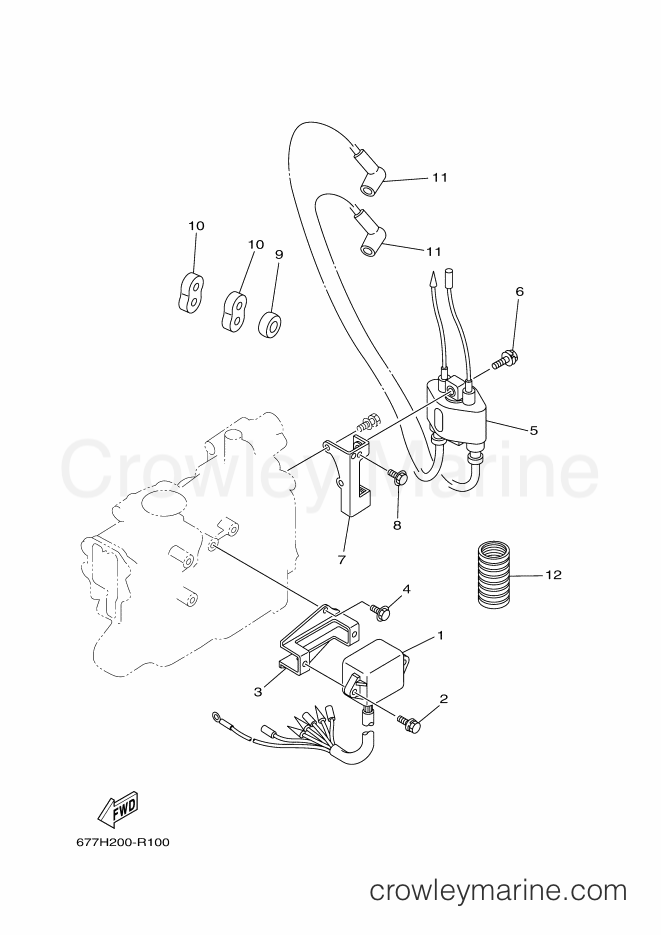

2017 International 8hp - E8DMHL (677H) [160] ELECTRICAL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors E8DMHL (677H) [160] - ELECTRICAL
Change View:
Bolt with Washer
2
Yamaha Motors
Bolt with Washer90119-06M19-00
Required: 2
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$7.65
$6.50
You save $1.15
More details
3
Required: 1
COVER
Price unavailable
BOLT, HEXAGON W/W DE
4
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06516-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06516-00
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
Ignition Coil Assembly
5
Yamaha Motors
Ignition Coil Assembly6G1-85570-02-00
Required: 1
IGNITION COIL ASSY
Cross Ship
Leaves in 2-5 days
$90.10
$72.08
You save $18.02
More details
BOLT, HEXAGON W/W DE
6
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06625-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06625-00
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
7
Required: 1
BRACKET
Price unavailable
GROMMET, WATER TUBE (UPPER)
10
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-25M18-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$12.99
$11.04
You save $1.95
More details
Plug Cap Assembly
11
Yamaha Motors
Plug Cap Assembly682-82370-00-00
Required: 2
PLUG CAP ASSY
Cross Ship
Leaves in 2-5 days
$32.85
$27.92
You save $4.93
More details
Tube
12
Yamaha Motors
Tube6G1-83557-00-00
Required: 1
TUBE
Supersedes: 6K3-83557-00-00
Cross Ship
Leaves in 2-5 days
$7.20
$6.12
You save $1.08
More details
