2016 International 9.9hp - FT9.9LEX (6EA4) [130] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

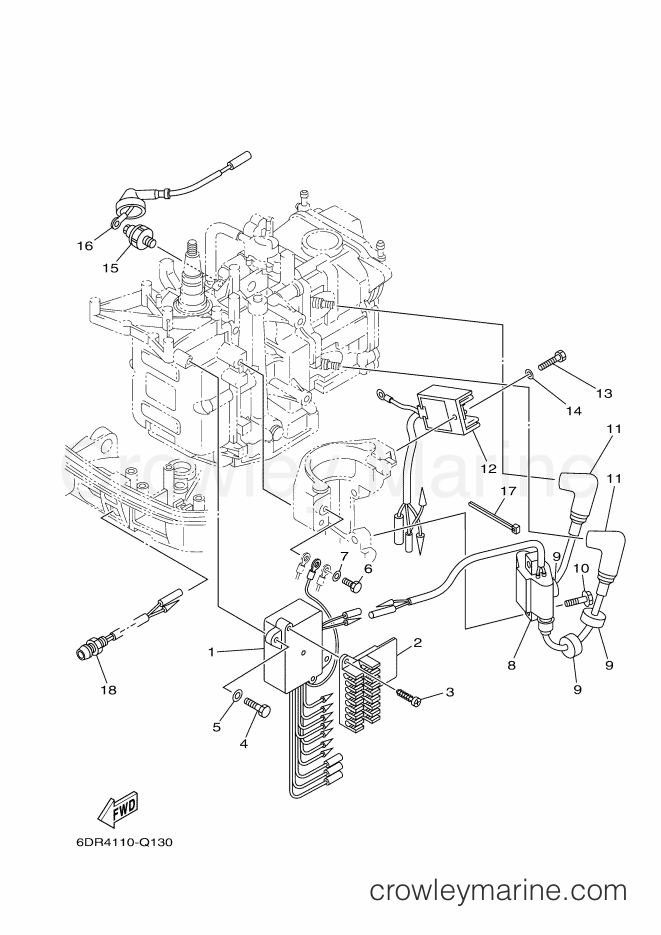

Yamaha Motors FT9.9LEX (6EA4) [130] - ELECTRICAL 1
Change View:
C.D.I. UNIT Assembly
1
Yamaha Motors
C.D.I. UNIT Assembly68T-85540-00-00
Required: 1
C.D.I. UNIT ASSY
Cross Ship
Leaves in 2-5 days
$444.85
$378.12
You save $66.73
More details
Coupler Clamp
2
Yamaha Motors
Coupler Clamp68T-82522-00-00
Required: 1
CLAMP, COUPLER
Cross Ship
Leaves in 2-5 days
$6.85
$5.82
You save $1.03
More details
Tapping Screw
3
Yamaha Motors
Tapping Screw97780-40112-00
Required: 2
SCREW, TAPPING
Supersedes: 97780-40512-00
Cross Ship
Leaves in 2-5 days
$4.20
$3.36
You save $0.84
More details
BOLT
6
Yamaha Motors
BOLT97095-06012-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
Grommet
9
Yamaha Motors
Grommet90480-25003-00
Required: 3
GROMMET
Cross Ship
Leaves in 2-5 days
$5.50
$4.68
You save $0.83
More details
Rectifier & Regulator Assembly
12
Yamaha Motors
Rectifier & Regulator Assembly68T-81960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$157.10
$133.53
You save $23.56
More details
BOLT
13
Yamaha Motors
BOLT97095-06012-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
Oil Pressure Switch Assembly
15
Yamaha Motors
Oil Pressure Switch Assembly67F-82504-00-00
Required: 1
OIL PRESSURE SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$76.25
$64.81
You save $11.44
More details
Wire Lead 2
16
Yamaha Motors
Wire Lead 268T-82127-11-00
Required: 1
WIRE, LEAD 2
Supersedes: 68T-82127-10-00
Cross Ship
Leaves in 2-5 days
$19.30
$16.41
You save $2.89
More details
Emergency Signal Light Assembly
18
Yamaha Motors
Emergency Signal Light Assembly68T-85410-00-00
Required: 1
EMERGENCY SIGNAL LIGHT ASSY
Cross Ship
Leaves in 2-5 days
$52.05
$44.24
You save $7.81
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
