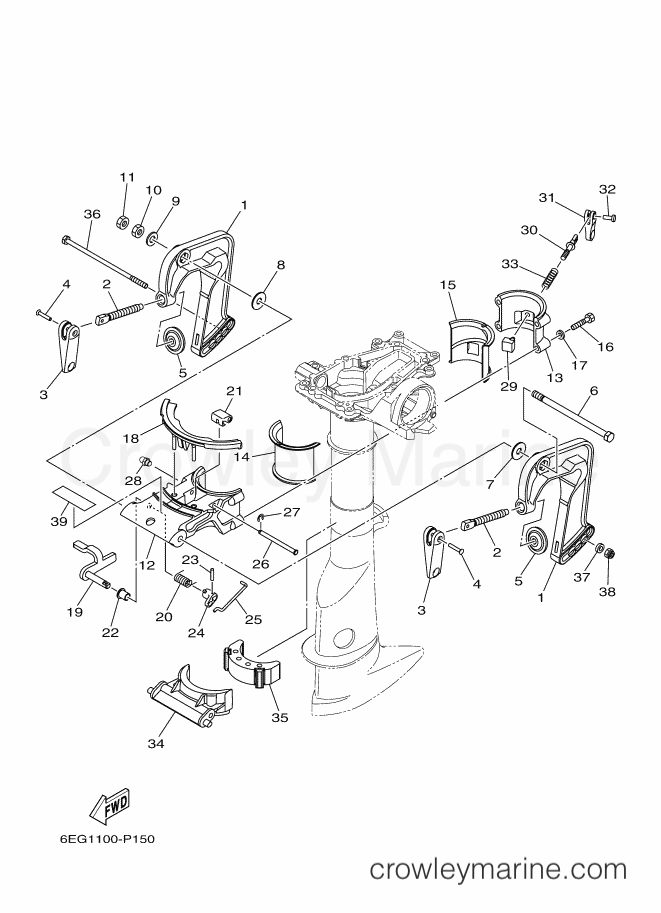

2016 International 2.5hp - F2.5MHB (6EG2) [060] BRACKET diagram
![Yamaha Motors F2.5MHB (6EG2) [060] - BRACKET](https://cdn.crowleymarine.com/yamaha/kJOwGq2o.png)
-50%
1
Yamaha Motors
Clamp Bracket 16EG-G3111-00-8D
Required: 2
BRACKET, CLAMP 1
In stock
Only 1 remaining
$40.05
You save $40.05
2
Yamaha Motors
Transom Clamp Screw6E0-43116-01-00
Required: 2
SCREW, TRANSOM CLAMP
In stock
Only 1 remaining
$26.96
You save $6.74
3
Yamaha Motors
TRANSOM CLAMP HANDLE6EE-G3118-00-00
Required: 2
HANDLE, TRANSOM CLAMP
In stock
5+ in stock
$3.80
You save $0.95
In stock
5+ in stock
$4.76
You save $1.19
5
Yamaha Motors
Transom Clamp Pad648-43114-01-00
Required: 2
PAD, TRANSOM CLAMP
In stock
Only 2 remaining
$11.36
You save $2.84
$11.59
You save $2.90
7
Yamaha Motors
Plate Washer90202-08022-00
Required: 1
WASHER, PLATE
$3.82
You save $0.68
8
Yamaha Motors
Plain Washer90202-08004-00
Required: 1
WASHER, PLATE
$2.42
You save $0.43
9
Yamaha Motors
Plain Washer92990-08200-00
Required: 1
WASHER, PLAIN
In stock
Only 2 remaining
$2.39
You save $0.60
In stock
Only 1 remaining
$6.79
You save $1.70
In stock
Only 2 remaining
$2.84
You save $0.71
12
Yamaha Motors
Swivel Bracket6EG-G3311-00-8D
Required: 1
BRACKET, SWIVEL 1
$76.75
You save $13.55
13
Yamaha Motors
Swivel Bracket 26EG-G3312-00-8D
Required: 1
BRACKET, SWIVEL 2
$34.81
You save $6.14
14
Yamaha Motors
Pivot Shaft Bushing6EG-G2537-00-00
Required: 1
BUSHING, PIVOT SHAFT
$14.58
You save $2.57
15
Yamaha Motors
Pivot Shaft Bushing6EG-G2538-00-00
Required: 1
BUSHING, PIVOT SHAFT
$14.58
You save $2.57
16
Yamaha Motors
Bolt97080-06030-00
Required: 4
BOLT
Supersedes: 97075-06030-00
In stock
5+ in stock
$3.28
You save $0.82
17
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.28
You save $0.57
-50%
In stock
Only 1 remaining
$7.55
You save $7.55
19
Yamaha Motors
Tilt Stop Lever Assembly6EG-G3180-00-00
Required: 1
TILT STOP LEVER ASSY
$60.95
You save $10.76
$7.73
You save $1.37
-50%
In stock
Only 1 remaining
$5.78
You save $5.78
In stock
5+ in stock
$4.44
You save $1.11
$5.44
You save $0.96
24
Yamaha Motors
Tilt Stop Lever, 26EG-G3185-00-00
Required: 1
LEVER, TILT STOP 2
$6.08
You save $1.07
-50%
25
Yamaha Motors
Tilt Lock Rod6EG-G3164-00-00
Required: 1
ROD, TILT LOCK
In stock
Only 1 remaining
$3.48
You save $3.48
-50%
In stock
Only 1 remaining
$2.45
You save $2.45
In stock
Only 3 remaining
$1.59
You save $0.40
28
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
NIPPLE, GREASE
In stock
5+ in stock
$6.60
You save $1.65
-50%
29
Yamaha Motors
PLATE, FRICTION6EG-42528-00-00
Required: 1
PLATE, FRICTION
Supersedes: 69M-42528-00-00
In stock
Only 1 remaining
$8.63
You save $8.63
30
Yamaha Motors
Friction Piece Screw6EG-G2529-00-00
Required: 1
SCREW, FRICTION PIECE
$12.45
You save $2.20
31
Yamaha Motors
Steering Lock Knob6EE-G2561-00-00
Required: 1
KNOB, STEERING LOCK
$5.64
You save $1.41
$3.52
You save $0.88
33
Yamaha Motors
Compression Spring90501-12803-00
Required: 1
SPRING, COMPRESSION
$6.63
You save $1.17
34
Yamaha Motors
RECEIVER, THRUST6EG-43351-00-00
Required: 1
RECEIVER, THRUST
Supersedes: 6EG-G3351-00-00
$18.11
You save $3.20
-50%
35
Yamaha Motors
Lower Front Mount Damper69M-44557-00-00
Required: 1
MOUNT DAMPER, LOWER FRONT
In stock
Only 1 remaining
$39.07
You save $39.07
-50%
In stock
Only 1 remaining
$3.20
You save $3.20
37
Yamaha Motors
Plate Washer90201-06040-00
Required: 1
WASHER, PLATE
In stock
Only 1 remaining
$2.55
You save $0.45
In stock
5+ in stock
$6.54
You save $1.15
-50%
39
Yamaha Motors
Tilt Indicator6EG-G3691-00-00
Required: 1
INDICATOR, TILT
In stock
Only 1 remaining
$1.13
You save $1.13
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
