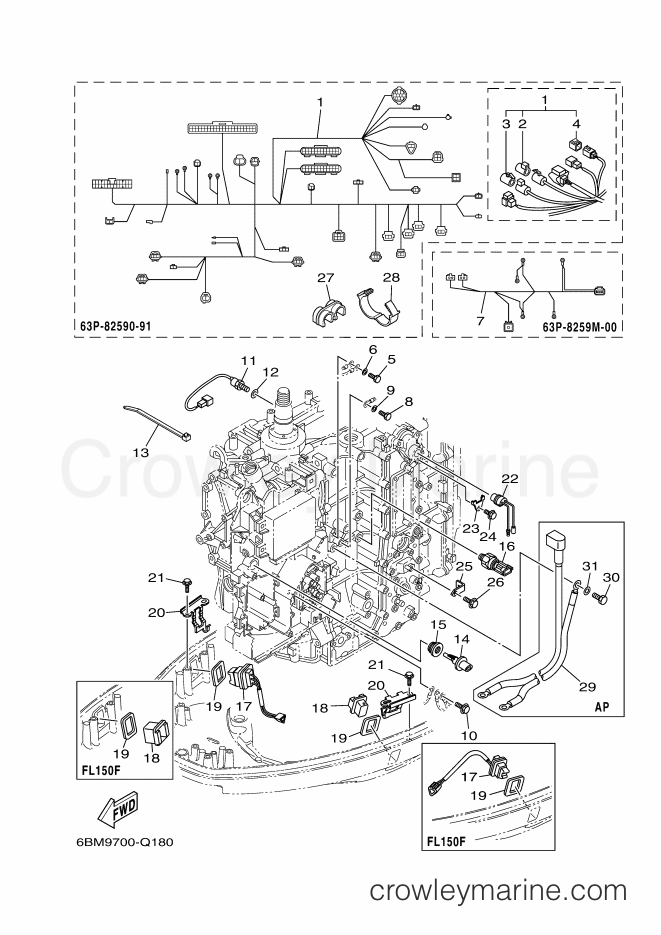

2016 International 150hp - F150FETX (6BM9) [080] ELECTRICAL 3 diagram
![Yamaha Motors F150FETX (6BM9) [080] - ELECTRICAL 3](https://cdn.crowleymarine.com/yamaha/5O9sVmot.png)
1
Required: 1
WIRE HARNESS ASSY
Price unavailable
2
Yamaha Motors
Cap (Female)6DA-82582-00-00
Required: 1
. CAP 1 (FEMALE)
$3.44
You save $0.61
3
Yamaha Motors
Cap (Male)6DA-82582-10-00
Required: 1
. CAP 1 (MALE)
$4.72
You save $0.83
4
Yamaha Motors
Cap (4Pin)6Y8-82582-11-00
Required: 1
. CAP 1 (4PIN)
In stock
Only 4 remaining
$5.95
You save $1.05
$2.21
You save $0.55
6
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.28
You save $0.57
7
Yamaha Motors
Wire Harness Assembly63P-8259M-00-00
Required: 1
WIRE HARNESS ASSY 2
$193.12
You save $34.08
$2.21
You save $0.55
9
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.28
You save $0.57
-50%
10
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06512-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06512-00
In stock
Only 2 remaining
$1.03
You save $1.03
11
Yamaha Motors
THERMOSENSOR ASSY61A-85790-01-00
Required: 1
THERMOSENSOR ASSY
Supersedes: 61A-85790-00-00
In stock
Only 3 remaining
$114.95
You save $29.15
12
Yamaha Motors
Plate Washer92990-10600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.40
You save $0.60
13
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
14
Yamaha Motors
Air Temperature Sensor63P-85886-00-00
Required: 1
SENSOR, AIR TEMPERATURE
$39.06
You save $6.89
$6.29
You save $1.11
16
Yamaha Motors
SENDER, OIL PRESSURE6AW-83651-01-00
Required: 1
SENDER, OIL PRESSURE
Supersedes: 6AW-83651-00-00
$289.95
You save $73.15
17
Yamaha Motors
Trim & Tilt Switch Assembly69J-82563-01-00
Required: 1
TRIM & TILT SWITCH ASSY
In stock
5+ in stock
$51.12
You save $12.78
$29.03
You save $5.12
19
Yamaha Motors
Tank Cap Gasket69J-82587-01-00
Required: 2
GASKET
Supersedes: 69J-82587-00-00
In stock
Only 1 remaining
$4.44
You save $1.11
$19.38
You save $3.42
In stock
Only 5 remaining
$1.45
You save $0.36
22
Yamaha Motors
Thermo Switch Assembly6P2-82560-01-00
Required: 1
THERMO SWITCH ASSY
In stock
Only 5 remaining
$46.40
You save $11.60
$13.43
You save $2.37
In stock
Only 2 remaining
$2.36
You save $0.59
$6.88
You save $1.21
-50%
26
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06512-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06512-00
In stock
Only 2 remaining
$1.03
You save $1.03
-50%
In stock
Only 1 remaining
$1.88
You save $1.88
$1.99
You save $0.35
$321.56
You save $56.75
$4.72
You save $0.83
31
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.16
You save $0.54
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
