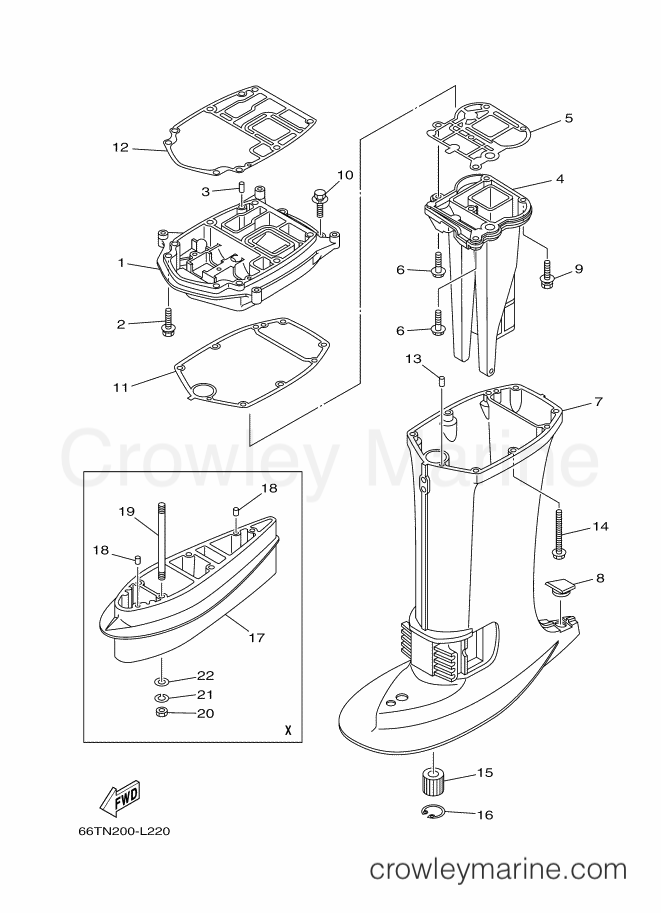

2012 International 40hp - 40XW (66TS) [110] UPPER CASING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 40XW (66TS) [110] - UPPER CASING
Change View:
1
Required: 1
GUIDE, EXHAUST
Price unavailable
Washer with bolt
2
Yamaha Motors
Washer with bolt97575-08430-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-08M79-00
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
4
Required: 1
MANIFOLD, EXT. 1
Price unavailable
4
Required: 1
MANIFOLD, EXT. 1
Price unavailable
5
Required: 1
GASKET, EXHAUST MANIFOLD 1
Price unavailable
BOLT, HEXAGON W/W DE
6
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08530-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97575-08530-00
Cross Ship
Leaves in 2-5 days
$1.90
$1.61
You save $0.28
More details
7
Required: 1
CASING, UPPER
Price unavailable
7
Required: 1
CASING, UPPER
Price unavailable
Cap
8
Yamaha Motors
Cap63D-45155-00-00
Required: 1
CAP
Cross Ship
Leaves in 2-5 days
$10.70
$9.10
You save $1.61
More details
11
Required: 1
GASKET, UPPER CASING
Price unavailable
12
Required: 1
GASKET, UPPER CASING
Price unavailable
14
Required: 6
BOLT, WITH WASHER
Price unavailable
Drive Shaft Bushing
15
Yamaha Motors
Drive Shaft Bushing679-45318-00-00
Required: 1
BUSHING, DRIVE SHAFT
Cross Ship
Leaves in 2-5 days
$22.75
$19.34
You save $3.41
More details
17
Required: 1
EXTENSION
Price unavailable
19
Required: 4
BOLT, STUD
Price unavailable
Nut
20
Yamaha Motors
Nut95380-10600-00
Required: 4
NUT
Cross Ship
Leaves in 2-5 days
$2.80
$2.38
You save $0.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
