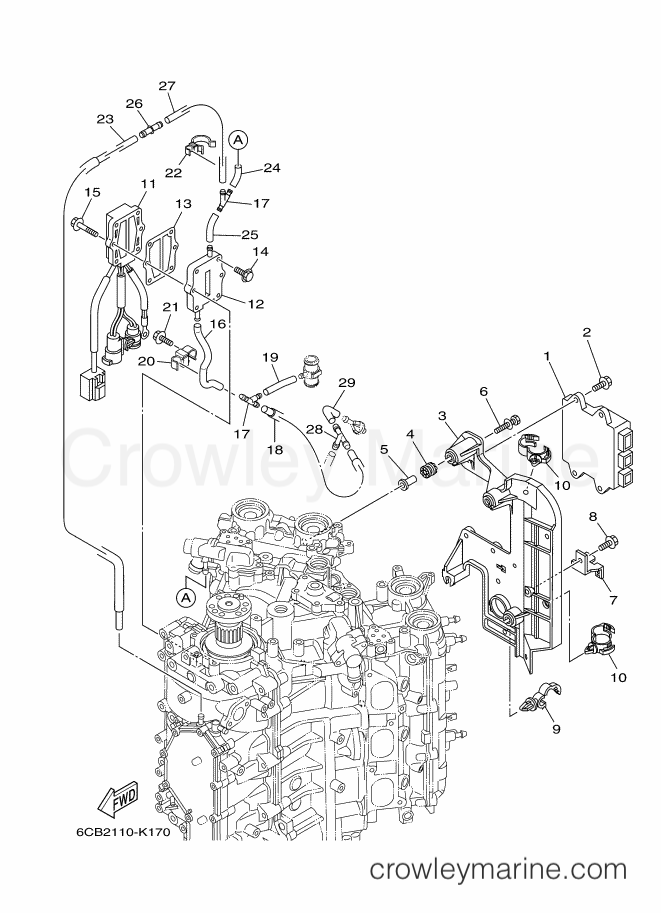

2011 International 225hp - VF225LA-2011 (6CC2) [030] ELECTRICAL 1 diagram

1
Yamaha Motors
ENGINE CONTROL UNIT ASSEMBLY6CD-8591A-04-00
Required: 1
ENGINE CONTROL UNIT ASSY
Supersedes: 6CD-8591A-00-00
$1395.40
You save $246.25

1
Yamaha Motors
Engine Control Unit Assembly6CB-8591A-03-00
Required: 1
ENGINE CONTROL UNIT ASSY
Supersedes: 6CB-8591A-00-00
$1360.04
You save $240.01

1
Yamaha Motors
Engine Control Unit Assembly6CC-8591A-04-00
Required: 1
ENGINE CONTROL UNIT ASSY
Supersedes: 6CC-8591A-00-00
$1307.22
You save $230.68
2
Yamaha Motors
DEEP FLANGE BOLT95D95-06020-00
Required: 4
BOLT, FLANGE
Supersedes: 95895-06020-00
In stock
5+ in stock
$4.55
You save $0.80

3
Yamaha Motors
Ignition Coil Bracket6CB-82316-01-00
Required: 1
BRACKET, IGNITION COIL
$69.45
You save $12.25

4
Yamaha Motors
Spacer64J-85516-01-00
Required: 4
SPACER
Supersedes: 64J-85516-00-00
$1.40
You save $0.25

5
Yamaha Motors
Collar69M-42758-01-00
Required: 4
COLLAR
Supersedes: 69M-42758-00-00
$9.65
You save $1.70

6
Yamaha Motors
Bolt with Washer90119-06293-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06M56-00
In stock
Only 1 remaining
$3.57
You save $0.63
$10.45
You save $1.85

8
Yamaha Motors
DEEP FLANGE BOLT95D95-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95895-06012-00
$0.81
You save $0.14
$3.02
You save $0.53
$4.01
You save $0.71

11
Yamaha Motors
Rectifier and Regulator6CB-81960-01-00
Required: 1
RECTIFIER & REGULATOR ASSY
Supersedes: 6CB-81960-00-00
$394.31
You save $69.58

12
Yamaha Motors
Rectifier Cover6CB-81972-00-9S
Required: 1
COVER, RECTIFIER
$92.78
You save $16.37

13
Yamaha Motors
Rectifier Fitting Plate69J-81975-A0-00
Required: 1
PLATE, RECTIFIER FITTING
$9.10
You save $1.61

14
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 4
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48

15
Yamaha Motors
Bolt w/ Washer90119-06MA5-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$3.02
You save $0.53
$11.65
You save $2.05

17
Yamaha Motors
Joint Pipe6CE-24377-00-00
Required: 2
PIPE, JOINT 2
$6.71
You save $1.19
$14.03
You save $2.47

19
Yamaha Motors
Hose90445-10365-00
Required: 1
HOSE (L30)
Supersedes: 90445-107A5-00
$5.52
You save $0.97
$4.55
You save $0.80
21
Yamaha Motors
Bolt with Washer90119-06274-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-06M29-00
In stock
Only 4 remaining
$2.51
You save $0.44
$4.80
You save $0.85
$10.84
You save $1.91
$8.20
You save $1.45
$8.20
You save $1.45

26
Yamaha Motors
Joint Pipe6CE-24376-01-00
Required: 1
PIPE, JOINT 1
Supersedes: 6CE-24376-00-00
$11.94
You save $2.11
$8.50
You save $1.50

28
Yamaha Motors
Joint Pipe688-24378-00-00
Required: 1
PIPE, JOINT 3
In stock
5+ in stock
$14.03
You save $2.47
$6.33
You save $1.12
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.



![Yamaha Motors VF225LA-2011 (6CC2) [030] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/fG2a5cDV.png)
