All diagrams for this model

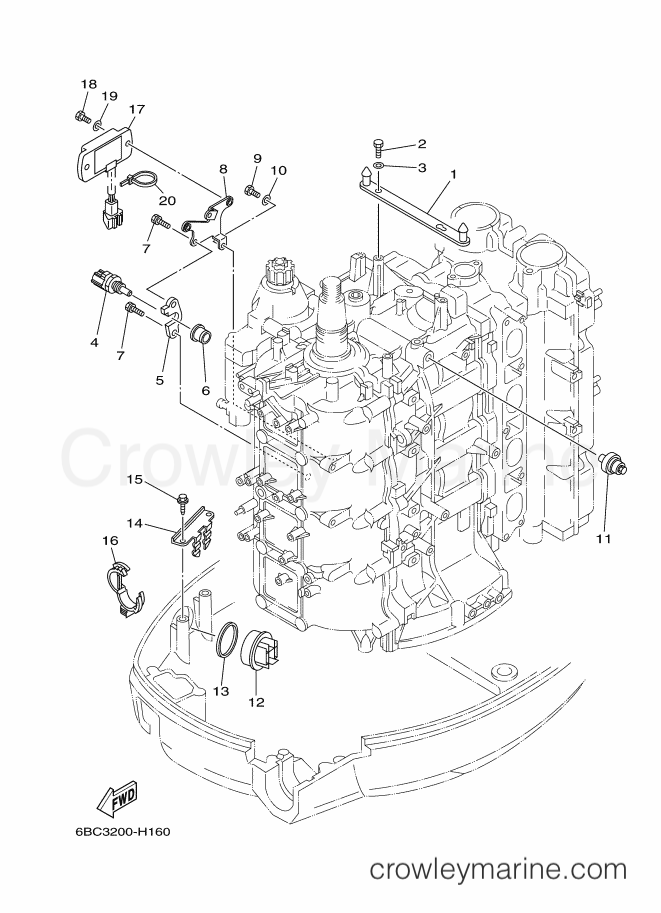

2009 International 75hp - F75CEDL (6BC3) [080] ELECTRICAL 4 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F75CEDL (6BC3) [080] - ELECTRICAL 4
Change View:
Plate
1
Yamaha Motors
Plate6D8-8132G-00-00
Required: 1
PLATE
Cross Ship
Leaves in 2-5 days
$24.75
$21.04
You save $3.71
More details
BOLT, HEXAGON DEEP RECESS
2
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Retainer
5
Yamaha Motors
Retainer67F-85757-00-00
Required: 1
RETAINER
Cross Ship
Leaves in 2-5 days
$14.20
$12.07
You save $2.13
More details
8
Required: 1
BRACKET, METER
Price unavailable
BOLT
9
Yamaha Motors
BOLT97095-06012-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
Bottom Cover
12
Yamaha Motors
Bottom Cover68F-42723-10-8D
Required: 1
COVER, BOTTOM
Cross Ship
Leaves in 2-5 days
$7.80
$6.63
You save $1.17
More details
Bracket
14
Yamaha Motors
Bracket67F-83614-00-00
Required: 1
BRACKET
Cross Ship
Leaves in 2-5 days
$13.35
$11.35
You save $2.00
More details
Clamp
16
Yamaha Motors
Clamp90464-28003-00
Required: 2
CLAMP
Supersedes: 90464-30003-00
Cross Ship
Leaves in 2-5 days
$4.46
$3.79
You save $0.67
More details
17
Required: 1
HOUR METER ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
