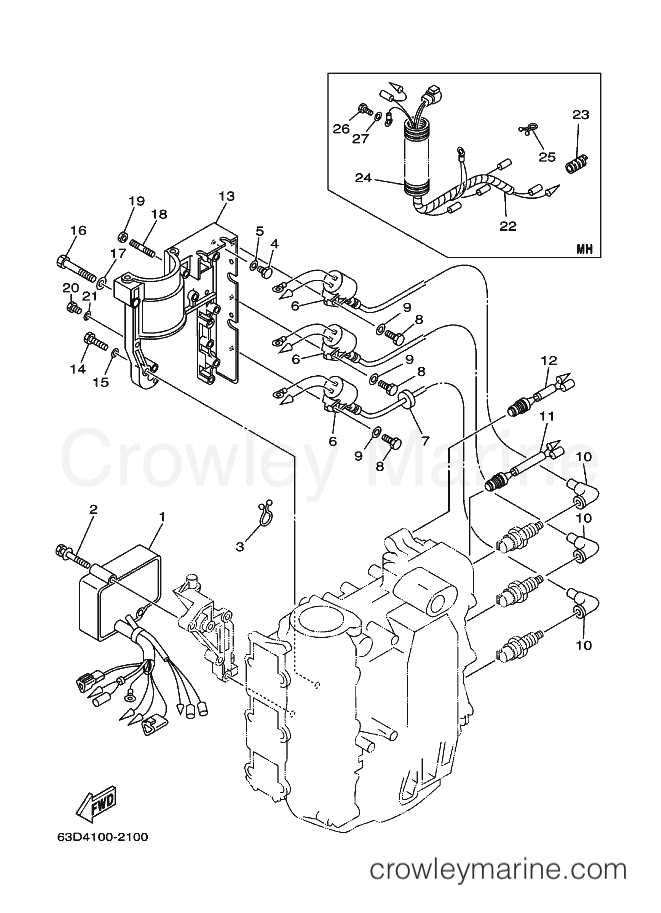

2002 International 40hp - 40V (63B1) [060] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 40V (63B1) [060] - ELECTRICAL 1
Change View:
-50%
C.D.I. UNIT Assembly
1
Yamaha Motors
C.D.I. UNIT Assembly63D-85540-04-00
Required: 1
C.D.I. UNIT ASSY
Supersedes: 63D-85540-03-00
Cross Ship
Leaves in 2-5 days
$690.85
$345.43
You save $345.43
More details
Bolt with Washer
2
Yamaha Motors
Bolt with Washer90119-06M51-00
Required: 2
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Clamp
3
Yamaha Motors
Clamp90464-15M11-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$2.52
$2.14
You save $0.38
More details
Thermo Switch Assembly
11
Yamaha Motors
Thermo Switch Assembly689-82560-00-00
Required: 1
THERMO SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$100.50
$79.95
You save $20.55
More details
Thermo Switch Assembly
12
Yamaha Motors
Thermo Switch Assembly6H4-82560-00-00
Required: 1
THERMO SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$115.60
$91.95
You save $23.65
More details
Starting Motor Bracket
13
Yamaha Motors
Starting Motor Bracket6H4-81822-02-98
Required: 1
BRACKET, STARTING MOTOR
Cross Ship
Leaves in 2-5 days
$137.35
$116.95
You save $20.40
More details
Bolt
16
Yamaha Motors
Bolt97013-08050-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Stud Bolt
18
Yamaha Motors
Stud Bolt95670-06640-00
Required: 1
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Lead Wire
22
Yamaha Motors
Lead Wire63D-82531-00-00
Required: 1
WIRE, LEAD
Cross Ship
Leaves in 2-5 days
$68.30
$58.05
You save $10.25
More details
Tube
24
Yamaha Motors
Tube6G1-83557-00-00
Required: 1
TUBE
Cross Ship
Leaves in 2-5 days
$7.20
$6.12
You save $1.08
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
