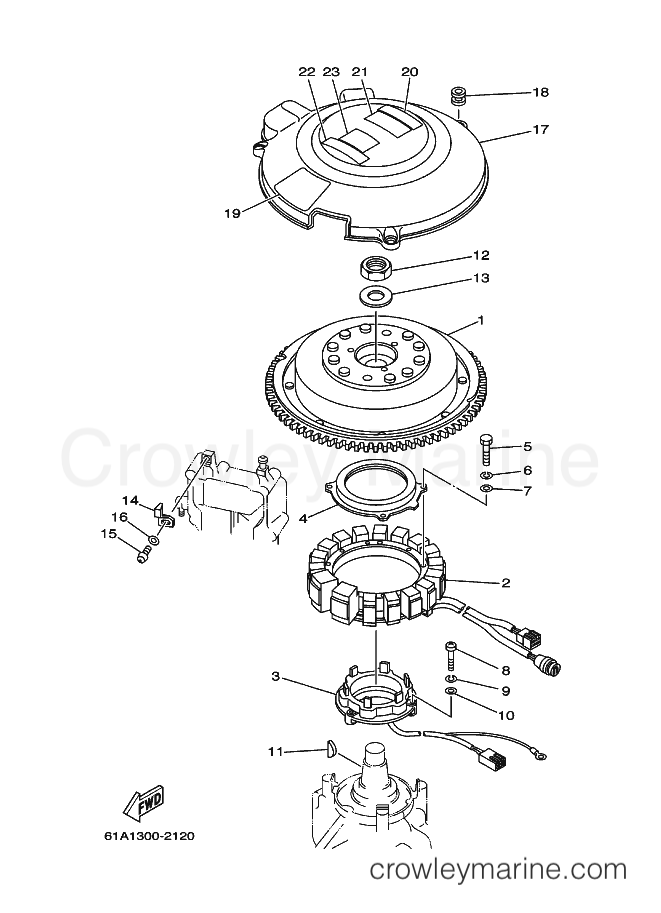

2002 International 250hp - L250A (61B1) [060] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors L250A (61B1) [060] - GENERATOR
Change View:
Rotor Assembly
1
Yamaha Motors
Rotor Assembly61A-85550-01-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$1349.40
$1146.99
You save $202.41
More details
Stator Assembly
2
Yamaha Motors
Stator Assembly65L-85510-10-00
Required: 1
STATOR ASSY
Cross Ship
Leaves in 2-5 days
$838.25
$712.51
You save $125.74
More details
Pulser Coil
3
Yamaha Motors
Pulser Coil61A-85580-01-00
Required: 1
COIL, PULSER
Cross Ship
Leaves in 2-5 days
$490.65
$417.05
You save $73.60
More details
Cover
4
Yamaha Motors
Cover61A-83721-00-00
Required: 1
COVER
Cross Ship
Leaves in 2-5 days
$27.40
$23.29
You save $4.11
More details
.WASHER, SPRING
6
Yamaha Motors
.WASHER, SPRING92990-06100-00
Required: 4
WASHER, SPRING
Supersedes: 92903-06100-00
Cross Ship
Leaves in 2-5 days
$3.45
$2.93
You save $0.52
More details
Pan Head Screw
8
Yamaha Motors
Pan Head Screw98580-05530-00
Required: 3
SCREW, PAN HEAD
Supersedes: 97885-05030-00
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
Nut
12
Yamaha Motors
Nut90170-24M22-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$14.99
$12.74
You save $2.25
More details
Plate Washer
13
Yamaha Motors
Plate Washer90201-25M02-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$7.70
$6.54
You save $1.16
More details
Timing Plate
14
Yamaha Motors
Timing Plate6E5-81332-00-00
Required: 1
PLATE, TIMING
Cross Ship
Leaves in 2-5 days
$23.55
$20.02
You save $3.53
More details
Flywheel Cover
17
Yamaha Motors
Flywheel Cover61A-81337-01-00
Required: 1
COVER, FLYWHEEL
Cross Ship
Leaves in 2-5 days
$42.85
$36.42
You save $6.43
More details
19
Required: 1
LABEL, CAUTION
Price unavailable
Mark
21
Yamaha Motors
Mark6A1-83625-51-00
Required: 1
MARK 5
Cross Ship
Leaves in 2-5 days
$8.25
$7.01
You save $1.24
More details
Mark
22
Yamaha Motors
Mark6K1-83623-41-00
Required: 1
MARK 3
Cross Ship
Leaves in 2-5 days
$12.10
$10.29
You save $1.81
More details
23
Required: 1
MARK 3
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
