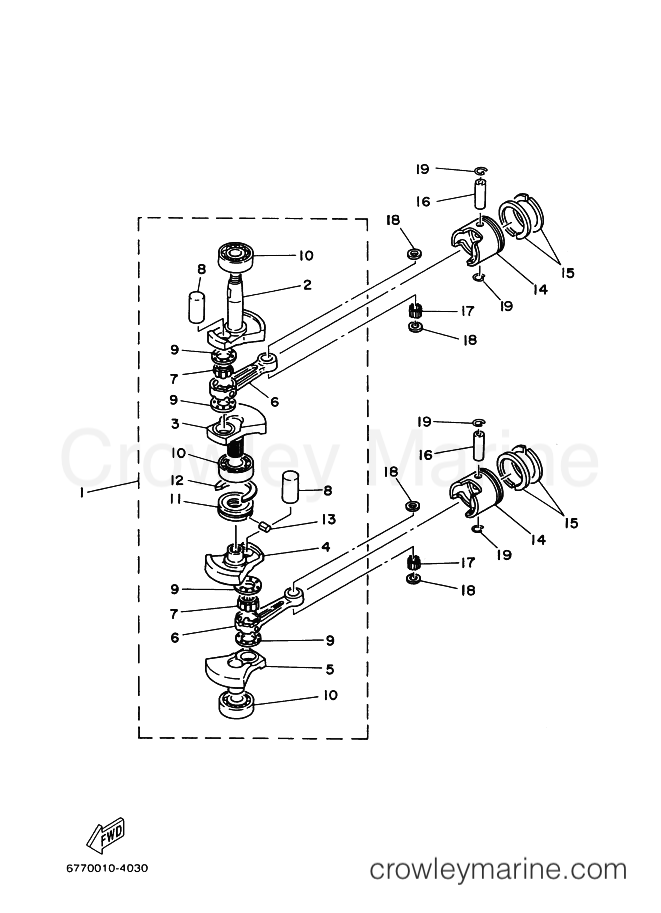

2001 International 8hp - E8D (6770) [040] CRANKSHAFT & PISTON diagram
![Yamaha Motors E8D (6770) [040] - CRANKSHAFT & PISTON](https://cdn.crowleymarine.com/yamaha/JbLlL3cq.png)
1
Required: 1
CRANKSHAFT ASSY
Price unavailable
2
Required: 1
. CRANK 1
Price unavailable
3
Required: 1
. CRANK 2
Price unavailable
4
Required: 1
. CRANK 3
Price unavailable
5
Required: 1
. CRANK 4
Price unavailable
6
Yamaha Motors
Connecting Rod6E0-11651-01-00
Required: 2
. ROD, CONNECTING
$58.27
You save $10.28
7
Required: 2
. BEARING
Price unavailable
8
Yamaha Motors
Crank Pin6G1-11681-00-00
Required: 2
. PIN, CRANK 1
$13.81
You save $2.44
$9.77
You save $1.72
$28.04
You save $4.95
11
Required: 1
. SEAL, LABYRINTH 1
Price unavailable
$4.55
You save $0.80
13
Yamaha Motors
Spring Pin91690-30010-00
Required: 1
. PIN, SPRING
In stock
Only 1 remaining
$5.23
You save $0.92
14
Required: 2
PISTON (STD)
Price unavailable
14
Required: 2
PISTON (0.50MM O/S)
Price unavailable
14
Required: 2
PISTON (0.25MM O/S)
Price unavailable
15
Required: 2
PISTON RING SET (0.50MM O/S)
Price unavailable
15
Required: 2
PISTON RING SET (0.25MM O/S)
Price unavailable
15
Yamaha Motors
PISTON RING STD647-11610-00-00
Required: 2
PISTON RING SET (STD)
$16.06
You save $2.84
16
Yamaha Motors
Piston Pin527-11633-00-00
Required: 2
PIN, PISTON
Supersedes: 6G1-11633-00-00
$16.14
You save $2.85
$0.49
You save $0.09
18
Yamaha Motors
Plate Washer90201-12565-00
Required: 4
WASHER, PLATE
$0.84
You save $0.15
In stock
5+ in stock
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
