All diagrams for this model

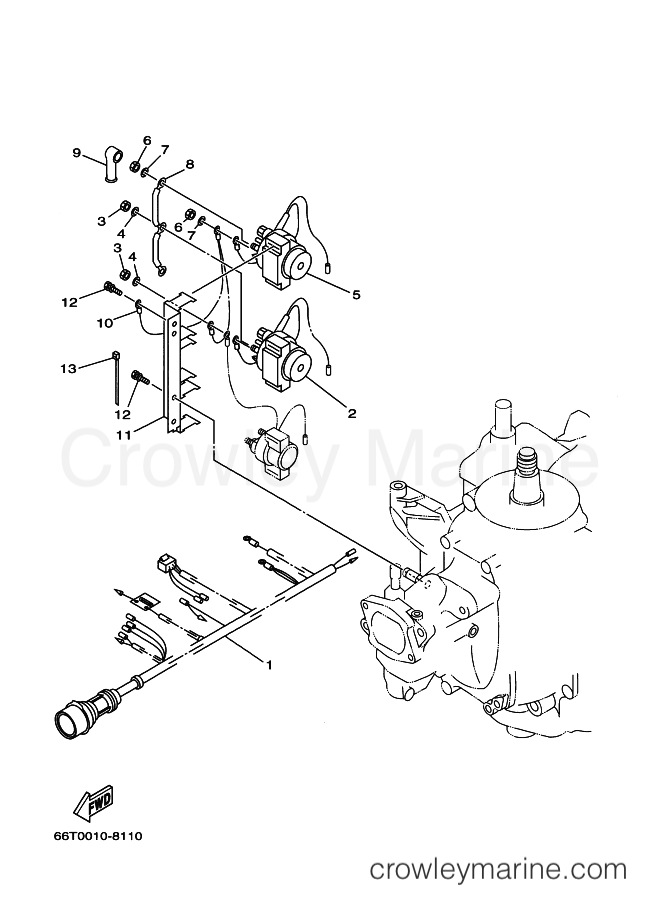

2000 International 40hp - (E)40X (66T) [270] ELECTRICAL 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors (E)40X (66T) [270] - ELECTRICAL 3
Change View:
1
Required: 1
WIRE HARNESS ASSY
Price unavailable
Relay Assembly
2
Yamaha Motors
Relay Assembly6E5-8195B-01-00
Required: 1
RELAY ASSY
Cross Ship
Leaves in 2-5 days
$173.30
$147.31
You save $26.00
More details
Nut
3
Yamaha Motors
Nut90170-06M30-00
Required: 3
NUT
Cross Ship
Leaves in 2-5 days
$2.55
$2.17
You save $0.38
More details
Nut
6
Yamaha Motors
Nut90170-06M30-00
Required: 3
NUT
Cross Ship
Leaves in 2-5 days
$2.55
$2.17
You save $0.38
More details
Connector
8
Yamaha Motors
Connector66T-87149-00-00
Required: 1
CONNECTOR
Cross Ship
Leaves in 2-5 days
$19.55
$16.62
You save $2.93
More details
WIRE, MINUS LEAD
10
Yamaha Motors
WIRE, MINUS LEAD6E5-82116-01-00
Required: 1
WIRE, MINUS LEAD
Supersedes: 6E5-82116-00-00
Cross Ship
Leaves in 2-5 days
$19.55
$16.62
You save $2.93
More details
11
Required: 1
BRACKET
Price unavailable
BOLT, HEXAGON W/W DE
12
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06516-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06516-00
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
