All diagrams for this model

2000 International 40hp - (E)40X (66T) [180] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

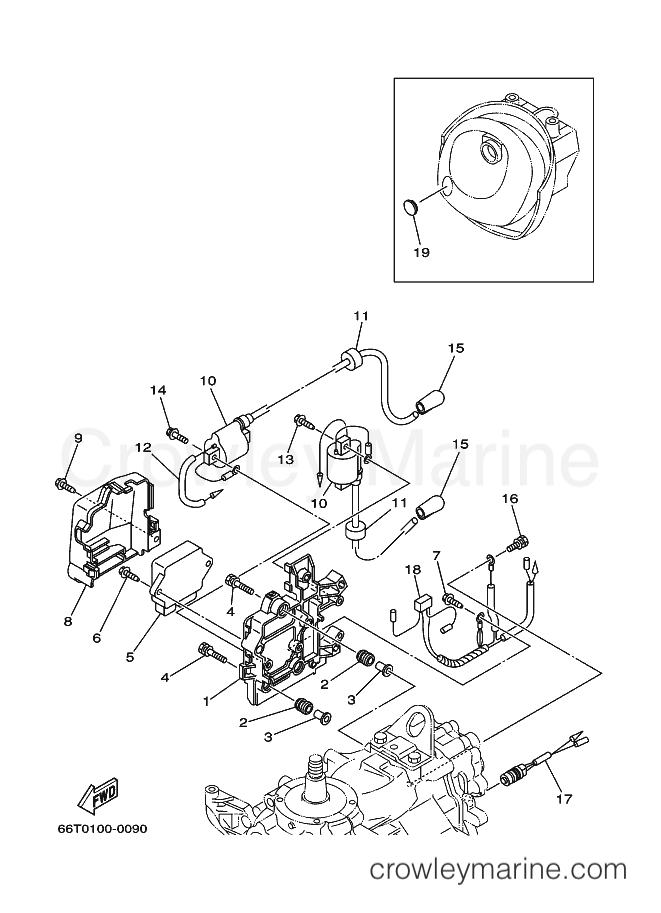

Yamaha Motors (E)40X (66T) [180] - ELECTRICAL 1
Change View:
1
Required: 1
BRACKET
Price unavailable
Bolt with Washer
4
Yamaha Motors
Bolt with Washer90119-06294-00
Required: 3
BOLT, WITH WASHER
Supersedes: 90119-06M65-00
Cross Ship
Leaves in 6-30 days
$2.00
$1.60
You save $0.40
More details
5
Required: 1
C.D.I. UNIT ASSY
Price unavailable
8
Required: 1
COVER, TERMINAL
Price unavailable
10
Required: 2
IGNITION COIL ASSY
Price unavailable
12
Required: 1
HOSE
Price unavailable
BOLT, HEXAGON W/W DE
14
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06525-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06525-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
Plug Cap Assembly
15
Yamaha Motors
Plug Cap Assembly66T-82370-00-00
Required: 2
PLUG CAP ASSY
Cross Ship
Leaves in 2-5 days
$34.49
$29.32
You save $5.17
More details
18
Required: 1
WIRE, EARTH LEAD
Price unavailable
GROMMET, WATER TUBE (UPPER)
19
Yamaha Motors
GROMMET, WATER TUBE (UPPER)6G1-42725-01-00
Required: 1
GROMMET
Supersedes: 6G1-42725-00-00
Cross Ship
Leaves in 2-5 days
$10.70
$8.56
You save $2.14
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
