2000 International 40hp - 40V (63B) [060] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

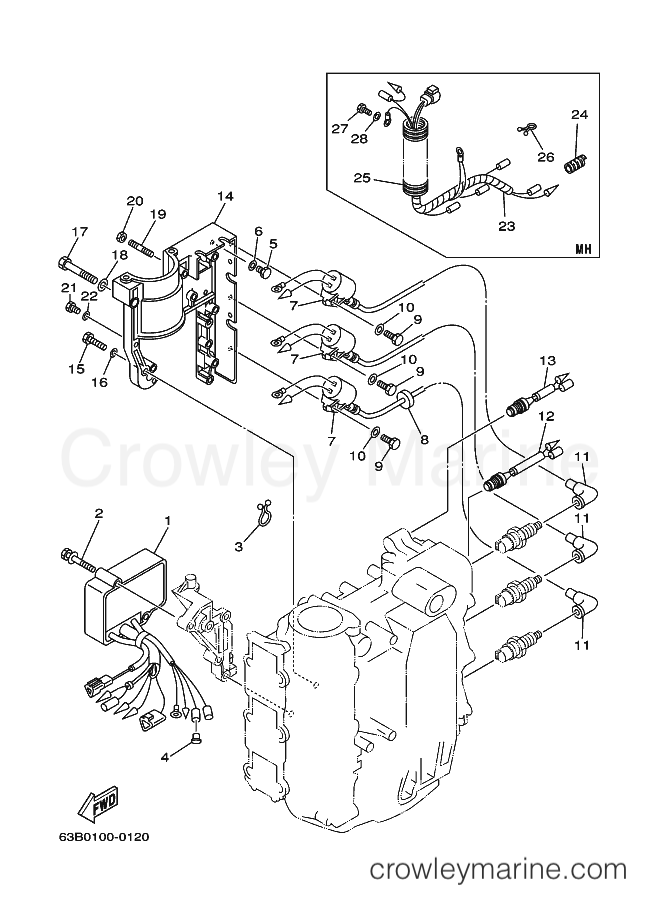

Yamaha Motors 40V (63B) [060] - ELECTRICAL 1
Change View:
C.D.I. UNIT ASSY
1
Yamaha Motors
C.D.I. UNIT ASSY63D-85540-02-00
Required: 1
C.D.I. UNIT ASSY
Supersedes: 63D-85540-01-00
Cross Ship
Leaves in 2-5 days
$690.85
$587.22
You save $103.63
More details
Bolt with Washer
2
Yamaha Motors
Bolt with Washer90119-06M51-00
Required: 2
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Clamp
3
Yamaha Motors
Clamp90464-15M11-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$2.52
$2.14
You save $0.38
More details
Lead Wire Cover
4
Yamaha Motors
Lead Wire Cover703-82119-00-00
Required: 1
COVER, LEAD WIRE
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Thermo Switch Assembly
12
Yamaha Motors
Thermo Switch Assembly689-82560-00-00
Required: 1
THERMO SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$100.50
$85.42
You save $15.08
More details
Thermo Switch Assembly
13
Yamaha Motors
Thermo Switch Assembly6H4-82560-00-00
Required: 1
THERMO SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$115.60
$98.26
You save $17.34
More details
Starting Motor Bracket
14
Yamaha Motors
Starting Motor Bracket6H4-81822-02-98
Required: 1
BRACKET, STARTING MOTOR
Cross Ship
Leaves in 2-5 days
$137.35
$116.75
You save $20.60
More details
Bolt
17
Yamaha Motors
Bolt97013-08050-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Stud Bolt
19
Yamaha Motors
Stud Bolt95670-06640-00
Required: 1
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Lead Wire
23
Yamaha Motors
Lead Wire63D-82531-00-00
Required: 1
WIRE, LEAD
Cross Ship
Leaves in 2-5 days
$68.30
$58.05
You save $10.25
More details
Tube
25
Yamaha Motors
Tube6G1-83557-00-00
Required: 1
TUBE
Cross Ship
Leaves in 2-5 days
$7.20
$6.12
You save $1.08
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
