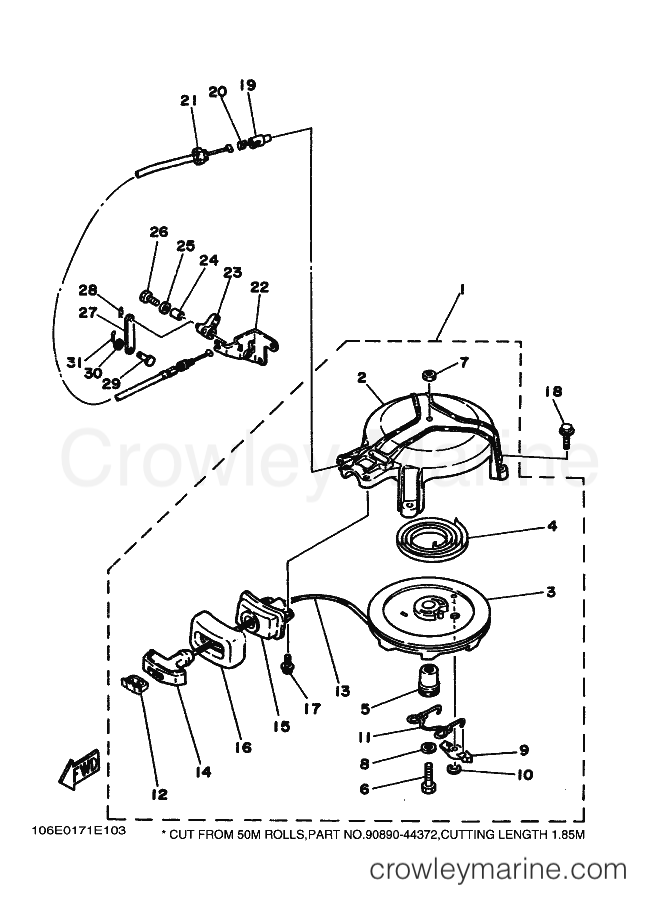

1990 International 4hp - 4AC (6E0) [040] STARTER diagram

1
Yamaha Motors
Starter Motor Assembly6E4-15710-77-00
Required: 1
STARTER ASSY
Supersedes: 6E0-15710-72-94
$242.25
You save $42.75

2
Yamaha Motors
Starter Case6E4-15711-72-00
Required: 1
.CASE, starter
Supersedes: 6E4-15711-71-94
$51.21
You save $9.04

3
Yamaha Motors
Sheave Drum6E0-15714-01-00
Required: 1
.DRUM, sheave
$37.40
You save $6.60

4
Yamaha Motors
Spiral Spring90510-08M03-00
Required: 1
.SPRING, spiral
$24.06
You save $4.25

5
Yamaha Motors
SHAFT, STARTER6E0-15717-01-00
Required: 1
.SHAFT, starter
Supersedes: 6E0-15717-00-00
In stock
Only 1 remaining
$11.43
You save $2.02

6
Yamaha Motors
Hexagon Bolt97014-06035-00
Required: 1
.BOLT
Supersedes: 97013-06035-00
In stock
5+ in stock
$2.25
You save $0.40

7
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 1
.NUT
Supersedes: 95303-06600-00
In stock
5+ in stock
$4.08
You save $0.72

8
Yamaha Motors
Plate Washer90201-06M30-00
Required: 1
.WASHER, plate
$2.17
You save $0.38
In stock
Only 4 remaining
$10.67
You save $1.88
In stock
Only 5 remaining
$3.02
You save $0.53

11
Yamaha Motors
Drive Pawl Spring6E0-15705-00-00
Required: 1
.SPRING, drive pawl
In stock
Only 1 remaining
$12.66
You save $2.24
$3.95
You save $0.70
13
Required: 1
.WIRE (L1850)
Price unavailable

14
Yamaha Motors
Starter Handle6G1-15755-00-00
Required: 1
.HANDLE, starter
In stock
Only 3 remaining
$12.15
You save $2.14
$48.32
You save $8.53

16
Yamaha Motors
SEAL RUBBER 16E0-15761-01-00
Required: 1
.SEAL, rubber 1
Supersedes: 6E0-15761-00-00
$18.06
You save $3.19
17
Yamaha Motors
DEEP FLANGE BOLT95D95-06016-00
Required: 2
.BOLT, flange
Supersedes: 95895-06016-00
In stock
5+ in stock
$0.81
You save $0.14
18
Yamaha Motors
DEEP FLANGE BOLT95D95-06020-00
Required: 3
BOLT, flange
Supersedes: 95895-06020-00
In stock
5+ in stock
$4.55
You save $0.80

19
Yamaha Motors
Starter Stop Plunger656-15748-00-00
Required: 1
PLUNGER, starter stop
In stock
Only 5 remaining
$11.43
You save $2.02

20
Yamaha Motors
Compression Spring90501-10227-00
Required: 1
SPRING, compression
In stock
Only 1 remaining
$6.54
You save $1.16

21
Yamaha Motors
Starter Stop Cable Complete6E4-15770-70-00
Required: 1
CABLE COMP., starter stop
$13.30
You save $2.35

22
Yamaha Motors
Stay6E0-15772-71-00
Required: 1
STAY 2
Supersedes: 6E0-15772-70-00
$10.45
You save $1.85
$19.80
You save $3.50
$6.71
You save $1.19

25
Yamaha Motors
Plain Washer90201-06052-00
Required: 1
WASHER, plate
In stock
Only 5 remaining
$2.13
You save $0.38
$3.82
You save $0.68
$10.50
You save $1.85
$6.08
You save $1.07
In stock
Only 1 remaining
$5.23
You save $0.92

30
Yamaha Motors
Plate Washer90202-05088-00
Required: 1
WASHER, plate
In stock
Only 2 remaining
$6.54
You save $1.16
$2.29
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.



![Yamaha Motors 4AC (6E0) [040] - STARTER](https://cdn.crowleymarine.com/yamaha/gXdr9p2Z.png)
