2014 Generator 7200 - EF7200D CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

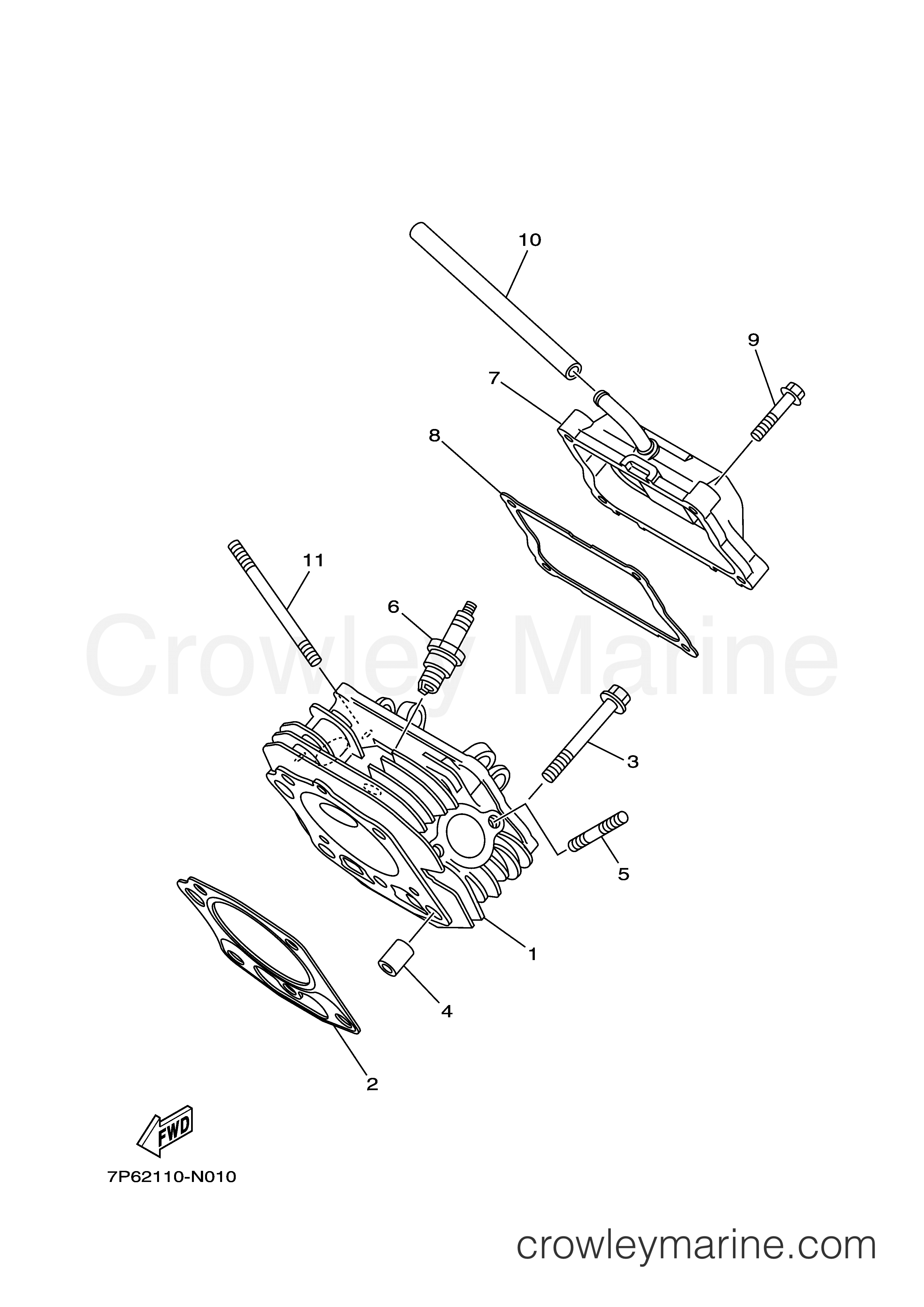

Yamaha Motors EF7200D - CYLINDER
Change View:
1
Required: 1
HEAD, CYLINDER 1
Price unavailable
2
Required: 1
GASKET, CYLINDER HEAD 1
Price unavailable
Flange Bolt
3
Yamaha Motors
Flange Bolt 95811-10070-00
Required: 5
BOLT, FLANGE
Supersedes: 95812-10070-00
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Bolt Stud (95627-08618-00)
5
Yamaha Motors
Bolt Stud (95627-08618-00)95617-08618-00
Required: 2
BOLT, STUD
Supersedes: 95622-08618-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
7
Required: 1
COVER, CYLINDER HEAD 1
Price unavailable
8
Required: 1
GASKET, HEAD COVER 1
Price unavailable
Flange Bolt
9
Yamaha Motors
Flange Bolt95822-06030-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.70
$1.44
You save $0.26
More details
10
Required: 1
PIPE, BREATHER 1
Price unavailable
Stud Bolt
11
Yamaha Motors
Stud Bolt95602-08700-00
Required: 2
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
