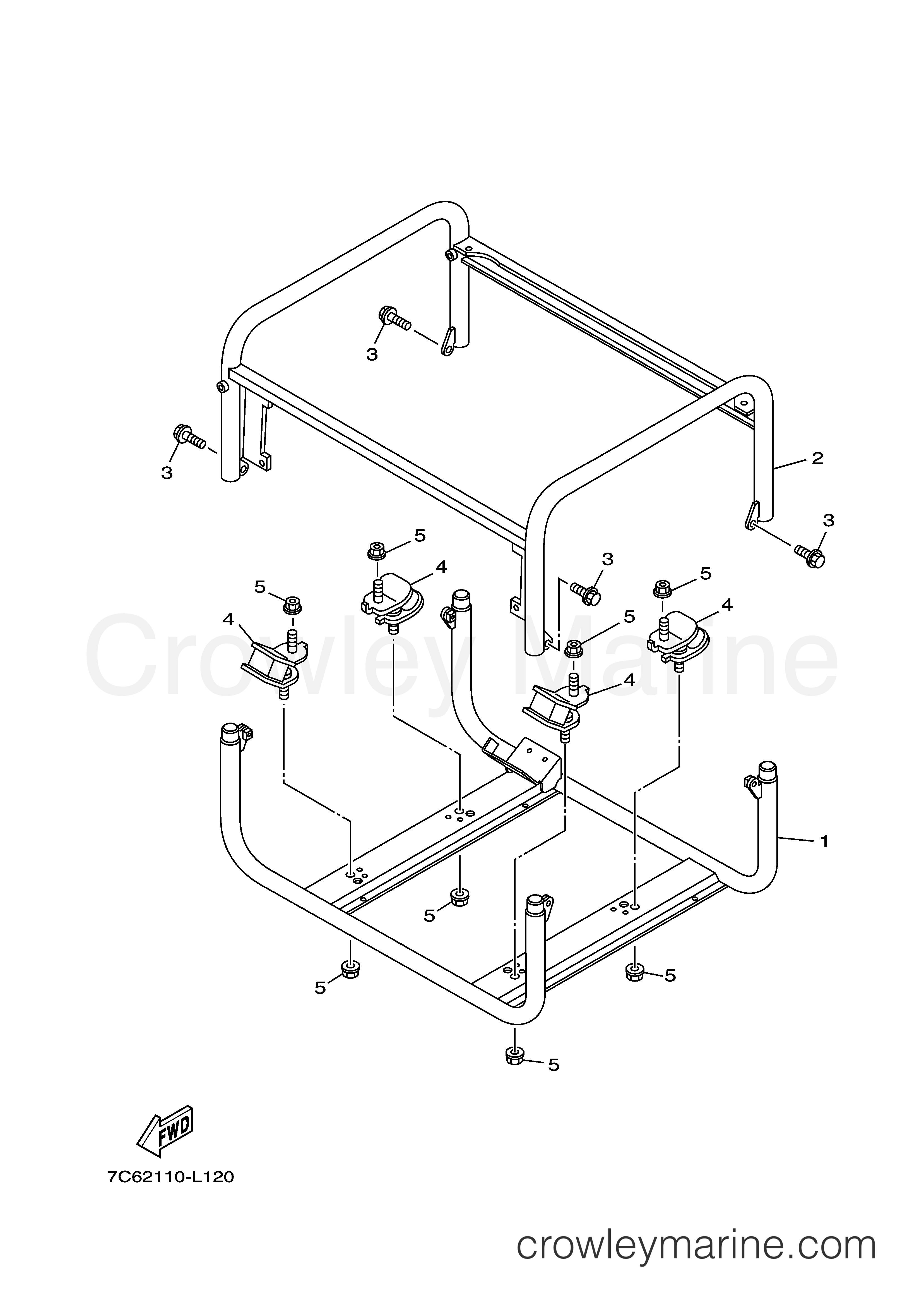

2012 Generator 4000 - EF4000DEQ FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EF4000DEQ - FRAME
Change View:
Frame Complete
1
Yamaha Motors
Frame Complete7C5-F2840-00-00
Required: 1
FRAME COMP.
Cross Ship
Leaves in 2-5 days
$211.99
$180.19
You save $31.80
More details
2
Required: 1
FRAME COMP. 2
Price unavailable
95817-06010-00
3
Yamaha Motors
95817-06010-0095812-06010-00
Required: 4
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
4
Required: 4
INSULATOR, MOUNTING
Price unavailable
Flange Nut
5
Yamaha Motors
Flange Nut95702-10500-00
Required: 8
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.20
$0.17
You save $0.03
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
