All diagrams for this model

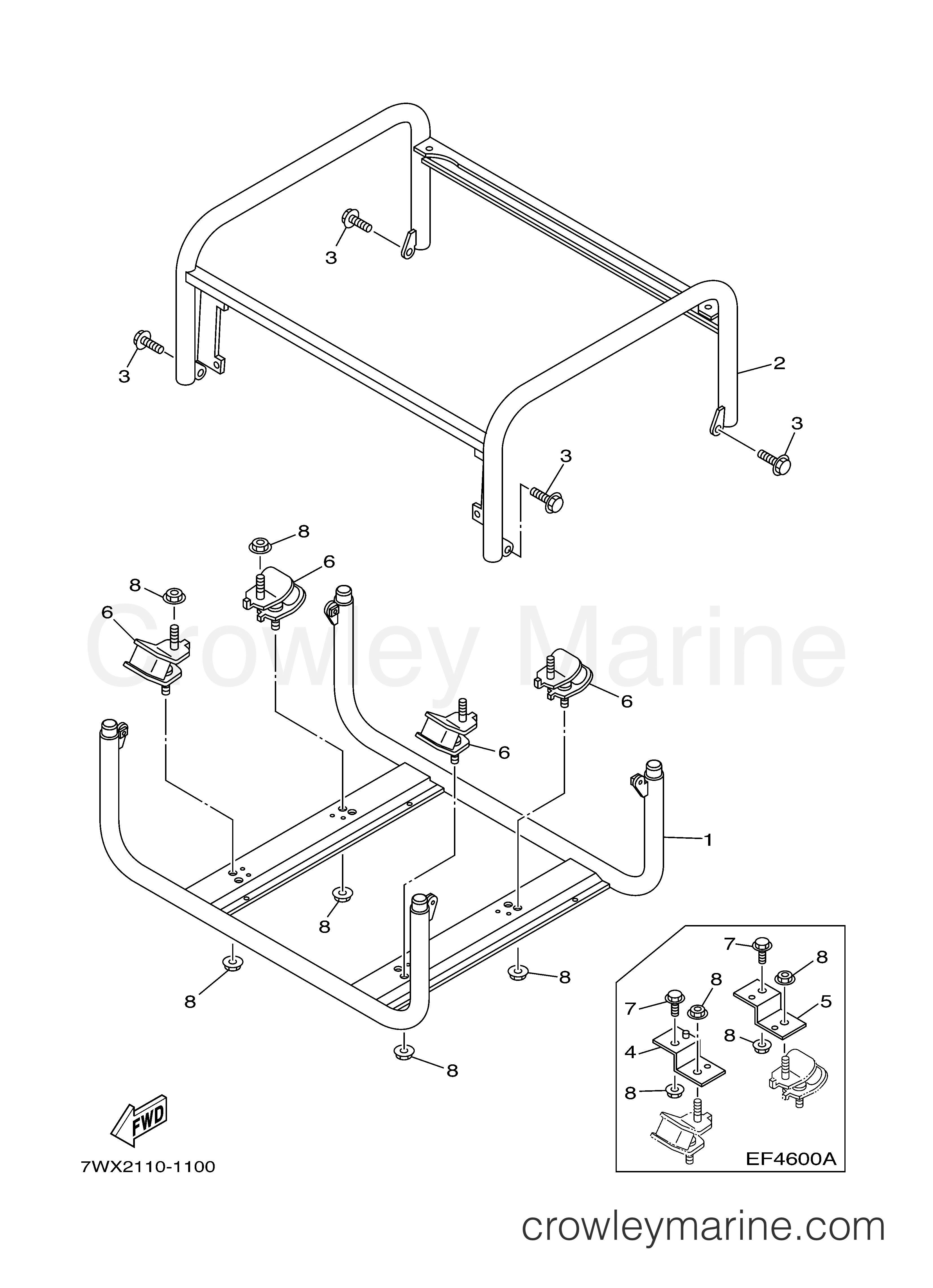

2001 Generator 4600 - EF4600A FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EF4600A - FRAME
Change View:
Frame Complete
1
Yamaha Motors
Frame Complete7RH-22840-00-00
Required: 1
FRAME COMP.
Cross Ship
Leaves in 2-5 days
$158.99
$135.14
You save $23.85
More details
Frame Complete
2
Yamaha Motors
Frame Complete7UW-22850-00-00
Required: 1
FRAME COMP. 2
Cross Ship
Leaves in 2-5 days
$195.99
$166.59
You save $29.40
More details
Engine Bracket
4
Yamaha Motors
Engine Bracket7RG-11011-00-00
Required: 1
BRACKET, ENGINE 1
Cross Ship
Leaves in 2-5 days
$9.99
$8.49
You save $1.50
More details
Engine Bracket
5
Yamaha Motors
Engine Bracket7RG-11012-00-00
Required: 1
BRACKET, ENGINE 2
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Mounting Insulator
6
Yamaha Motors
Mounting Insulator7RH-22891-00-00
Required: 4
INSULATOR, MOUNTING
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
Flange Bolt
7
Yamaha Motors
Flange Bolt95817-10030-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-10030-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
