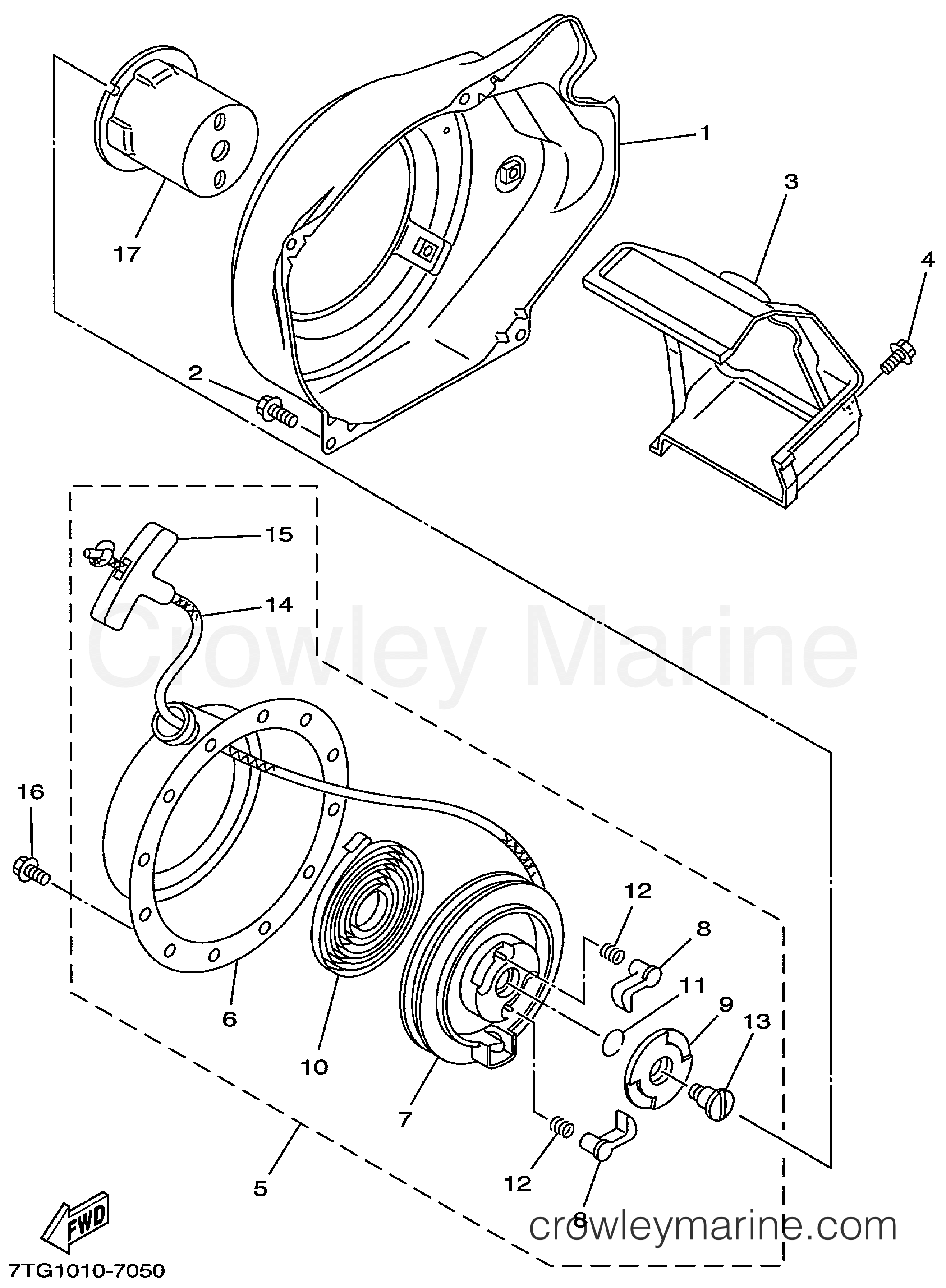

1999 Generator 2600 - EF2600A AIR SHROUD STARTER diagram
1
Yamaha Motors
Fan Case7CN-E2621-01-00
Required: 1
CASE, FAN
Supersedes: 7NJ-12621-00-00
$39.09
You save $6.90

2
Yamaha Motors
Flange Bolt95817-06012-00
Required: 4
BOLT, FLANGE
Supersedes: 95807-06012-00
In stock
5+ in stock
$1.66
You save $0.29

3
Yamaha Motors
Cylinder Air Shroud7NJ-12651-02-00
Required: 1
AIR SHROUD, CYLINDER 1
Supersedes: 7NJ-12651-01-00
$17.84
You save $3.15

4
Yamaha Motors
Flange Bolt95817-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06012-00
In stock
5+ in stock
$1.66
You save $0.29

5
Yamaha Motors
Starter Assembly99999-03866-00
Required: 1
STARTER ASSY
Supersedes: 7NJ-15710-01-00
$53.54
You save $9.45

6
Yamaha Motors
Starter Case7NJ-15711-00-00
Required: 1
.CASE, STARTER
$50.14
You save $8.85

7
Yamaha Motors
Sheave DrumJL8-15714-00-00
Required: 1
.DRUM, SHEAVE
$16.99
You save $3.00
$2.79
You save $0.49

9
Yamaha Motors
Drive PlateJL8-15716-00-00
Required: 1
.PLATE, DRIVE
$8.23
You save $1.45

10
Yamaha Motors
Starter Spring7NJ-15713-00-00
Required: 1
.SPRING, STARTER
$21.24
You save $3.75

11
Yamaha Motors
Friction Spring7TA-15715-00-00
Required: 1
.SPRING, FRICTION
Supersedes: JL8-15715-00-00
$3.10
You save $0.55

12
Yamaha Motors
Return SpringJK4-15743-00-00
Required: 2
.SPRING, RETURN
$1.22
You save $0.21
$7.22
You save $1.27

14
Yamaha Motors
Rope7EG-15781-00-00
Required: 1
.ROPE, STARTER (50X1500)
Supersedes: 7NJ-15751-01-00
$10.62
You save $1.87

15
Yamaha Motors
Starter Handle7LV-15755-00-00
Required: 1
.HANDLE, STARTER
$10.19
You save $1.80
16
Yamaha Motors
Flange Bolt95817-06008-00
Required: 3
BOLT, FLANGE
Supersedes: 95807-06008-00
In stock
Only 2 remaining
$8.07
You save $1.42

17
Yamaha Motors
Starter Pulley7NJ-15723-00-00
Required: 1
PULLEY, STARTER
$21.24
You save $3.75
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
