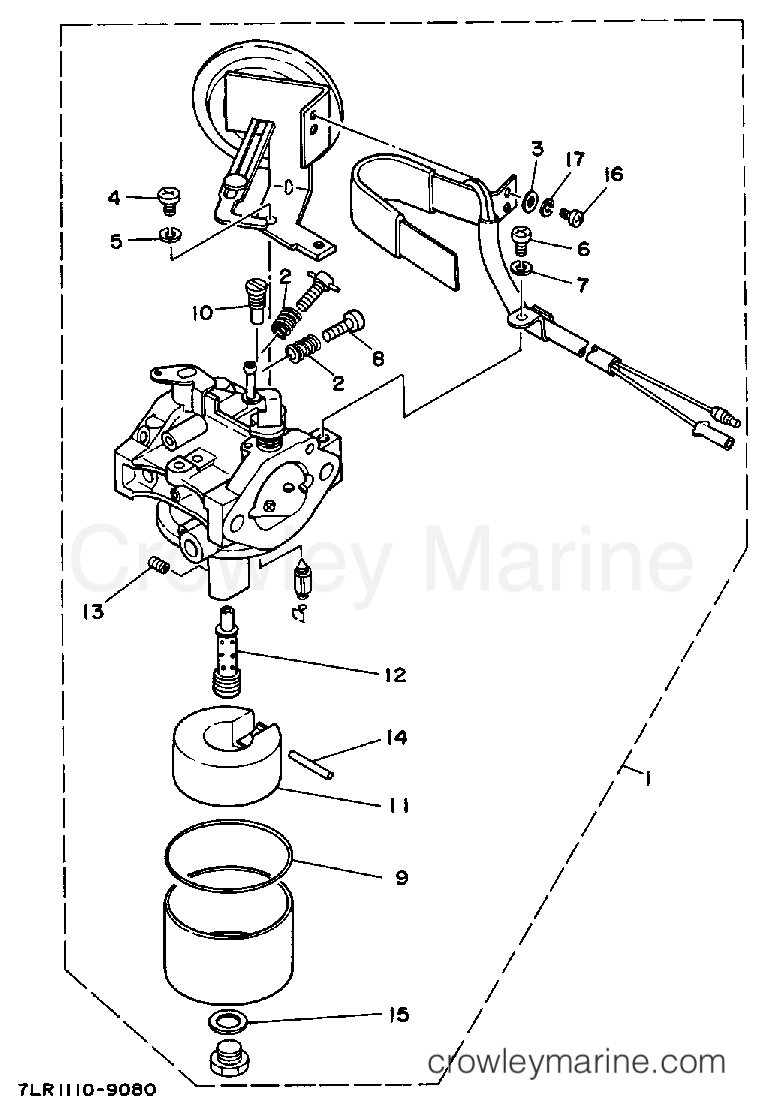

1998 Generator 3800 - EF3800DV CARBURETOR 2 (AUTO CHOKE) diagram
1
Yamaha Motors
Obsolete Yamaha PartYF1-26374-40-12
Required: 1
CARBURETOR ASSEMBLY
Supersedes: 7LP-14101-00-00
$550.79
You save $97.20
$2.80
You save $0.50
3
Yamaha Motors
Washer (3SX)92907-03600-00
Required: 2
.WASHER, PLATE
Supersedes: 92902-03600-00
$8.07
You save $1.42
4
Yamaha Motors
Screw97885-05010-00
Required: 1
.SCREW, PAN HEAD
Supersedes: 98580-05010-00
In stock
Only 2 remaining
$2.59
You save $0.46
5
Yamaha Motors
Spring Washer92990-05100-00
Required: 1
.WASHER, SPRING
In stock
Only 5 remaining
$0.28
You save $0.07
6
Yamaha Motors
.SCREW, PAN HEAD97802-04008-00
Required: 1
.SCREW, PAN HEAD
Supersedes: 98580-04008-00
In stock
Only 2 remaining
$1.60
You save $0.40
7
Yamaha Motors
Spring Washer92990-04100-00
Required: 1
.WASHER, SPRING
Supersedes: 92901-04100-00
In stock
5+ in stock
$0.81
You save $0.14
$3.40
You save $0.60
9
Yamaha Motors
Float Chamber Gasket796-14184-00-00
Required: 1
.GASKET, FLOAT CHAMBER
In stock
Only 3 remaining
$8.39
You save $2.10
10
Yamaha Motors
Obsolete Yamaha Part620-14142-67-A0
Required: 1
.JET, PILOT (#675)
Supersedes: 620-14142-67-00
$5.34
You save $0.15
$39.94
You save $7.05
12
Yamaha Motors
Main Nozzle7LR-14941-30-00
Required: 1
.NOZZLE, MAIN
$16.13
You save $2.36
13
Yamaha Motors
Main Jet830-1423E-45-00
Required: 1
.JET, MAIN (#1138)
$10.62
You save $1.87
$2.63
You save $0.47
$6.79
You save $1.70
-50%
16
Yamaha Motors
Pan Head Screw98580-03006-00
Required: 2
.SCREW, PAN HEAD
In stock
Only 2 remaining
$5.25
You save $5.25
17
Yamaha Motors
Spring Washer92990-03100-00
Required: 2
.WASHER, SPRING
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
