All diagrams for this model

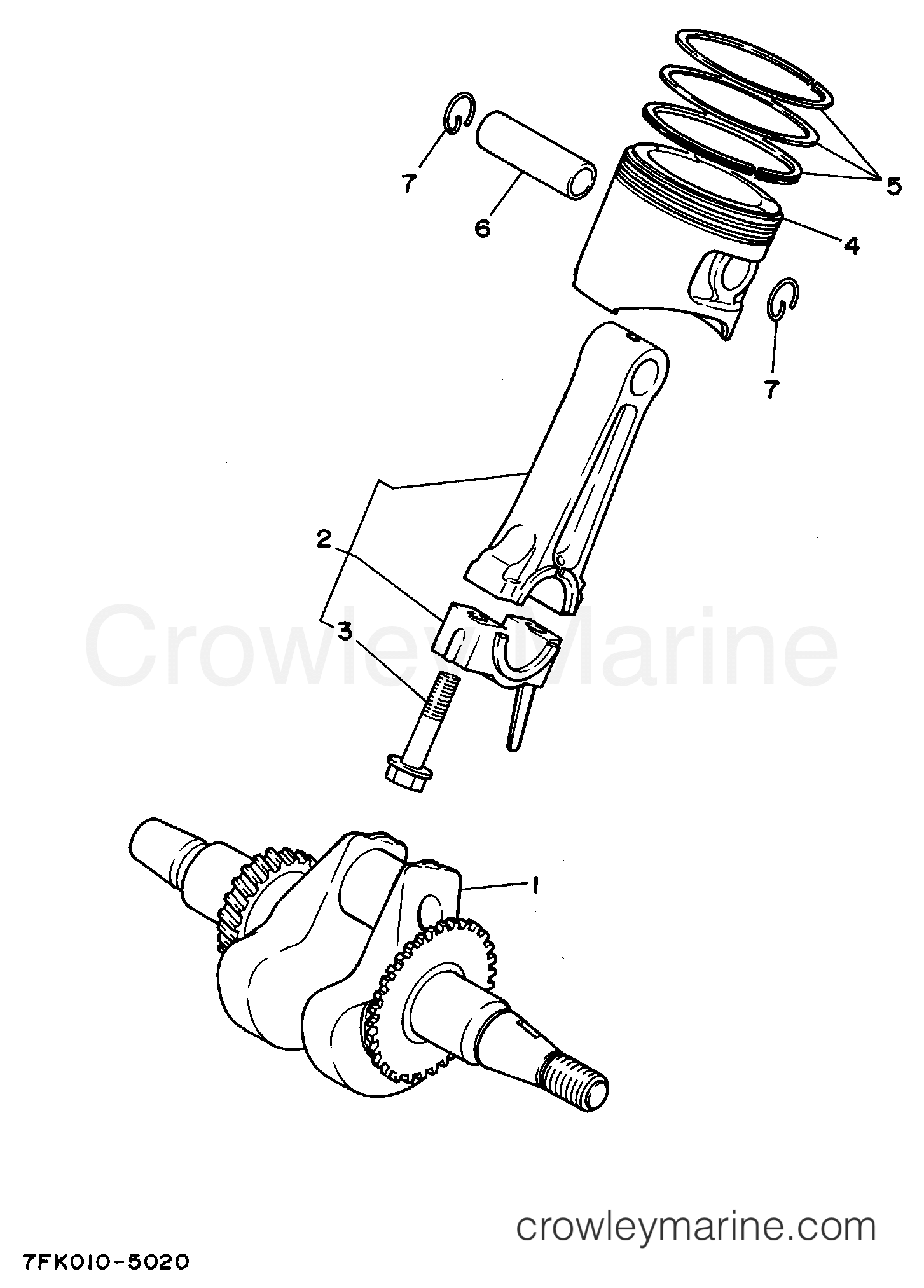

1998 Generator 1000 - EF1000 CRANKSHAFT - PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EF1000 - CRANKSHAFT - PISTON
Change View:
Crankshaft Assembly
1
Yamaha Motors
Crankshaft Assembly7FK-11400-00-00
Required: 1
CRANKSHAFT ASSEMBLY
Cross Ship
Leaves in 2-5 days
$231.99
$197.19
You save $34.80
More details
Connecting Rod Assembly
2
Yamaha Motors
Connecting Rod Assembly7FK-11650-00-00
Required: 1
CONNECTING ROD ASSEMBLY
Cross Ship
Leaves in 2-5 days
$49.99
$42.49
You save $7.50
More details
Connecting Rod Bolt
3
Yamaha Motors
Connecting Rod Bolt7DX-E1654-00-00
Required: 2
.BOLT, CONNECTING ROD
Supersedes: 7FK-11654-00-00
Cross Ship
Leaves in 2-5 days
$4.35
$3.70
You save $0.65
More details
Piston (Standard)
4
Yamaha Motors
Piston (Standard)7FK-11631-09-A0
Required: 1
PISTON (STD)
Cross Ship
Leaves in 2-5 days
$87.99
$74.79
You save $13.20
More details
Piston Ring Set (Standard)
5
Yamaha Motors
Piston Ring Set (Standard)7FK-11610-01-00
Required: 1
PISTON RING SET (STD)
Supersedes: 7FK-11610-00-00
Cross Ship
Leaves in 2-5 days
$50.99
$43.34
You save $7.65
More details
Piston Pin
6
Yamaha Motors
Piston Pin7DX-E1633-00-00
Required: 1
PIN, PISTON
Supersedes: 7FK-11633-00-00
Cross Ship
Leaves in 2-5 days
$3.95
$3.36
You save $0.59
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
