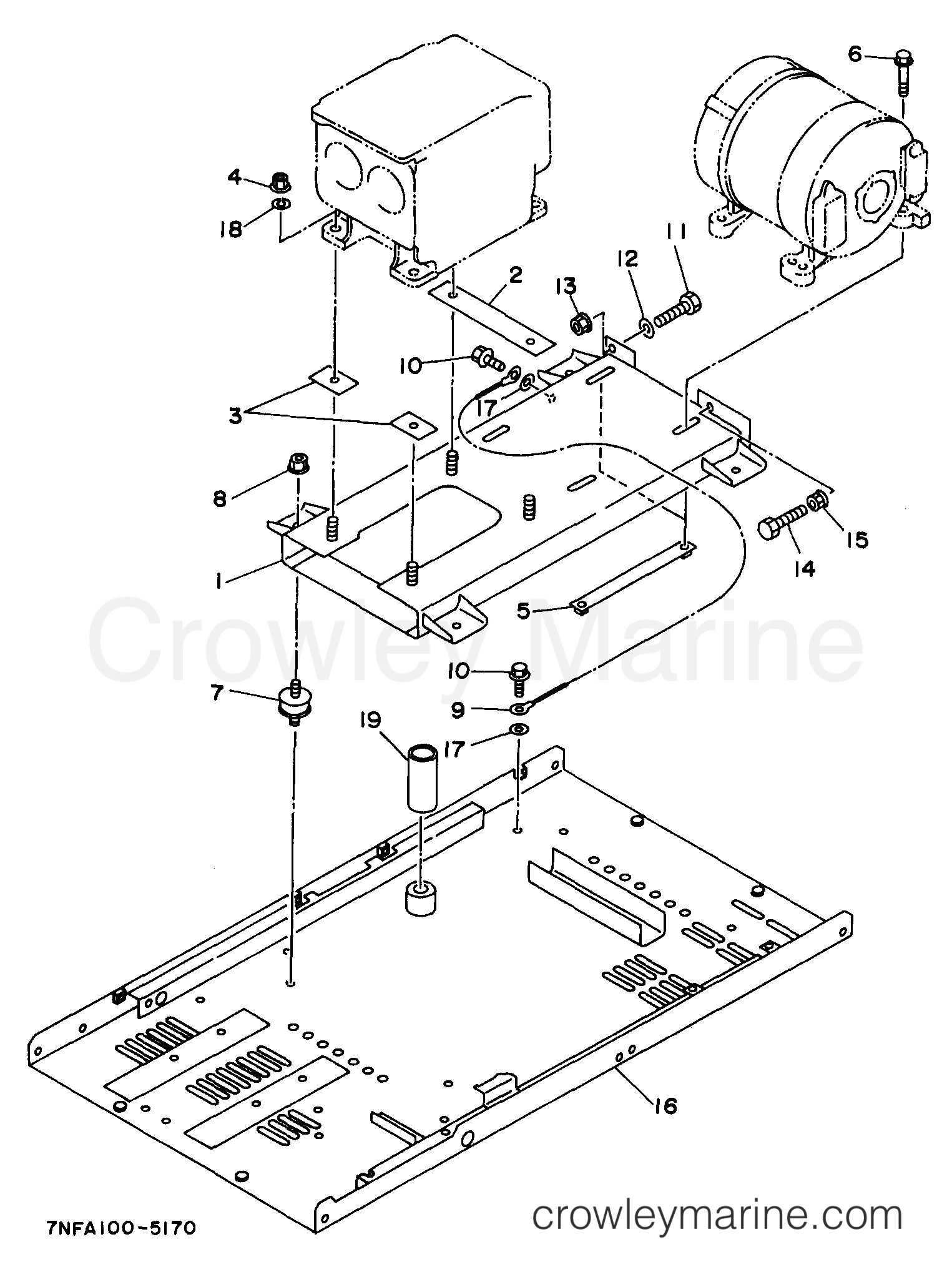

1998 Generator 6500 - EDL6500S ENGINE BASE diagram

1
Yamaha Motors
Engine (Edl6500) BaseYF1-89613-06-93
Required: 1
BASE, ENGINE (EDL6500)
$418.19
You save $73.80

2
Yamaha Motors
Engine (Edl6500) SpacerYF1-89616-03-40
Required: 1
SPACER, ENGINE (EDL6500)
$28.04
You save $4.95

3
Yamaha Motors
Engine (Edl6500) SpacerYF1-89616-03-50
Required: 2
SPACER, ENGINE (EDL6500)
$14.02
You save $2.47
$1.06
You save $0.19

5
Yamaha Motors
Generator Plate (Edl6500)YF1-89613-05-60
Required: 2
PLATE, GENERATOR (EDL6500)
$16.57
You save $2.92
$3.57
You save $0.63
$33.99
You save $6.00
$0.64
You save $0.11

9
Yamaha Motors
Earth (Edl6500) CordYF1-89616-79-10
Required: 1
CORD, EARTH (EDL6500)
$11.47
You save $2.02
$3.15
You save $0.56

11
Yamaha Motors
BOLT (EDL6500)YF0-11525-08-60
Required: 1
BOLT (EDL6500)
$1.83
You save $0.32

12
Yamaha Motors
Obsolete Yamaha PartYF0-40136-00-80
Required: 1
WASHER, PLAIN (YF0-40135-00-80)
Supersedes: YK0-40135-00-80
$3.40
You save $0.60

13
Yamaha Motors
NutYF0-27515-00-80
Required: 1
NUT, FLANGE
$3.36
You save $0.59

14
Yamaha Motors
Bolt (Edl6500)YF0-11555-08-40
Required: 1
BOLT (EDL6500)
$1.32
You save $0.23

15
Yamaha Motors
NutYF0-27515-00-80
Required: 1
NUT, FLANGE
$3.36
You save $0.59
$380.79
You save $67.20

16
Yamaha Motors
Bed Comp. (EDL6500S)YFG-31823-05-52
Required: 1
BED COMP. (EDL6500S)
$606.89
You save $107.10

17
Yamaha Motors
Lock WasherYF0-44135-00-80
Required: 2
WASHER LOCK, TOOTHED (EDL6500)
$0.81
You save $0.14

18
Yamaha Motors
Spring Washer92990-12100-00
Required: 4
WASHER, SPRING
Supersedes: 92901-12100-00
$8.07
You save $1.42

19
Yamaha Motors
Pipe (Edl6500S)YF3-74103-86-22
Required: 1
PIPE (EDL6500S)
$9.77
You save $1.72
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
