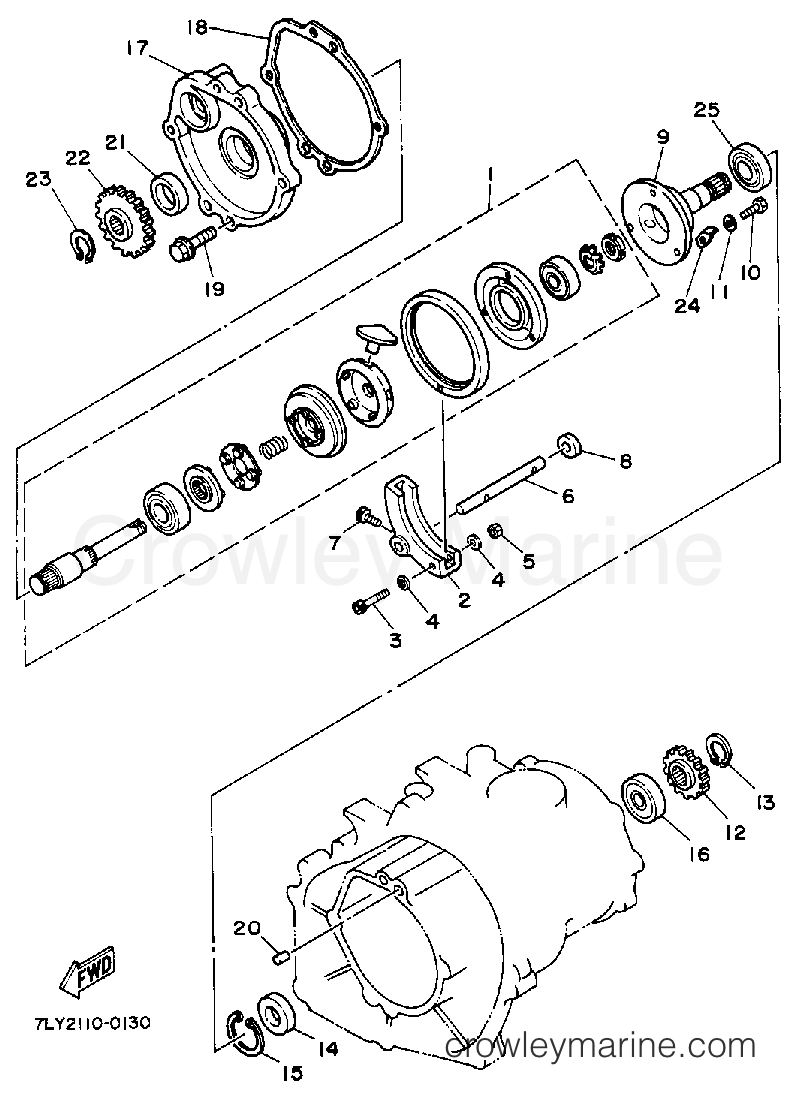

1990 Generator 240 - YS240TB TRANSMISSION 3 diagram

1
Yamaha Motors
Obsolete Yamaha Part7LY-46850-19-00
Required: 1
TRACTION DRIVE ASSEMBLY
Supersedes: 7LY-46850-09-00
$754.79
You save $133.20
$64.72
You save $11.42

3
Yamaha Motors
BOLT90110-04207-00
Required: 1
BOLT (91316-04025-00)
$2.51
You save $0.44
$1.31
You save $-0.21

5
Yamaha Motors
95617-04100-0095607-04100-00
Required: 1
NUT, U
Supersedes: 95601-04100-00
$2.21
You save $0.39

6
Yamaha Motors
Speed Control Spring7LY-46861-01-00
Required: 1
SPRING, SPEED CNTR
$13.59
You save $2.40
$1.33
You save $0.24

8
Yamaha Motors
Sd-Type Oil Seal93102-08424-00
Required: 1
OIL SEAL, SD-TYPE
$5.09
You save $0.90
$197.27
You save $-30.28
$1.50
You save $-0.15

11
Yamaha Motors
Plate Washer92990-05600-00
Required: 3
WASHER
Supersedes: 92901-05600-00
In stock
Only 3 remaining
$0.64
You save $0.16

12
Yamaha Motors
Driven Gear7LY-46332-00-00
Required: 1
GEAR, DRIVEN 1
$18.69
You save $3.30
$3.05
You save $0.54

14
Yamaha Motors
Oil Seal (SW Type)93103-17161-00
Required: 1
OIL SEAL, SW-TYPE
$11.47
You save $2.02
$8.07
You save $1.42
$24.64
You save $4.35

17
Yamaha Motors
Bearing Housing7LY-46358-01-00
Required: 1
HOUSING, BEARING
$62.04
You save $10.95

18
Yamaha Motors
Obsolete Yamaha Part7LY-4635E-10-00
Required: 1
GASKET, HOUSING 1
Supersedes: 7LY-4635E-00-00
$4.39
You save $0.41

19
Yamaha Motors
Flange Bolt95812-06025-00
Required: 4
BOLT, FLANGE
Supersedes: 95811-06025-00
$0.67
You save $0.08
$2.08
You save $0.02

21
Yamaha Motors
Oil Seal93103-20160-00
Required: 1
OIL SEAL, SW-TYPE
$13.17
You save $2.32

22
Yamaha Motors
Counter Gear7LY-46361-00-00
Required: 1
GEAR, COUNTER 1
$25.49
You save $4.50
$3.05
You save $0.54
$5.52
You save $0.97
$29.74
You save $5.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
